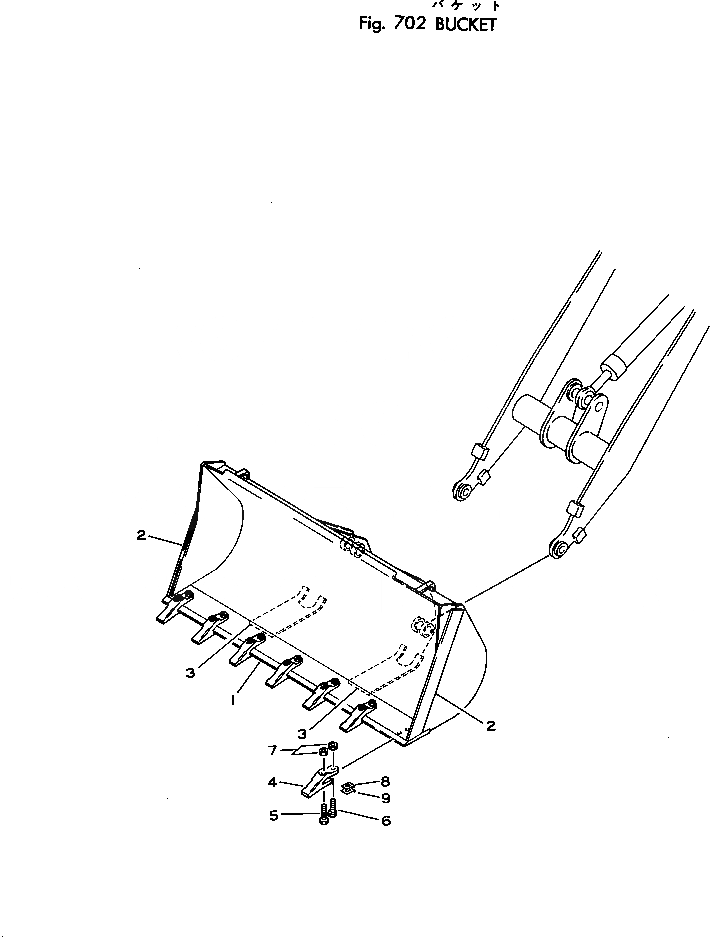

Запчасти Komatsu 507-1 КОВШ РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

385-10158651

BUCKET,0.6M3¤ WITHOUT TOOTH

SN: 50000-50000

1шт.

1

385-10158831

EDGE (WELDED)

SN: 50000-50000

1шт.

2

385-10137991

BLADE (WELDED)

SN: 50000-50000

2шт.

3

385-10138021

PLATE (WELDED)

SN: 50000-50000

2шт.

|1

385-10137972

BUCKET,0.6M3¤ WITH TOOTH

SN: 50000-50000

1шт.

|1

0

BUCKET,0.6M3¤ WITH TOOTH

SN: 50000-50000

1шт.

1

385-10137982

EDGE (WELDED)

SN: 50000-50000

1шт.

|1

0

EDGE (WELDED)

SN: 50000-50000

1шт.

2

385-10137991

BLADE (WELDED)

SN: 50000-50000

2шт.

3

385-10138021

PLATE (WELDED)

SN: 50000-50000

2шт.

|1

385-10158732

BUCKET,0.8M3¤ WITHOUT TOOTH

SN: 50001-UP

1шт.

|1

0

BUCKET,0.8M3¤ WITHOUT TOOTH

SN: 50001-UP

1шт.

1

385-10158841

EDGE (WELDED)

SN: 50001-UP

1шт.

2

385-10135181

BLADE (WELDED)

SN: 50001-UP

2шт.

3

385-10117381

PLATE (WELDED)

SN: 50001-UP

2шт.

|1

385-10117452

BUCKET,0.8M3¤ WITH TOOTH

SN: .-UP

1шт.

|1

0

BUCKET,0.8M3¤ WITH TOOTH

SN: 50001-.

1шт.

1

385-10135172

EDGE (WELDED)

SN: .-UP

1шт.

|1

0

EDGE (WELDED)

SN: 50001-.

1шт.

2

385-10135181

BLADE (WELDED)

SN: 50001-UP

2шт.

3

385-10117381

PLATE (WELDED)

SN: 50001-UP

2шт.

|1

385-10203592

BUCKET,1.0M3¤ WITH TOOTH

SN: 50001-UP

1шт.

|1

0

BUCKET,1.0M3¤ WITH TOOTH

SN: 50001-UP

1шт.

1

385-10135172

EDGE (WELDED)

SN: 50001-UP

1шт.

|1

0

EDGE (WELDED)

SN: 50001-UP

1шт.

2

385-10203631

BLADE (WELDED)

SN: 50001-UP

2шт.

3

385-10203621

PLATE (WELDED)

SN: 50001-UP

2шт.

|4

102-70-00064

TOOTH ASS'Y

SN: 50001-UP

7шт.

4

102-71-21120

TOOTH

SN: 50001-UP

1шт.

5

09208-01660

BOLT

SN: 50001-UP

1шт.

6

09208-01650

BOLT

SN: 50001-UP

1шт.

7

09218-01615

NUT

SN: 50001-UP

2шт.

|8

102-71-05011

SHIM ASS'Y

SN: 50001-UP

7шт.

8

102-71-21140

SHIM¤ 0.5MM

SN: 50001-UP

2шт.

9

102-71-21150

SHIM¤ 1.0MM

SN: 50001-UP

1шт.
