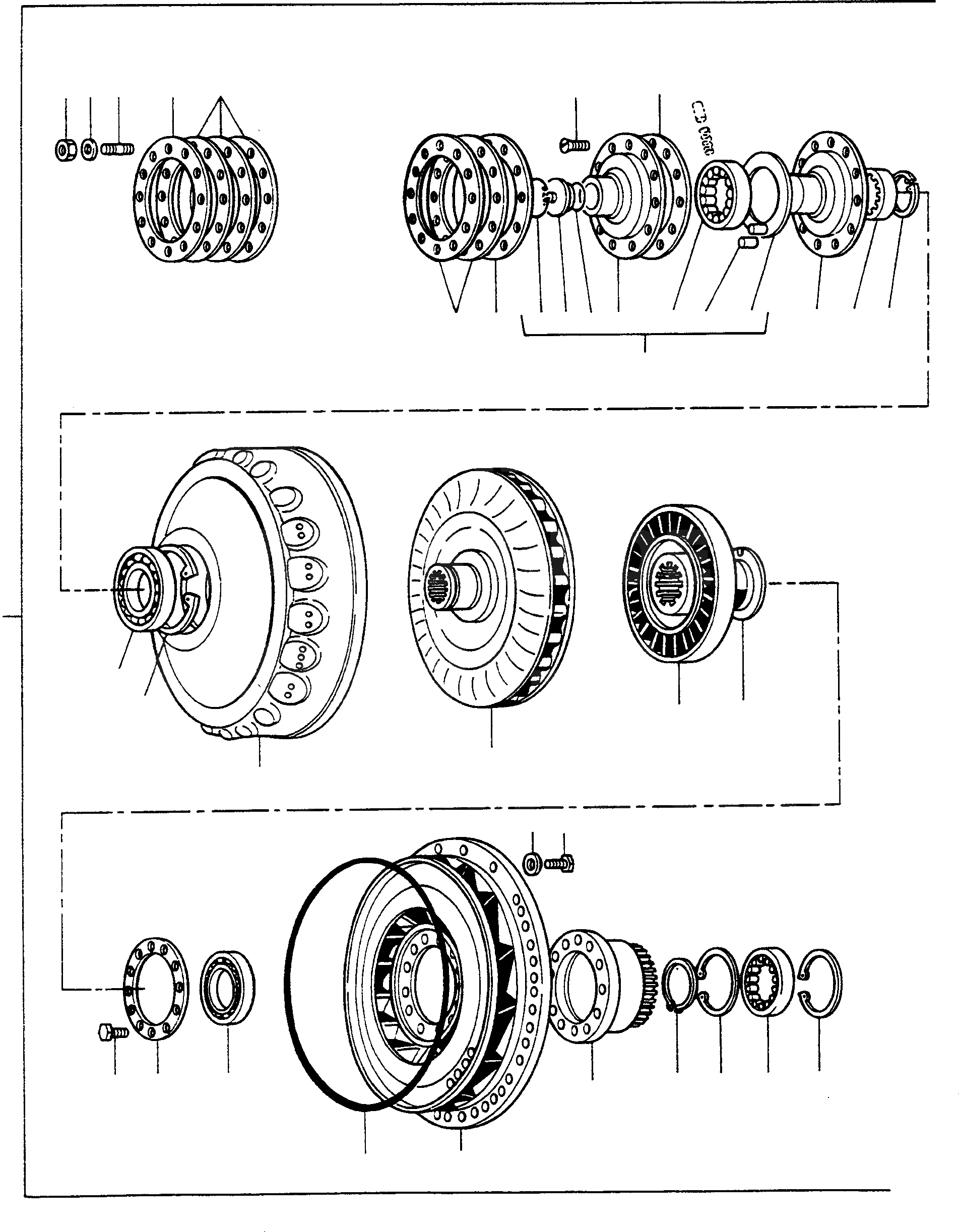

Запчасти Komatsu 44C ГИДРОТРАНСФОРМАТОР ТРАНСМИССИЯ И ЗАДН. МОСТ

1

4400219M91

CONVERTER

EnglischBem: REPAIRS AND REPLACES 3093 738 M92 WITH BRAKE FREE WHEELER

1шт.

2

NOT USED

DeutschDesc: NICHT VERWENDET

-1шт.

3

4400218M91

CONVERTER

EnglischBem: REPAIRS AND REPLACES 3093 737 M92 WITHOUT BRAKE FREE WHEELER

1шт.

4

NOT USED

DeutschDesc: NICHT VERWENDET

-1шт.

5

3004766X1

STUD BOLT

EnglischBem: NOTE: Pos. (5) included in Pos. (1) and (3) Kit

10шт.

6

1443780X1

SPRING PLATE

EnglischBem: NOTE: Pos. (6) included in Pos. (1) and (3) Kit

10шт.

7

339169X1

NUT

EnglischBem: NOTE: Pos. (7) included in Pos. (1) and (3) Kit

10шт.

8

2904239M1

DISC

EnglischBem: NOTE: Pos. (8) included in Pos. (1) and (3) Kit

2шт.

9

2904241M1

DISC

EnglischBem: NOTE: Pos. (9) included in Pos. (1) and (3) Kit

5шт.

10

NOT USED

DeutschDesc: NICHT VERWENDET

-1шт.

11

2976097M91

FREE WHEEL

DeutschDesc: FREILAUF

1шт.

12

390933X1

CIRCLIP

DeutschDesc: SICHERUNGSRING

1шт.

13

2949782M1

COVER

DeutschDesc: DECKEL

1шт.

14

3007154X1

O-RING

DeutschDesc: O-RING

1шт.

15

HUB

EnglischBem: ORDER 2976 097 M91

1шт.

16

ROLLER

EnglischBem: ORDER 2976 097 M91

15шт.

17

FREE WHEEL HUB

EnglischBem: ORDER 2976 097 M91

1шт.

18

3230058M1

DISC

DeutschDesc: SCHEIBE

2шт.

19

3004484X1

PLOUGH BOLT

EnglischBem: NOTE: Pos. (19) included in Pos. (1) and (3) Kit

2шт.

20

2904243M1

GASKET

EnglischBem: NOTE: Pos. (20) included in Pos. (1) and (3) Kit

1шт.

21

2904242M1

HUB

DeutschDesc: NABE

1шт.

22

3232017M1

RING

DeutschDesc: RING

1шт.

23

1443812X1

CIRCLIP

DeutschDesc: SICHERUNGSRING

1шт.

24

1440545X1

BALL BEARING

EnglischBem: NOTE: Pos. (24) included in Pos. (1) and (3) Kit

1шт.

25

339517X1

CIRCLIP

EnglischBem: NOTE: Pos. (25) included in Pos. (1) and (3) Kit

1шт.

26

3241174M1

CONVERTER SHELL

EnglischBem: NOTE: Pos. (26) included in Pos. (1) and (3) Kit

1шт.

27

3230146M1

TURBINE WHEEL

EnglischBem: NOTE: Pos. (27) included in Pos. (1) and (3) Kit

1шт.

28

3232108M1

IDLER

EnglischBem: NOTE: Pos. (28) included in Pos. (1) and (3) Kit

1шт.

29

3232109M1

DISC

EnglischBem: NOTE: Pos. (29) included in Pos. (1) and (3) Kit

1шт.

30

3002002X1

SCREW

EnglischBem: NOTE: Pos. (30) included in Pos. (1) and (3) Kit

12шт.

31

3232018M1

DISC

EnglischBem: NOTE: Pos. (31) included in Pos. (1) and (3) Kit

1шт.

32

339673X1

BALL BEARING

EnglischBem: NOTE: Pos. (32) included in Pos. (1) and (3) Kit

1шт.

33

2995182X1

SEAL

EnglischBem: NOTE: Pos. (33) included in Pos. (1) and (3) Kit

1шт.

34

3230230M1

PUMP GEAR

EnglischBem: REPAIRS AND REPLACES 3230 153 M1 NOTE: Pos. (34) included in Pos

1шт.

35

1443780X1

SPRING PLATE

EnglischBem: NOTE: Pos. (35) included in Pos. (1) and (3) Kit

30шт.

36

3002015X1

SCREW

EnglischBem: NOTE: Pos. (36) included in Pos. (1) and (3) Kit

30шт.

37

2949789M1

FLANGE

EnglischBem: NOTE: Pos. (37) included in Pos. (1) and (3) Kit

1шт.

38

390456X1

CIRCLIP

EnglischBem: NOTE: Pos. (38) included in Pos. (1) and (3) Kit

1шт.

39

339094X1

CIRCLIP

EnglischBem: NOTE: Pos. (39) included in Pos. (1) and (3) Kit

2шт.

40

4919586M1

ROLLER BEARING

EnglischBem: REPAIRS AND REPLACES 3000 869 X1 NOTE: Pos. (40) included in Pos

1шт.
