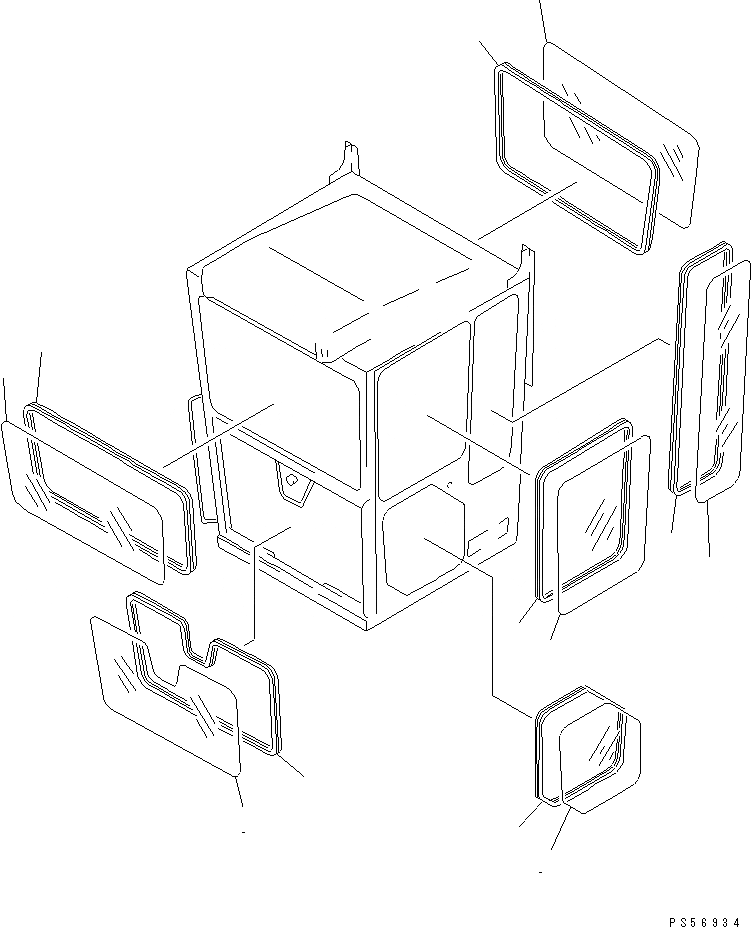

Запчасти Komatsu GD825A-2 КАБИНА (/8) (СТЕКЛА)(№.-) РАМА И ЧАСТИ КОРПУСА

|1

235-957-0212

ROPS CAB ASS'Y,(FULL)

SN: .-UP

1шт.

|1

235-957-0232

ROPS CAB ASS'Y,(LOW)

SN: .-UP

1шт.

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5401B TO 5415A AND 5511.

-1шт.

|1

235-957-0222

STEEL CAB ASS'Y,(FULL)

SN: .-UP

1шт.

|1

235-957-0242

STEEL CAB ASS'Y,(LOW)

SN: .-UP

1шт.

|$$6

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5401B TO 5413.

-1шт.

1

235-950-3710

GLASS,(FULL)

SN: 11001-UP

1шт.

|1

235-950-1640

GLASS,(LOW)

SN: 11001-UP

1шт.

2

09410-40450

STRIP,WEATHER (FULL)

SN: 11001-UP

1шт.

|2

09410-40431

STRIP,WEATHER (LOW)

SN: 11001-UP

1шт.

3

23B-950-5330

GLASS,(FULL)

SN: 11001-UP

1шт.

|3

23C-950-1130

GLASS,(LOW)

SN: 11001-UP

1шт.

4

09410-40415

STRIP,WEATHER

SN: 11001-UP

1шт.

5

235-950-3742

GLASS,(FULL)

SN: 11009-UP

2шт.

|5

235-950-1622

GLASS,(LOW)

SN: 11009-UP

2шт.

6

09410-40388

STRIP,WEATHER (FULL)

SN: 11001-UP

2шт.

|6

09410-40368

STRIP,WEATHER (LOW)

SN: 11001-UP

2шт.

7

235-950-3750

GLASS,(FULL)

SN: 11001-UP

2шт.

|7

235-950-1590

GLASS,(LOW)

SN: 11001-UP

2шт.

8

09410-40328

STRIP,WEATHER (FULL)

SN: 11001-UP

2шт.

|8

09410-40306

STRIP,WEATHER (LOW)

SN: 11001-UP

2шт.

9

235-950-5611

GLASS,(FULL)

SN: .-UP

2шт.

|9

235-950-5511

GLASS,(LOW)

SN: .-UP

2шт.

10

09410-40294

STRIP,WEATHER (FULL)

SN: 11001-UP

2шт.

|10

09410-40308

STRIP,WEATHER (LOW)

SN: 11001-UP

2шт.

11

235-950-3730

GLASS,(FULL)

SN: 11001-UP

1шт.

|11

235-950-1630

GLASS,(LOW)

SN: 11001-UP

1шт.

12

09410-40412

STRIP,WEATHER (FULL)

SN: 11001-UP

1шт.

|12

09410-40402

STRIP,WEATHER (LOW)

SN: 11001-UP

1шт.
