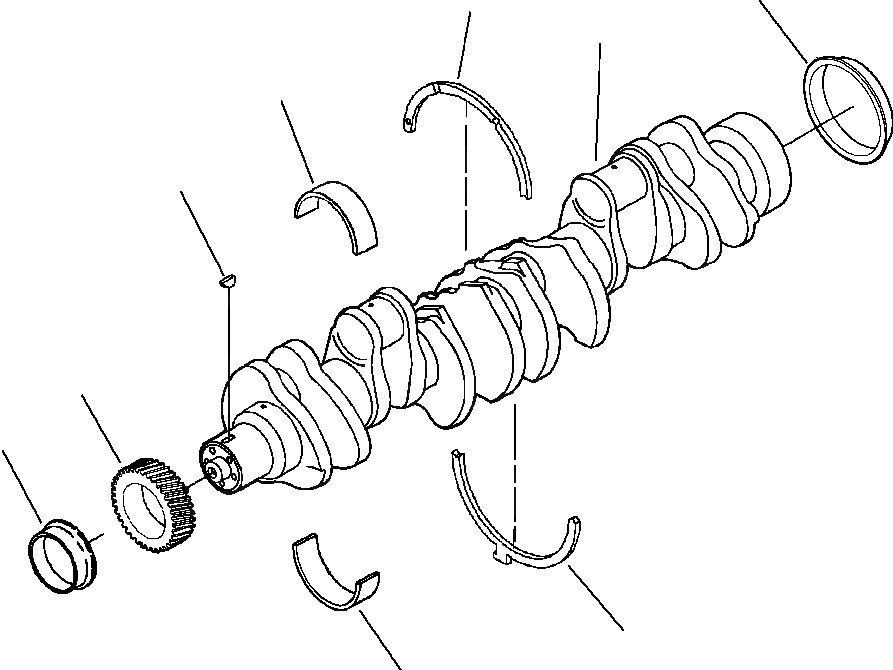

Запчасти Komatsu GD750A-1 КОЛЕНВАЛ БЛОК ЦИЛИНДРОВ

1

1304 956 H1

CRANKSHAFT, ENGINE

1шт.

2

1246 143 H1

KEY, PLAIN WOODRUFF

1шт.

3

1304 957 H1

GEAR, CRANKSHAFT

1шт.

4

1240 556 H1

SLEEVE, WEAR (REAR)

1шт.

5

1296 127 H1

SLEEVE, WEAR (FRONT)

1шт.

|$5

1246 138 H91

SET, MAIN BEARING - STANDARD

1шт.

6

1246 139 H1

BEARING, MAIN - UPPER

7шт.

7

1246 140 H1

BEARING, MAIN - LOWER

7шт.

8

1310 919 H1

BEARING, LOWER THRUST - NO. 4

2шт.

9

1310 920 H1

BEARING, UPPER THRUST - NO. 4

2шт.

|$10

1240 512 H91

SET, MAIN BEARING - .010 IN OVERSIZE

1шт.

6

1240 434 H1

BEARING, MAIN - UPPER

7шт.

7

1240 438 H1

BEARING, MAIN - LOWER

7шт.

8

1310 919 H1

BEARING, LOWER THRUST - NO. 4

2шт.

9

1310 920 H1

BEARING, UPPER THRUST - NO. 4

2шт.

|$15

1240 513 H91

SET, MAIN BEARING - .020 IN OVERSIZE

1шт.

6

1240 435 H1

BEARING, MAIN - UPPER

7шт.

7

1240 439 H1

BEARING, MAIN - LOWER

7шт.

8

1310 919 H1

BEARING, LOWER THRUST - NO. 4

2шт.

9

1310 920 H1

BEARING, UPPER THRUST - NO. 4

2шт.

|$20

1240 514 H91

SET, MAIN BEARING - .030 IN OVERSIZE

1шт.

6

1240 436 H1

BEARING, MAIN - UPPER

7шт.

7

1240 440 H1

BEARING, MAIN - LOWER

7шт.

8

1310 919 H1

BEARING, LOWER THRUST - NO. 4

2шт.

9

1310 920 H1

BEARING, UPPER THRUST - NO. 4

2шт.

|$25

1240 515 H91

SET, MAIN BEARING - .040 IN OVERSIZE

1шт.

6

1240 437 H1

BEARING, MAIN - UPPER

7шт.

7

1240 441 H1

BEARING, MAIN - LOWER

7шт.

8

1310 919 H1

BEARING, LOWER THRUST - NO. 4

2шт.

9

1310 920 H1

BEARING, UPPER THRUST - NO. 4

2шт.

8

1310 921 H1

BEARING, LOWER THRUST - .010 IN OVERSIZE

2шт.

9

1240 479 H2

BEARING, UPPER THRUST - .010 IN OVERSIZE

2шт.
