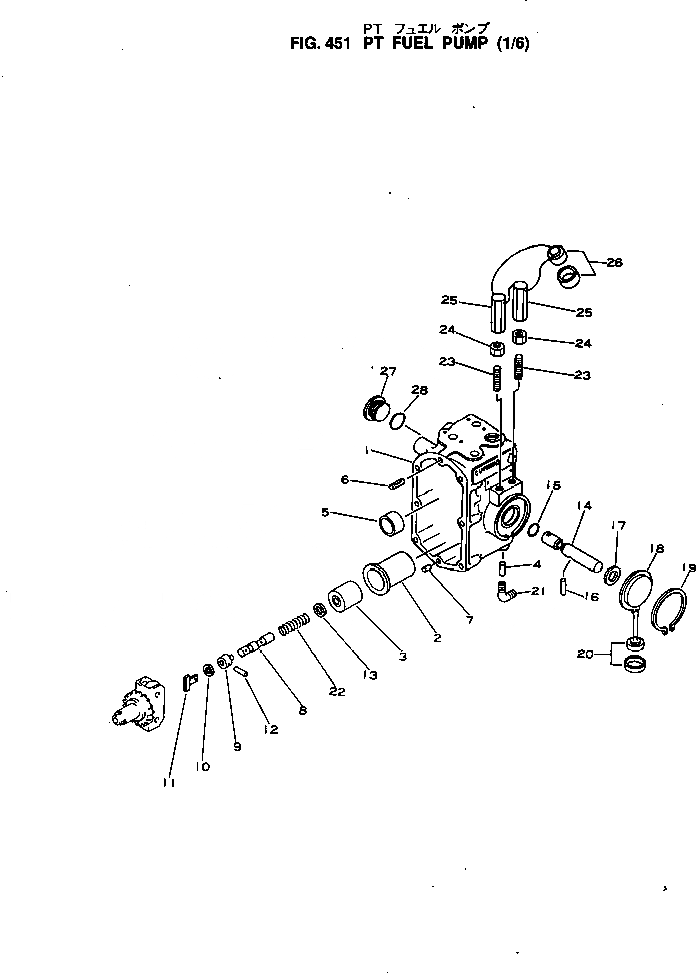

Запчасти Komatsu NTO-6-CI-1H PT ТОПЛИВН. НАСОС (/) ТОПЛИВН. СИСТЕМА

|1

6678-71-1021

PT FUEL PUMP ASS'Y,(GR-J088)

SN: .-UP

1шт.

|1

0

PT FUEL PUMP ASS'Y,(GR-J088)

SN: 143358-.

1шт.

|1

6610-71-1011

HOUSING ASS'Y

SN: 143358-UP

1шт.

|1

6610-71-1020

HOUSING ASS'Y

SN: 143358-UP

1шт.

1

0

HOUSING

SN: 143358-UP

1шт.

|1

0

PLUG

SN: 143358-UP

1шт.

|1

0

SLEEVE,THROTTLE SHAFT

SN: 143358-UP

1шт.

|1

0

SLEEVE,THROTTLE SHAFT

SN: 143358-UP

1шт.

2

0

HOUSING,SPRING PACK

SN: 143358-UP

1шт.

|2

0

BARREL ASS'Y (STD)

SN: 143358-UP

1шт.

|2

0

BARREL ASS'Y,0.25MM (OS)

SN: 143358-UP

1шт.

|2

0

BARREL ASS'Y,0.50MM (OS)

SN: 143358-UP

1шт.

3

0

BARREL (STD)

SN: 143358-UP

1шт.

|3

0

BARREL,0.25MM (OS)

SN: 143358-UP

1шт.

|3

0

BARREL,0.50MM (OS)

SN: 143358-UP

1шт.

|3

0

SLEEVE (STD)

SN: 143358-UP

1шт.

|3

0

SLEEVE,0.25MM (OS)

SN: 143358-UP

1шт.

|3

0

SLEEVE,0.50MM (OS)

SN: 143358-UP

1шт.

4

6610-71-1180

CLIP

SN: 143358-UP

1шт.

5

0

BUSHING,TACHOMETER DRIVE

SN: 143358-UP

1шт.

6

6610-71-1160

PIN,DOWEL

SN: 143358-UP

1шт.

7

6610-71-1150

PIN,DOWEL

SN: 143358-UP

1шт.

|8

6610-71-1041

PLUNGER ASS'Y,RED¤ CLASS 0

SN: 143358-UP

1шт.

|8

6610-79-1041

PLUNGER ASS'Y,BLUE¤ CLASS 1

SN: 143358-UP

1шт.

|8

6610-78-1041

PLUNGER ASS'Y,GREEN¤ CLASS 2

SN: 143358-UP

1шт.

|8

6610-77-1041

PLUNGER ASS'Y,YELLOW¤ CLASS 3

SN: 143358-UP

1шт.

|8

6610-76-1041

PLUNGER ASS'Y,BROWN¤ CLASS 4

SN: 143358-UP

1шт.

|8

6610-75-1041

PLUNGER ASS'Y,BLACK¤ CLASS 5

SN: 143358-UP

1шт.

|8

6610-74-1041

PLUNGER ASS'Y,GRAY¤ CLASS 6

SN: 143358-UP

1шт.

|8

6610-73-1041

PLUNGER ASS'Y,PURPLE¤ CLASS 7

SN: 143358-UP

1шт.

8

6610-71-1411

PLUNGER,RED¤ CLASS 0

SN: 143358-UP

1шт.

|8

6610-79-1411

PLUNGER,BLUE¤ CLASS 1

SN: 143358-UP

1шт.

|8

6610-78-1411

PLUNGER,GREEN¤ CLASS 2

SN: 143358-UP

1шт.

|8

6610-77-1411

PLUNGER,YELLOW¤ CLASS 3

SN: 143358-UP

1шт.

|8

6610-76-1411

PLUNGER,BROWN¤ CLASS 4

SN: 143358-UP

1шт.

|8

6610-75-1411

PLUNGER,BLACK¤ CLASS 5

SN: 143358-UP

1шт.

|8

6610-74-1411

PLUNGER,GRAY¤ CLASS 6

SN: 143358-UP

1шт.

|8

6610-73-1411

PLUNGER,PURPLE¤ CLASS 7

SN: 143358-UP

1шт.

9

6610-71-1452

SPACER,PLUNGER

SN: 143358-UP

1шт.

10

6610-71-1420

WASHER,THRUST

SN: 143358-UP

1шт.

11

6610-71-1430

DRIVE,GOVERNOR PLUNGER

SN: 143358-UP

1шт.

12

6610-71-1440

PIN,GOVERNOR PLUNGER

SN: 143358-UP

1шт.

13

6610-71-1460

SHIM¤ 0.13MM,PLUNGER

SN: 143358-UP

-2шт.

|13

6610-71-1470

SHIM¤ 0.25MM,PLUNGER

SN: 143358-UP

-2шт.

|13

6610-71-1480

SHIM¤ 0.51MM,PLUNGER

SN: 143358-UP

-2шт.

|14

6610-71-1090

SHAFT ASS'Y,THROTTLE¤ RED¤ CLASS 0

SN: 143358-UP

1шт.

|14

6610-79-1090

SHAFT ASS'Y,THROTTLE¤ BLUE¤ CLASS 1

SN: 143358-UP

1шт.

|14

6610-78-1090

SHAFT ASS'Y,THROTTLE¤ GREEN¤ CLASS 2

SN: 143358-UP

1шт.

|14

6610-77-1090

SHAFT ASS'Y,THROTTLE¤ YELLOW¤ CLASS 3

SN: 143358-UP

1шт.

|14

6610-76-1090

SHAFT ASS'Y,THROTTLE¤ BROWN¤ CLASS 4

SN: 143358-UP

1шт.

|14

6610-75-1090

SHAFT ASS'Y,THROTTLE¤ BLACK¤ CLASS 5

SN: 143358-UP

1шт.

14

6610-71-1340

SHAFT,THROTTLE¤ RED¤ CLASS 0

SN: 143358-UP

1шт.

|14

6610-79-1340

SHAFT,THROTTLE¤ BLUE¤ CLASS 1

SN: 143358-UP

1шт.

|14

6610-78-1340

SHAFT,THROTTLE¤ GREEN¤ CLASS 2

SN: 143358-UP

1шт.

|14

6610-77-1340

SHAFT,THROTTLE¤ YELLOW¤ CLASS 3

SN: 143358-UP

1шт.

|14

6610-76-1340

SHAFT,THROTTLE¤ BROWN¤ CLASS 4

SN: 143358-UP

1шт.

|14

6610-75-1340

SHAFT,THROTTLE¤ BLACK¤ CLASS 5

SN: 143358-UP

1шт.

15

6610-71-1320

O-RING (K6)

SN: 143358-UP

1шт.

16

6610-71-1360

PIN,SPRING

SN: 143358-UP

1шт.

17

6610-71-1370

WASHER

SN: 143358-UP

2шт.

18

6610-71-1730

COVER,THROTTLE SHAFT

SN: 143358-UP

1шт.

19

6600-01-3110

RING,SNAP

SN: 143358-UP

1шт.

20

6610-71-1760

SEAL,LEAD

SN: 143358-UP

1шт.

21

6610-81-8820

ELBOW,PRIMING PUMP

SN: 143358-UP

1шт.

22

6610-71-5100

SPRING,TORQUE CONTROL

SN: 143358-UP

1шт.

23

6610-71-1790

SCREW,SET

SN: 143358-UP

2шт.

24

02215-10406

NUT

SN: .-UP

2шт.

|24

0

NUT

SN: 143358-.

2шт.

25

6610-71-3180

NUT

SN: 143358-UP

2шт.

26

6610-71-1760

SEAL,LEAD

SN: 143358-UP

1шт.

27

6610-71-1870

PLUG

SN: 143358-UP

1шт.

28

02891-02018

O-RING (K6)

SN: 143358-UP

1шт.

|1

6678-71-1021

PT FUEL PUMP ASS'Y,(GR-J088)

SN: .-UP

1шт.

|1

0

PT FUEL PUMP ASS'Y,(GR-J088)

SN: 143358-.

1шт.

|1

6610-71-1011

HOUSING ASS'Y

SN: 143358-UP

1шт.

|1

6610-71-1020

HOUSING ASS'Y

SN: 143358-UP

1шт.

1

0

HOUSING

SN: 143358-UP

1шт.

|1

0

PLUG

SN: 143358-UP

1шт.

|1

0

SLEEVE,THROTTLE SHAFT

SN: 143358-UP

1шт.

|1

0

SLEEVE,THROTTLE SHAFT

SN: 143358-UP

1шт.

2

0

HOUSING,SPRING PACK

SN: 143358-UP

1шт.

|2

0

BARREL ASS'Y (STD)

SN: 143358-UP

1шт.

|2

0

BARREL ASS'Y,0.25MM (OS)

SN: 143358-UP

1шт.

|2

0

BARREL ASS'Y,0.50MM (OS)

SN: 143358-UP

1шт.

3

0

BARREL (STD)

SN: 143358-UP

1шт.

|3

0

BARREL,0.25MM (OS)

SN: 143358-UP

1шт.

|3

0

BARREL,0.50MM (OS)

SN: 143358-UP

1шт.

|3

0

SLEEVE (STD)

SN: 143358-UP

1шт.

|3

0

SLEEVE,0.25MM (OS)

SN: 143358-UP

1шт.

|3

0

SLEEVE,0.50MM (OS)

SN: 143358-UP

1шт.

4

6610-71-1180

CLIP

SN: 143358-UP

1шт.

5

0

BUSHING,TACHOMETER DRIVE

SN: 143358-UP

1шт.

6

6610-71-1160

PIN,DOWEL

SN: 143358-UP

1шт.

7

6610-71-1150

PIN,DOWEL

SN: 143358-UP

1шт.

|8

6610-71-1041

PLUNGER ASS'Y,RED¤ CLASS 0

SN: 143358-UP

1шт.

|8

6610-79-1041

PLUNGER ASS'Y,BLUE¤ CLASS 1

SN: 143358-UP

1шт.

|8

6610-78-1041

PLUNGER ASS'Y,GREEN¤ CLASS 2

SN: 143358-UP

1шт.

|8

6610-77-1041

PLUNGER ASS'Y,YELLOW¤ CLASS 3

SN: 143358-UP

1шт.

|8

6610-76-1041

PLUNGER ASS'Y,BROWN¤ CLASS 4

SN: 143358-UP

1шт.

|8

6610-75-1041

PLUNGER ASS'Y,BLACK¤ CLASS 5

SN: 143358-UP

1шт.

|8

6610-74-1041

PLUNGER ASS'Y,GRAY¤ CLASS 6

SN: 143358-UP

1шт.

|8

6610-73-1041

PLUNGER ASS'Y,PURPLE¤ CLASS 7

SN: 143358-UP

1шт.

8

6610-71-1411

PLUNGER,RED¤ CLASS 0

SN: 143358-UP

1шт.

|8

6610-79-1411

PLUNGER,BLUE¤ CLASS 1

SN: 143358-UP

1шт.

|8

6610-78-1411

PLUNGER,GREEN¤ CLASS 2

SN: 143358-UP

1шт.

|8

6610-77-1411

PLUNGER,YELLOW¤ CLASS 3

SN: 143358-UP

1шт.

|8

6610-76-1411

PLUNGER,BROWN¤ CLASS 4

SN: 143358-UP

1шт.

|8

6610-75-1411

PLUNGER,BLACK¤ CLASS 5

SN: 143358-UP

1шт.

|8

6610-74-1411

PLUNGER,GRAY¤ CLASS 6

SN: 143358-UP

1шт.

|8

6610-73-1411

PLUNGER,PURPLE¤ CLASS 7

SN: 143358-UP

1шт.

9

6610-71-1452

SPACER,PLUNGER

SN: 143358-UP

1шт.

10

6610-71-1420

WASHER,THRUST

SN: 143358-UP

1шт.

11

6610-71-1430

DRIVE,GOVERNOR PLUNGER

SN: 143358-UP

1шт.

12

6610-71-1440

PIN,GOVERNOR PLUNGER

SN: 143358-UP

1шт.

13

6610-71-1460

SHIM¤ 0.13MM,PLUNGER

SN: 143358-UP

-2шт.

|13

6610-71-1470

SHIM¤ 0.25MM,PLUNGER

SN: 143358-UP

-2шт.

|13

6610-71-1480

SHIM¤ 0.51MM,PLUNGER

SN: 143358-UP

-2шт.

|14

6610-71-1090

SHAFT ASS'Y,THROTTLE¤ RED¤ CLASS 0

SN: 143358-UP

1шт.

|14

6610-79-1090

SHAFT ASS'Y,THROTTLE¤ BLUE¤ CLASS 1

SN: 143358-UP

1шт.

|14

6610-78-1090

SHAFT ASS'Y,THROTTLE¤ GREEN¤ CLASS 2

SN: 143358-UP

1шт.

|14

6610-77-1090

SHAFT ASS'Y,THROTTLE¤ YELLOW¤ CLASS 3

SN: 143358-UP

1шт.

|14

6610-76-1090

SHAFT ASS'Y,THROTTLE¤ BROWN¤ CLASS 4

SN: 143358-UP

1шт.

|14

6610-75-1090

SHAFT ASS'Y,THROTTLE¤ BLACK¤ CLASS 5

SN: 143358-UP

1шт.

14

6610-71-1340

SHAFT,THROTTLE¤ RED¤ CLASS 0

SN: 143358-UP

1шт.

|14

6610-79-1340

SHAFT,THROTTLE¤ BLUE¤ CLASS 1

SN: 143358-UP

1шт.

|14

6610-78-1340

SHAFT,THROTTLE¤ GREEN¤ CLASS 2

SN: 143358-UP

1шт.

|14

6610-77-1340

SHAFT,THROTTLE¤ YELLOW¤ CLASS 3

SN: 143358-UP

1шт.

|14

6610-76-1340

SHAFT,THROTTLE¤ BROWN¤ CLASS 4

SN: 143358-UP

1шт.

|14

6610-75-1340

SHAFT,THROTTLE¤ BLACK¤ CLASS 5

SN: 143358-UP

1шт.

15

6610-71-1320

O-RING (K6)

SN: 143358-UP

1шт.

16

6610-71-1360

PIN,SPRING

SN: 143358-UP

1шт.

17

6610-71-1370

WASHER

SN: 143358-UP

2шт.

18

6610-71-1730

COVER,THROTTLE SHAFT

SN: 143358-UP

1шт.

19

6600-01-3110

RING,SNAP

SN: 143358-UP

1шт.

20

6610-71-1760

SEAL,LEAD

SN: 143358-UP

1шт.

21

6610-81-8820

ELBOW,PRIMING PUMP

SN: 143358-UP

1шт.

22

6610-71-5100

SPRING,TORQUE CONTROL

SN: 143358-UP

1шт.

23

6610-71-1790

SCREW,SET

SN: 143358-UP

2шт.

24

02215-10406

NUT

SN: .-UP

2шт.

|24

0

NUT

SN: 143358-.

2шт.

25

6610-71-3180

NUT

SN: 143358-UP

2шт.

26

6610-71-1760

SEAL,LEAD

SN: 143358-UP

1шт.

27

6610-71-1870

PLUG

SN: 143358-UP

1шт.

28

02891-02018

O-RING (K6)

SN: 143358-UP

1шт.
