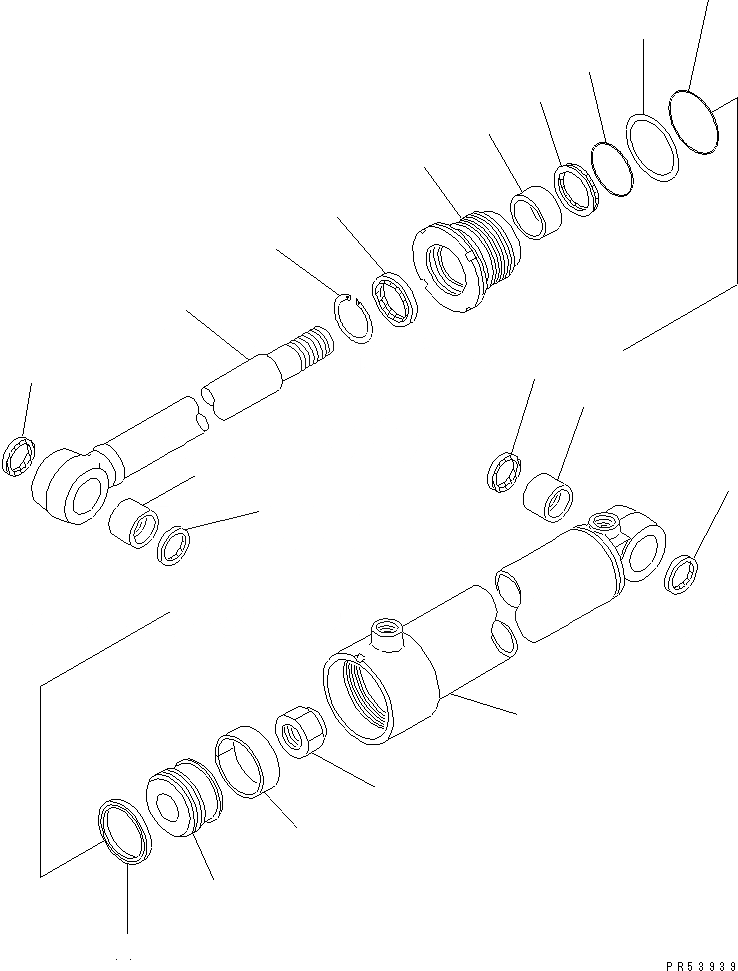

Запчасти Komatsu GD705A-4A-N SCARIFIER ЦИЛИНДР ГИДРАВЛИКА

|1

234-63-32300

CYLINDER ASS'Y,SCARIFIER

SN: 13001-UP

1шт.

1

234-63-32340

CYLINDER

SN: 13001-UP

1шт.

2

07143-10505

BUSHING

SN: 13001-UP

1шт.

3

07145-00050

SEAL,DUST (KIT)

SN: 13001-UP

2шт.

4

707-29-90940

HEAD,CYLINDER

SN: 13001-UP

1шт.

5

07177-05530

BUSHING

SN: 13001-UP

1шт.

6

707-51-55210

PACKING,ROD (KIT)

SN: 13001-UP

1шт.

7

707-56-55510

SEAL,DUST (KIT)

SN: 13001-UP

1шт.

8

07179-12069

RING,SNAP

SN: 13001-UP

1шт.

9

07000-12085

O-RING (KIT)

SN: 13001-UP

1шт.

10

07001-02085

RING,BACK-UP (KIT)

SN: 13001-UP

1шт.

11

07000-12090

O-RING (KIT)

SN: 13001-UP

1шт.

12

234-63-32320

ROD,PISTON

SN: 13001-UP

1шт.

13

07143-10505

BUSHING

SN: 13001-UP

1шт.

14

07145-00050

SEAL,DUST (KIT)

SN: 13001-UP

2шт.

15

707-36-90911

PISTON

SN: 13001-UP

1шт.

16

07155-00925

RING,WEAR (KIT)

SN: 13001-UP

1шт.

17

707-44-90070

RING,PISTON (KIT)

SN: 13001-UP

1шт.

18

07165-13033

NUT

SN: 13001-UP

1шт.

|$$20

SERVICE KIT

-1шт.

KIT

707-98-26490

SERVICE KIT,SCARIFIER CYLINDER

SN: 13001-UP

1шт.
