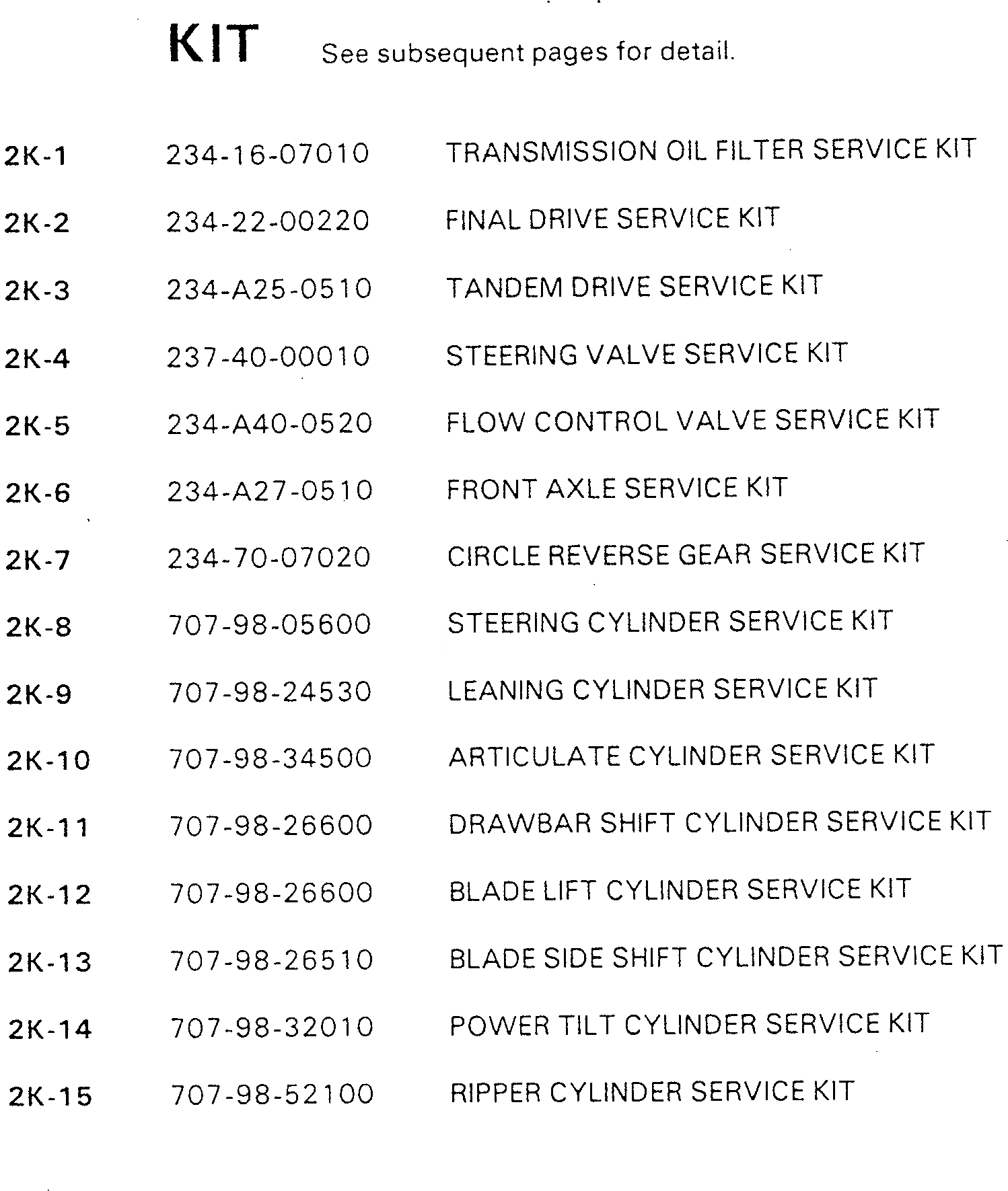

1
234-16-07010
SERVICE KIT,TRANSMISSION OIL FILTER
SN: 21097-UP
1шт.
1
07000-12010
O-RING,BOLT
SN: 21097-UP
1шт.
1
07000-13098
O-RING,FLANGE
SN: 21097-UP
1шт.
2
234-22-00220
SERVICE KIT,FINAL DRIVE
SN: 21097-UP
1шт.
2
234-22-31130
GASKET,SIDE CASE
SN: 21097-UP
2шт.
2
07000-15220
O-RING,RETAINER
SN: 21097-UP
1шт.
2
234-22-31160
GASKET,COVER
SN: 21097-UP
1шт.
2
07012-00110
SEAL,OIL, COVER
SN: 21097-UP
1шт.
2
234-22-31350
O-RING,CAGE
SN: 21097-UP
1шт.
2
234-22-31340
GASKET,COVER
SN: 21097-UP
1шт.
2
234-22-31350
O-RING,COVER
SN: 21097-UP
1шт.
2
07000-15435
O-RING,PLATE
SN: 21097-UP
2шт.
2
234-22-31260
O-RING,CAGE
SN: 21097-UP
2шт.
2
07012-00110
SEAL,OIL, FLANGE
SN: 21097-UP
2шт.
2
07000-15480
O-RING,FLANGE
SN: 21097-UP
2шт.
2
07002-12434
O-RING,COVER
SN: 21097-UP
1шт.
2
234-22-31360
GASKET,COVER
SN: 21097-UP
1шт.
2
07000-12018
O-RING,TUBE
SN: 21097-UP
1шт.
2
07003-03036
GASKET,BREATHER
SN: 21097-UP
1шт.
2
07012-00035
SEAL,OIL, SHAFT
SN: 21097-UP
1шт.
3
234-A25-0510
SERVICE KIT,TANDEM DRIVE
SN: 21097-UP
2шт.
3
07002-12434
O-RING,PLUG
SN: 21097-UP
1шт.
3
234-25-31141
GASKET,COVER
SN: 21097-UP
2шт.
3
07002-12434
O-RING,GAUGE
SN: 21097-UP
2шт.
3
234-25-31170
GASKET,COVER
SN: 21097-UP
4шт.
3
234-A25-1120
SEAL,OIL, CAGE
SN: 21097-UP
1шт.
3
07000-12120
O-RING,SHAFT
SN: 21097-UP
1шт.
3
232-25-51180
O-RING,CAGE
SN: 21097-UP
1шт.
3
232-25-51170
O-RING,PISTON
SN: 21097-UP
1шт.
3
07000-15200
O-RING,CAGE
SN: 21097-UP
1шт.
3
07000-15180
O-RING,CAGE
SN: 21097-UP
1шт.
3
07000-15500
O-RING,SUPPORT
SN: 21097-UP
2шт.
4
237-40-00010
SERVICE KIT,STEERING VALVE
SN: 21097-UP
1шт.
4
0
O-RING,SEAT
SN: 21097-UP
1шт.
4
0
O-RING,SCREW
SN: 21097-UP
1шт.
4
0
SEAL,OIL, HOUSING
SN: 21097-UP
1шт.
4
0
O-RING,BUSHING
SN: 21097-UP
1шт.
4
0
SEAL,DUST, HOUSING
SN: 21097-UP
1шт.
4
0
O-RING,PLATE
SN: 21097-UP
2шт.
4
0
O-RING,CAP
SN: 21097-UP
1шт.
5
234-A40-0520
SERVICE KIT,FLOW CONTROL VALVE
SN: 21097-UP
1шт.
5
234-A40-2620
O-RING,SEAT
SN: 21097-UP
1шт.
5
234-A40-2610
O-RING,PLUG
SN: 21097-UP
1шт.
5
234-A40-2640
O-RING,PLUNGER
SN: 21097-UP
1шт.
5
234-A40-2650
RING,BACK-UP, PLUNGER
SN: 21097-UP
1шт.
5
234-A40-2630
O-RING,CONNECTOR
SN: 21097-UP
1шт.
6
234-A27-0510
SERVICE KIT,FRONT AXLE
SN: 21097-UP
1шт.
6
234-27-31730
SEAL,SHAFT
SN: 21097-UP
4шт.
6
07145-10045
SEAL,DUST, PIN
SN: 21097-UP
8шт.
6
07145-10050
SEAL,DUST, ROD
SN: 21097-UP
4шт.
6
238-25-15130
SEAL,OIL, HOUSING
SN: 21097-UP
2шт.
6
07000-15170
O-RING,CAP
SN: 21097-UP
4шт.
7
234-70-07020
SERVICE KIT,CIRCLE REVERSE GEAR
SN: 21097-UP
1шт.
7
07002-13034
O-RING,PLUG
SN: 21097-UP
2шт.
7
07000-15340
O-RING,COVER
SN: 21097-UP
1шт.
7
07000-15150
O-RING,HOUSING
SN: 21097-UP
1шт.
8
707-98-05600
SERVICE KIT,STEERING CYLINDER
SN: 21097-UP
1шт.
8
707-51-35210
PACKING,ROD
SN: 21097-UP
1шт.
8
175-63-75190
SEAL,DUST, CYLINDER HEAD
SN: 21097-UP
1шт.
8
07000-12060
O-RING,CYLINDER HEAD
SN: 21097-UP
1шт.
8
07001-02060
RING,BACK-UP, CYLINDER HEAD
SN: 21097-UP
1шт.
8
07155-00515
RING,WEAR, PISTON
SN: 21097-UP
1шт.
8
707-44-50180
RING,PISTON
SN: 21097-UP
1шт.
9
707-98-24530
SERVICE KIT,LEANING CYLINDER
SN: 21097-UP
1шт.
9
07145-00050
SEAL,DUST, CYLINDER
SN: 21097-UP
2шт.
9
707-51-45210
PACKING,ROD
SN: 21097-UP
1шт.
9
112-63-15370
SEAL,DUST, CYLINDER HEAD
SN: 21097-UP
1шт.
9
07000-12095
O-RING,CYLINDER HEAD
SN: 21097-UP
1шт.
9
07001-02095
RING,BACK-UP, CYLINDER HEAD
SN: 21097-UP
1шт.
9
07145-00050
SEAL,DUST, ROD
SN: 21097-UP
2шт.
9
07155-00925
RING,WEAR, PISTON
SN: 21097-UP
1шт.
9
707-44-90180
RING,PISTON
SN: 21097-UP
1шт.
10
707-98-34500
SERVICE KIT,ARTICULATE CYLINDER
SN: 21097-UP
1шт.
10
07145-00060
SEAL,DUST, CYLINDER
SN: 21097-UP
2шт.
10
707-51-55211
PACKING,ROD
SN: 21097-UP
1шт.
10
707-56-55510
SEAL,DUST, CYLINDER HEAD
SN: 21097-UP
1шт.
10
07000-12115
O-RING,CYLINDER, HEAD
SN: 21097-UP
1шт.
10
20D-63-32290
RING,BACK-UP, CYLINDER HEAD
SN: 21097-UP
1шт.
10
07145-00060
SEAL,DUST, ROD
SN: 21097-UP
2шт.
10
707-44-11180
RING,PISTON
SN: 21097-UP
1шт.
11
707-98-26600
SERVICE KIT,DRAWBAR SHIFT CYLINDER
SN: 21097-UP
1шт.
11
07141-00100
SEAL,DUST, CYLINDER
SN: 21097-UP
1шт.
11
707-51-55211
PACKING,ROD
SN: 21097-UP
1шт.
11
707-56-55510
SEAL,DUST, CYLINDER HEAD
SN: 21097-UP
1шт.
11
07000-12095
O-RING,CYLINDER HEAD
SN: 21097-UP
1шт.
11
07001-02095
RING,BACK-UP, CYLINDER HEAD
SN: 21097-UP
1шт.
11
07141-00100
SEAL,DUST, ROD
SN: 21097-UP
1шт.
11
07155-00925
RING,WEAR, PISTON
SN: 21097-UP
1шт.
11
707-44-90180
RING,PISTON
SN: 21097-UP
1шт.
12
707-98-26600
SERVICE KIT,BLADE LIFT CYLINDER
SN: 21097-UP
1шт.
12
07141-00100
SEAL,DUST, CYLINDER
SN: 21097-UP
1шт.
12
707-51-55211
PACKING,ROD
SN: 21097-UP
1шт.
12
707-56-55510
SEAL,DUST, CYLINDER HEAD
SN: 21097-UP
1шт.
12
07000-12095
O-RING,CYLINDER, HEAD
SN: 21097-UP
1шт.
12
07001-02095
RING,BACK-UP, CYLINDER HEAD
SN: 21097-UP
1шт.
12
07141-00100
SEAL,DUST, ROD
SN: 21097-UP
1шт.
12
07155-00925
RING,WEAR, PISTON
SN: 21097-UP
1шт.
12
707-44-90180
RING,PISTON
SN: 21097-UP
1шт.
13
707-98-26510
SERVICE KIT,BLADE SIDE SHIFT CYLINDER
SN: 21097-UP
1шт.
13
707-51-55211
PACKING,ROD
SN: 21097-UP
1шт.
13
707-56-55510
SEAL,DUST, CYLINDER HEAD
SN: 21097-UP
1шт.
13
07000-12095
O-RING,CYLINDER HEAD
SN: 21097-UP
1шт.
13
07001-02095
RING,BACK-UP, CYLINDER HEAD
SN: 21097-UP
1шт.
13
07145-00050
SEAL,DUST, ROD
SN: 21097-UP
2шт.
13
07155-00925
RING,WEAR, PISTON
SN: 21097-UP
1шт.
13
707-44-90180
RING,PISTON
SN: 21097-UP
1шт.
14
707-98-32010
SERVICE KIT,POWER TILT CYLINDER
SN: 21097-UP
1шт.
14
707-51-50211
PACKING,ROD
SN: 21097-UP
1шт.
14
176-63-92240
SEAL,DUST, CYLINDER HEAD
SN: 21097-UP
1шт.
14
07000-12105
O-RING,CYLINDER HEAD
SN: 21097-UP
1шт.
14
101-63-81230
RING,BACK-UP, CYLINDER HEAD
SN: 21097-UP
1шт.
14
07155-01025
RING,WEAR, PISTON
SN: 21097-UP
1шт.
14
707-44-10070
RING,PISTON
SN: 21097-UP
1шт.
15
707-98-52100
SERVICE KIT,RIPPER CYLINDER
SN: 21097-UP
1шт.
15
707-51-70211
PACKING,ROD
SN: 21097-UP
1шт.
15
144-63-95170
SEAL,OIL, CYLINDER HEAD
SN: 21097-UP
1шт.
15
07000-12135
O-RING,CYLINDER HEAD
SN: 21097-UP
1шт.
15
07146-02136
RING,BACK-UP, CYLINDER HEAD
SN: 21097-UP
1шт.
15
07145-00075
SEAL,DUST, ROD
SN: 21097-UP
2шт.
15
07155-01435
RING,WEAR, PISTON
SN: 21097-UP
1шт.
15
707-44-14180
RING,PISTON
SN: 21097-UP
1шт.
