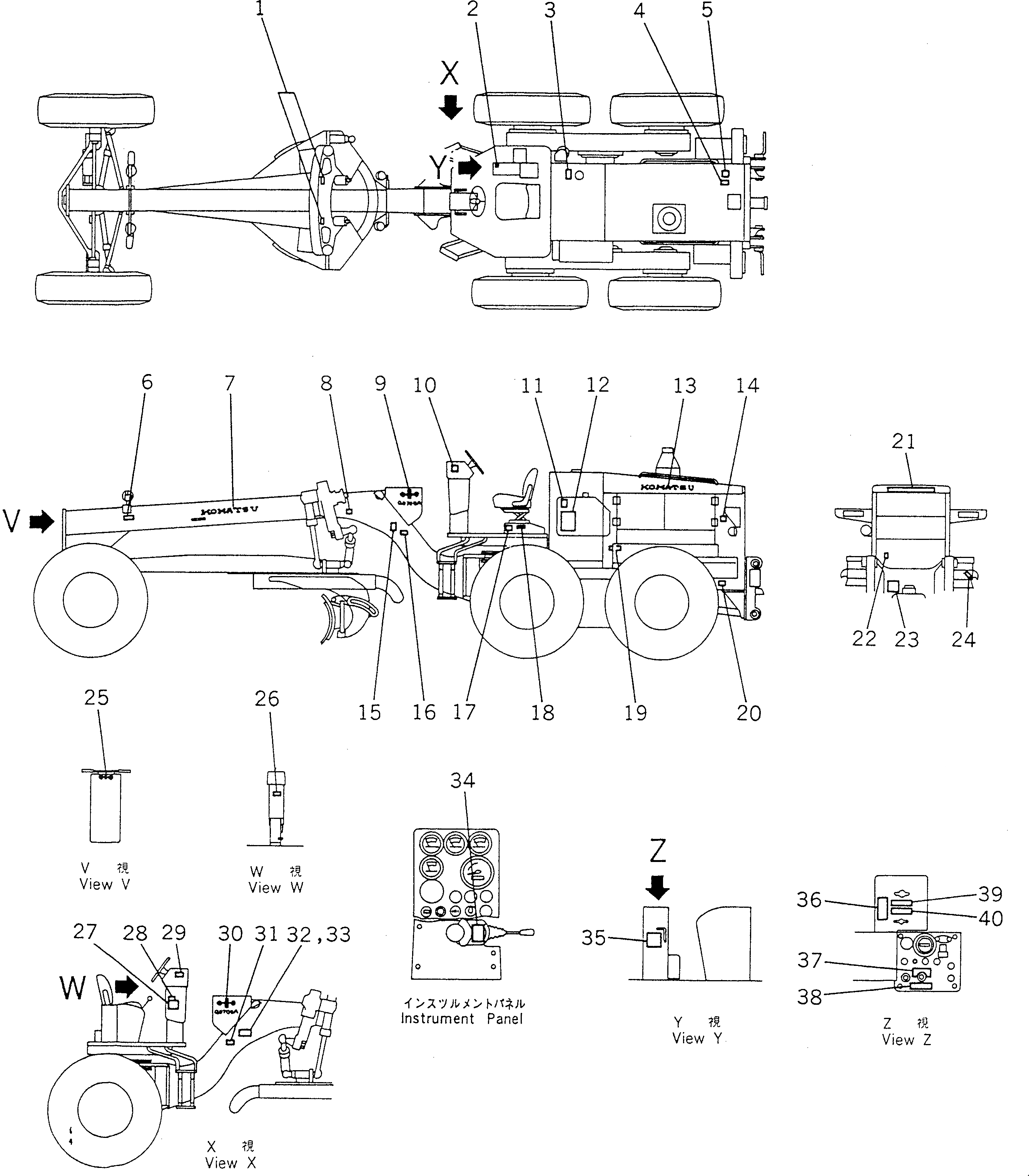

Запчасти Komatsu GD705A-4 МАРКИРОВКА (ДЛЯ РОССИЯ №97-)(№97-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09960-01084

PLATE, MARK,HANDLING

SN: 21097-UP

1шт.

2

236-54-24190

PLATE, OPERATING,ENGINE STOP

SN: 21097-UP

1шт.

3

09101-14000

PLATE, INSTRUCTION,FUEL

SN: 21097-UP

1шт.

4

09650-42112

PLATE, INSTRUCTION,RADIATOR

SN: 21097-UP

1шт.

5

09668-14000

PLATE, SAFETY,RADIATOR CAP

SN: 21097-UP

1шт.

6

234-53-37380

PLATE, CAUTION,STEERING HOSE

SN: 21097-UP

2шт.

7

09690-00710

PLATE, MARK,KOMATSU

SN: 21097-UP

2шт.

8

07843-40064

PLATE, CAUTION,AIR CYLINDER

SN: 21097-UP

2шт.

9

09691-A170N

PLATE, MARK,SYMBOL

SN: 21097-UP

1шт.

10

09163-14000

PLATE, SAFETY,ARTICULATE LOCK

SN: 21097-UP

1шт.

11

09653-14001

PLATE, SAFETY,HYDRAULIC TANK

SN: 21097-UP

1шт.

12

234-53-37250

CHART, OIL

SN: 21097-UP

1шт.

13

09690-00710

PLATE, MARK,KOMATSU

SN: 21097-UP

2шт.

14

09667-14000

PLATE, SAFETY,ENGINE COVER

SN: 21097-UP

2шт.

15

09161-14000

PLATE, SAFETY,ARTICULATE LOCK

SN: 21097-UP

1шт.

16

09162-14000

PLATE, SAFETY,KEEP OUT

SN: 21097-UP

1шт.

17

234-53-37350

PLATE, OPERATING,SEAT

SN: 21097-UP

1шт.

18

234-53-37450

PLATE,HYDRAULIC SPEED

SN: 21097-UP

1шт.

19

09652-40112

PLATE, CAUTION,FUEL TANK

SN: 21097-UP

1шт.

20

09152-14000

PLATE, SAFETY,AIR RESERVOIR

SN: 21097-UP

1шт.

21

234-53-21210

PLATE, MARK,KOMATSU

SN: 21097-UP

1шт.

22

23A-53-26110

TAG

SN: 21097-UP

1шт.

23

234-53-37280

PLATE, MARK,LIFTING

SN: 21097-UP

1шт.

24

09960-01084

PLATE, MARK,HANDLING

SN: 21097-UP

2шт.

25

09694-00200

PLATE, MARK,SYMBOL

SN: 21097-UP

1шт.

26

09649-14001

PLATE, INSTRUCTION,ENGINE STOP

SN: 21097-UP

1шт.

27

09164-14000

PLATE, SAFETY,BEFORE OPERATING

SN: 21097-UP

1шт.

28

09651-14000

PLATE, SAFETY,BEFORE OPERATING

SN: 21097-UP

1шт.

29

234-53-37320

PLATE, SAFETY,BANK PIN

SN: 21097-UP

1шт.

30

09691-A170N

PLATE, MARK,SYMBOL

SN: 21097-UP

1шт.

31

09162-14000

PLATE, SAFETY,KEEP OUT

SN: 21097-UP

1шт.

32

09602-41643

PLATE, NAME,(LIMITED SUPPLY)

SN: 21097-UP

1шт.

33

01220-40406

SCREW

SN: 21097-UP

4шт.

34

234-53-37390

PLATE,TURN SIGNAL

SN: 21097-UP

1шт.

35

23A-53-26130

PLATE, OPERATING,ENGINE CONTROL

SN: 21097-UP

1шт.

36

234-53-37370

PLATE, CAUTION,DIFFERENTIAL LOCK

SN: 21097-UP

1шт.

37

09683-40160

PLATE, OPERATING,STARTING SWITCH

SN: 21097-UP

1шт.

38

236-54-24190

PLATE, OPERATING,ENGINE STOP

SN: 21097-UP

1шт.

39

234-53-37440

PLATE, OPERATING,BANK

SN: 21097-UP

1шт.

40

234-53-37430

PLATE,DIFFERENTIAL LOCK

SN: 21097-UP

1шт.
