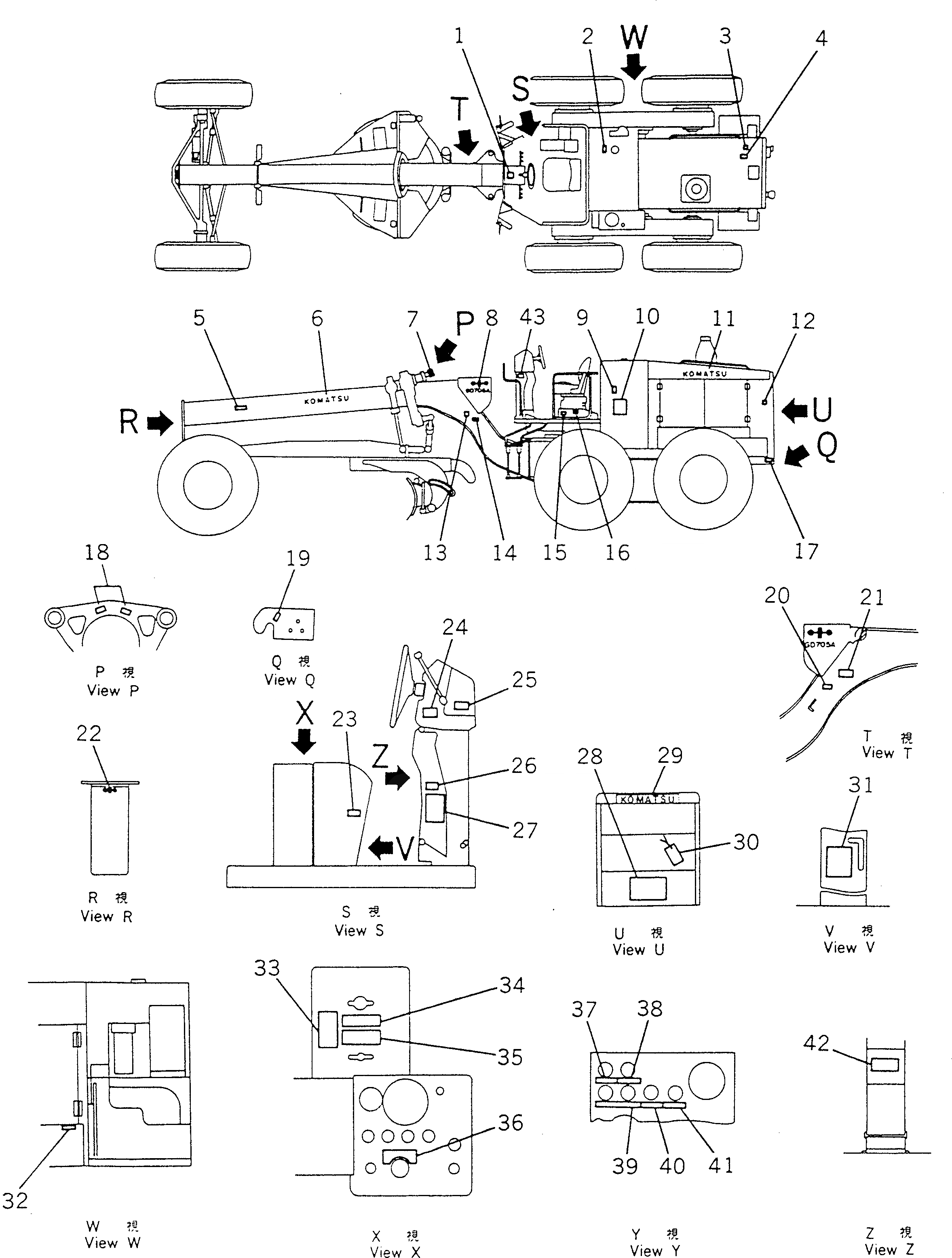

Запчасти Komatsu GD705A-4 МАРКИРОВКА (/) (ДЛЯ КИТАЙ №-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09163-19000

PLATE, SAFETY,ARTICULATE LOCK

SN: 21001-UP

1шт.

2

09101-19000

PLATE, INSTRUCTION,FUEL

SN: 21001-UP

1шт.

3

09668-19000

PLATE, SAFETY,RADIATOR CAP

SN: 21001-UP

1шт.

4

09650-90110

PLATE, INSTRUCTION,RADIATOR

SN: 21001-UP

1шт.

5

232-53-67440

PLATE, CAUTION,STEERING HOSE

SN: 21001-UP

2шт.

6

09690-00710

PLATE, MARK,KOMATSU

SN: 21001-UP

2шт.

7

07843-90064

PLATE, CAUTION,AIR CYLINDER

SN: 21001-UP

2шт.

8

09691-A170N

PLATE, MARK,SYMBOL

SN: 21001-UP

2шт.

9

09653-19000

PLATE, SAFETY,HYDRAULIC OIL TANK

SN: 21001-UP

1шт.

10

234-53-36110

CHART, OIL

SN: 21001-UP

1шт.

11

09690-00710

PLATE, MARK,KOMATSU

SN: 21001-UP

2шт.

12

09667-19000

PLATE, SAFETY,ENGINE COVER

SN: 21001-UP

2шт.

13

09161-19000

PLATE, CAUTION,ARTICULATE LOCK

SN: 21001-UP

1шт.

14

09162-19000

PLATE, SAFETY,KEEP OUT

SN: 21001-UP

1шт.

15

233-53-27360

PLATE

SN: 21001-UP

1шт.

16

234-53-36150

PLATE

SN: 21001-UP

1шт.

17

09152-19000

PLATE, SAFETY,AIR RESERVOIR

SN: 21001-UP

1шт.

18

09960-11084

PLATE, MARK,HANDLING

SN: 21001-UP

2шт.

19

09960-11084

PLATE, MARK,HANDLING

SN: 21001-UP

2шт.

20

09162-19000

PLATE, SAFETY,KEEP OUT

SN: 21001-UP

1шт.

21

09602-91643

PLATE, NAME,(LIMITED SUPPLY)

SN: 21001-UP

1шт.

21

04418-13060

SCREW

SN: 21001-UP

4шт.

22

09694-00200

PLATE, MARK,SYMBOL

SN: 21001-UP

1шт.

23

236-54-24190

PLATE, OPERATING,ENGINE STOP

SN: 21001-UP

1шт.

24

232-53-67450

PLATE, OPERATING

SN: 21001-UP

1шт.

25

234-53-36180

PLATE, SAFETY,BANK PIN

SN: 21001-UP

1шт.

26

09651-19000

PLATE, SAFETY,BEFORE OPERATING

SN: 21001-UP

1шт.

27

09164-19000

PLATE, SAFETY,BEFORE OPERATING

SN: 21001-UP

1шт.

28

232-98-55123

PLATE, MARK,LIFTING

SN: 21001-UP

1шт.

29

234-53-21210

PLATE, MARK,KOMATSU

SN: 21001-UP

1шт.

30

234-53-46120

TAG

SN: 21001-UP

1шт.

31

232-53-67630

PLATE, OPERATING,ENGINE CONTROL

SN: 21001-UP

1шт.

32

09652-90121

PLATE, CAUTION,FUEL TANK

SN: 21001-UP

1шт.

33

234-53-36190

PLATE

SN: 21001-UP

1шт.

34

234-53-36170

PLATE

SN: 21001-UP

1шт.

35

234-53-36160

PLATE

SN: 21001-UP

1шт.

36

09683-90160

PLATE, OPERATING,STARTING SWITCH

SN: 21001-UP

1шт.

37

232-53-67670

PLATE, NAME,ARTICULATE LOCK

SN: 21001-UP

1шт.

38

234-53-36140

PLATE,DIFFERENTIAL LOCK

SN: 21001-UP

1шт.

39

232-53-67410

PLATE,PARKING BRAKE

SN: 21001-UP

1шт.

40

232-53-67430

PLATE,CHARGE

SN: 21001-UP

1шт.

41

234-53-46110

PLATE,ENGINE OIL TEMPERATURE

SN: 21001-UP

1шт.

42

09649-19001

PLATE, INSTRUCTION,ENGINE STOP

SN: 21001-UP

1шт.

43

232-53-67810

PLATE, OPERATING,SCARIFIER

SN: 21001-UP

1шт.
