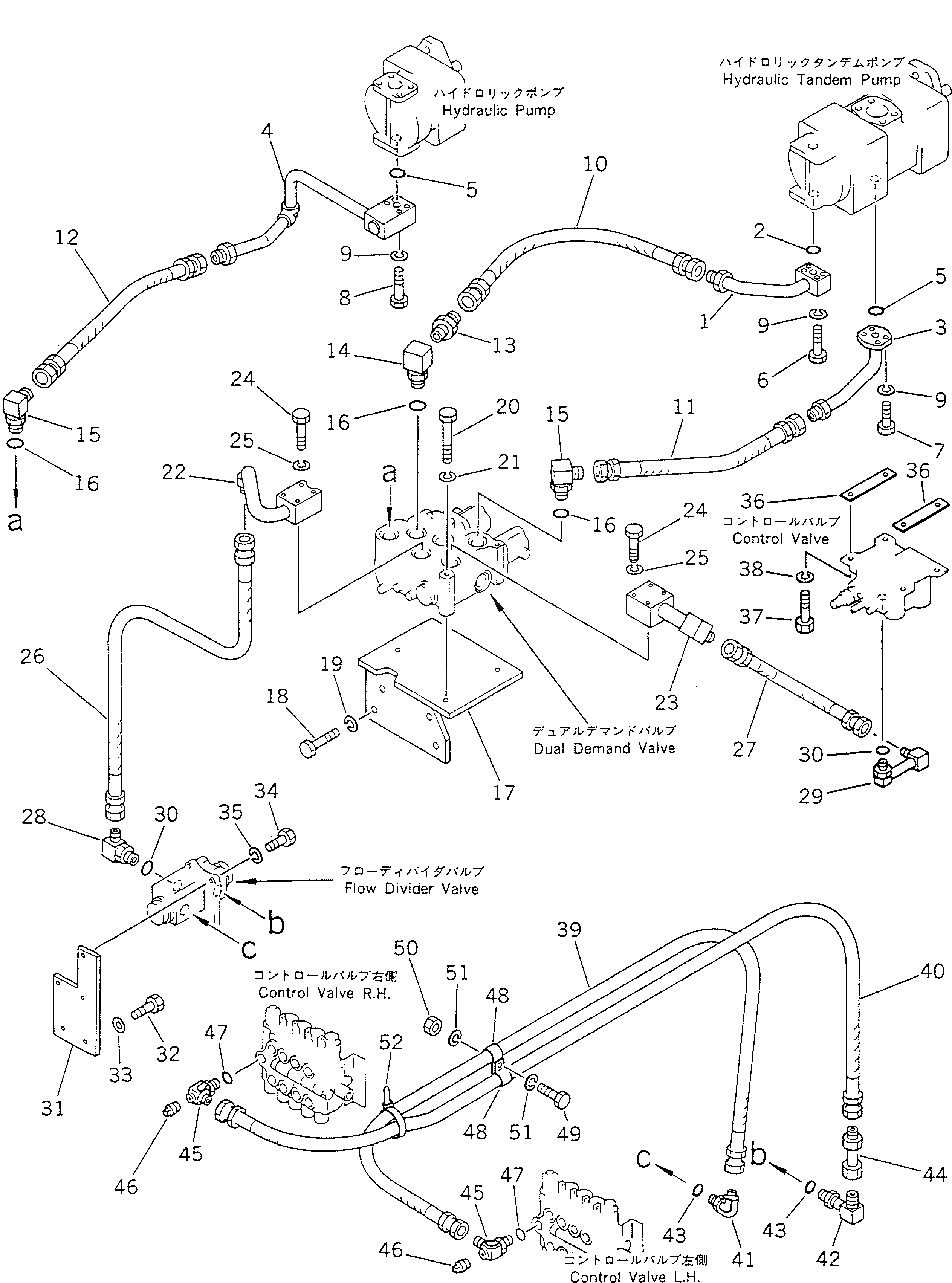

Запчасти Komatsu GD705A-4 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) (/) ГИДРАВЛИКА

1

234-60-32150

TUBE

SN: 21001-UP

1шт.

2

07000-13028

O-RING

SN: 21001-UP

1шт.

3

234-60-32130

TUBE

SN: 21001-UP

1шт.

4

234-60-41121

TUBE

SN: 21001-UP

1шт.

5

07000-13025

O-RING,(FOR CHINESE)

SN: 21001-UP

2шт.

5

07000-23025

O-RING,(FOR RUSSIAN)

SN: 21097-UP

2шт.

6

01010-50860

BOLT

SN: 21001-UP

4шт.

7

01010-50830

BOLT

SN: 21001-UP

4шт.

8

01010-50865

BOLT

SN: 21001-UP

4шт.

9

01602-20825

WASHER,SPRING (FOR CHINESE)

SN: 21001-UP

12шт.

9

01643-30823

WASHER,(FOR RUSSIAN)

SN: 21097-UP

12шт.

10

234-A60-1150

HOSE,(FOR CHINESE)

SN: 21001-UP

1шт.

10

234-60-32770

HOSE,(FOR RUSSIAN)

SN: 21097-UP

1шт.

11

234-A60-1130

HOSE,(FOR CHINESE)

SN: 21001-UP

1шт.

11

234-60-32750

HOSE,(FOR RUSSIAN)

SN: 21097-UP

1шт.

12

234-A60-1140

HOSE,(FOR CHINESE)

SN: 21001-UP

1шт.

12

234-60-32760

HOSE,(FOR RUSSIAN)

SN: 21097-UP

1шт.

13

234-60-32170

NIPPLE

SN: 21001-UP

1шт.

14

234-60-32180

ELBOW

SN: 21001-UP

1шт.

15

234-60-35450

ELBOW

SN: 21001-UP

2шт.

16

07002-13334

O-RING

SN: 21001-UP

3шт.

17

234-60-32490

PLATE

SN: 21001-UP

1шт.

18

01010-51435

BOLT

SN: 21001-UP

4шт.

19

01602-21442

WASHER,SPRING (FOR CHINESE)

SN: 21001-UP

4шт.

19

01643-31445

WASHER,(FOR RUSSIAN)

SN: 21097-UP

4шт.

20

01011-51240

BOLT

SN: 21001-UP

3шт.

21

01602-21236

WASHER,SPRING (FOR CHINESE)

SN: 21001-UP

3шт.

21

01643-31232

WASHER,(FOR RUSSIAN)

SN: 21097-UP

3шт.

22

234-60-32612

TUBE

SN: 21001-UP

1шт.

23

234-60-32580

TUBE

SN: 21001-UP

1шт.

24

01010-51065

BOLT

SN: 21001-UP

8шт.

25

01602-21030

WASHER,SPRING (FOR CHINESE)

SN: 21001-UP

8шт.

25

01643-31032

WASHER,(FOR RUSSIAN)

SN: 21097-UP

8шт.

26

234-A60-1120

HOSE,(FOR CHINESE)

SN: 21001-UP

1шт.

26

234-60-32740

HOSE,(FOR RUSSIAN)

SN: 21097-UP

1шт.

27

234-A60-1130

HOSE,(FOR CHINESE)

SN: 21001-UP

1шт.

27

234-60-32750

HOSE,(FOR RUSSIAN)

SN: 21097-UP

1шт.

28

234-60-35450

ELBOW

SN: 21001-UP

1шт.

29

234-60-32330

TUBE

SN: 21001-UP

1шт.

30

07002-13334

O-RING

SN: 21001-UP

2шт.

31

234-60-32670

PLATE

SN: 21001-UP

1шт.

32

01010-51230

BOLT

SN: 21001-UP

2шт.

33

01643-31232

WASHER

SN: 21001-UP

2шт.

34

01010-51035

BOLT

SN: 21001-UP

3шт.

35

01602-21030

WASHER,SPRING (FOR CHINESE)

SN: 21001-UP

3шт.

35

01643-31032

WASHER,(FOR RUSSIAN)

SN: 21097-UP

3шт.

36

234-A60-1180

SEAT

SN: 21001-UP

2шт.

37

01010-51025

BOLT

SN: 21001-UP

4шт.

38

01602-21030

WASHER,SPRING (FOR CHINESE)

SN: 21001-UP

4шт.

38

01643-31032

WASHER,(FOR RUSSIAN)

SN: 21097-UP

4шт.

39

07123-10615

HOSE,(FOR CHINESE)

SN: 21001-UP

1шт.

39

07123-00615

HOSE,(FOR RUSSIAN)

SN: 21097-UP

1шт.

40

07123-10614

HOSE,(FOR CHINESE)

SN: 21001-UP

1шт.

40

07123-00614

HOSE,(FOR RUSSIAN)

SN: 21097-UP

1шт.

41

07235-10628

ELBOW

SN: 21001-UP

1шт.

42

234-60-32250

ELBOW

SN: 21001-UP

1шт.

43

07002-12434

O-RING

SN: 21001-UP

2шт.

44

234-60-32710

JOINT

SN: 21001-UP

1шт.

45

07235-50628

ELBOW

SN: 21001-UP

2шт.

46

07042-30108

PLUG,(FOR CHINESE)

SN: 21001-UP

2шт.

46

07042-20108

PLUG,(FOR RUSSIAN)

SN: 21097-UP

2шт.

47

07002-12434

O-RING

SN: 21001-UP

2шт.

48

08036-23014

CLIP

SN: 21001-UP

2шт.

49

01010-51025

BOLT

SN: 21001-UP

1шт.

50

01580-11008

NUT

SN: 21001-UP

1шт.

51

01602-21030

WASHER,SPRING (FOR CHINESE)

SN: 21001-UP

2шт.

51

01643-31032

WASHER,(FOR RUSSIAN)

SN: 21097-UP

2шт.

52

08034-00834

BAND

SN: 21001-UP

1шт.
