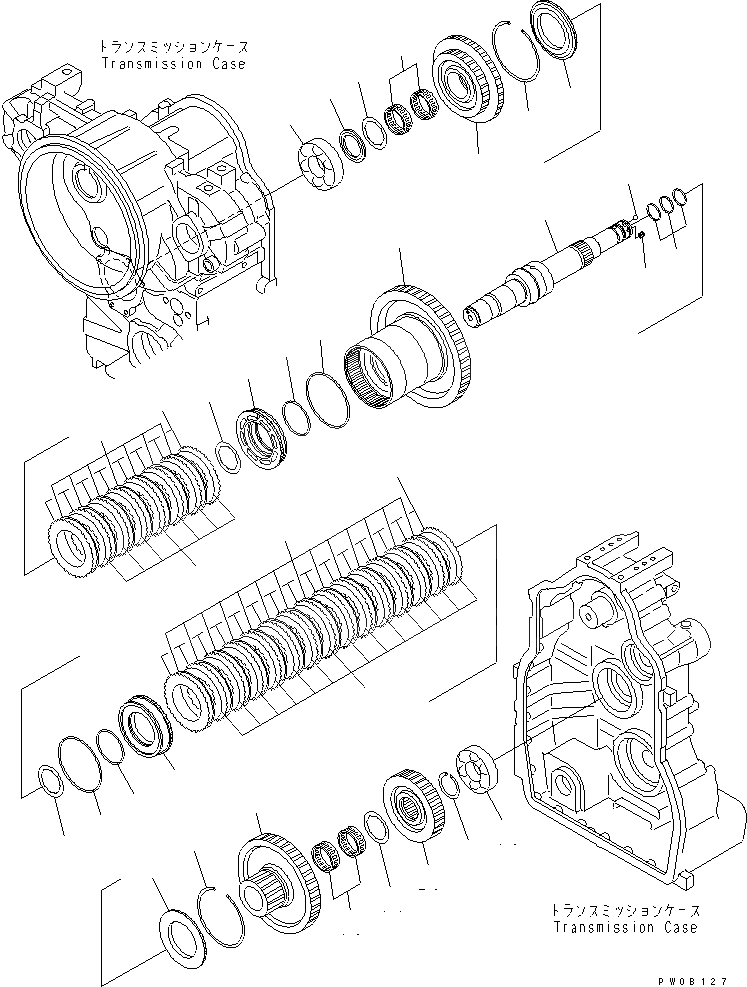

Запчасти Komatsu GD675-3 ТРАНСМИССИЯ (2 И 3 МУФТА) ТРАНСМИССИЯ

|$1

714-23-10001

TRANSMISSION ASS'Y

SN: 51012-UP

1шт.

|$2

714-23-10000

TRANSMISSION ASS'Y

SN: 50001-51011

1шт.

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F5350-51A0 TO F5350-70A0.

-1шт.

|$6

714-23-12033

CLUTCH ASS'Y,2ND AND 3RD

SN: 51012-UP

1шт.

|$7

714-23-12032

CLUTCH ASS'Y,2ND AND 3RD

SN: 50001-51011

1шт.

|$8

714-23-12133

SHAFT AND CYLINDER A,2ND AND 3RD

SN: 51012-UP

1шт.

|$9

714-23-12132

SHAFT AND CYLINDER A,2ND AND 3RD

SN: 50001-51011

1шт.

1

0

SHAFT,LOWER

SN: 50001-UP

1шт.

2

714-11-19390

BALL

SN: 50001-UP

2шт.

3

714-08-12950

ORIFICE

SN: 50001-UP

1шт.

4

0

HOUSING,2ND

SN: 51012-UP

1шт.

4

0

HOUSING,2ND

SN: 50001-51011

1шт.

5

714-23-12690

PISTON,RANGE

SN: 50001-UP

1шт.

6

714-23-12660

PISTON

SN: 50001-UP

1шт.

7

419-15-12140

RING,SNAP

SN: 50001-UP

2шт.

8

714-12-19711

DISC

SN: 50001-UP

21шт.

9

714-16-19730

PLATE,SEPARATE

SN: 50001-UP

23шт.

10

56D-15-12710

SPRING,WAVE

SN: 51012-UP

21шт.

10

0

SPRING,WAVE

SN: 50001-51011

21шт.

11

714-12-12610

PLATE,END

SN: 50001-UP

2шт.

12

714-16-19220

RING

SN: 50001-UP

2шт.

13

714-07-19320

RING,SEAL (K1)

SN: 50001-UP

2шт.

14

714-08-19570

WASHER,THRUST

SN: 50001-UP

4шт.

15

714-23-19430

BEARING,NEEDLE

SN: 50001-UP

4шт.

16

714-23-12710

SPACER,4TH

SN: 50001-UP

1шт.

17

06040-06313

BEARING

SN: 50001-UP

1шт.

18

714-12-19340

BEARING,ROLLER

SN: 50001-UP

1шт.

19

714-23-12451

GEAR,2ND

SN: 50001-UP

1шт.

20

714-23-12540

GEAR,LOWER, OUTPUT

SN: 50001-UP

1шт.

21

714-12-19520

RING,SNAP

SN: 50001-UP

1шт.

22

714-23-12460

GEAR,3RD, 55 TEETH AND 41 TEETH

SN: 50001-UP

1шт.

23

419-15-12122

RING

SN: 50001-UP

3шт.
