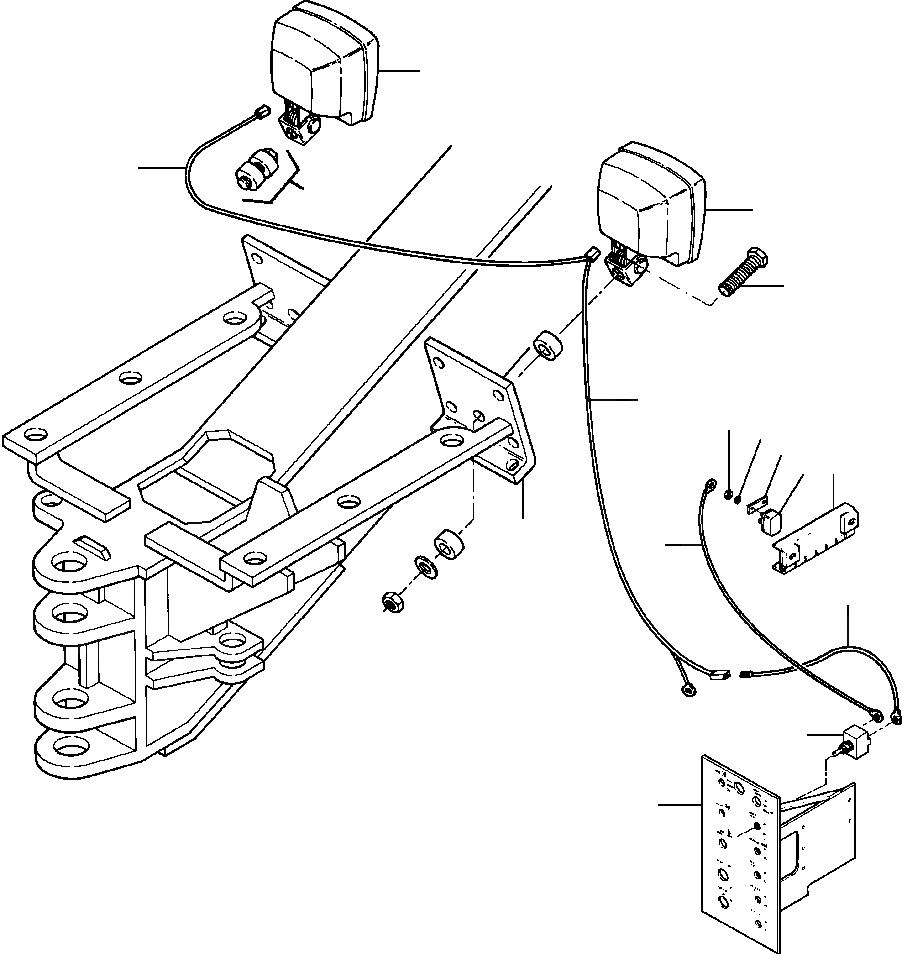

Запчасти Komatsu GD670A-1 ОТВАЛ FLOOD LIGHT УСТАНОВКА HALOGEN ОСВЕЩЕНИЕS ЭЛЕКТР.

|$0

1258 375 H91

INSTALLATION, BLADE FLOOD LIGHT

1шт.

1

LAMP, HALOGEN (SEE PG 08-044)

-29шт.

2

HARDWARE, LAMP MOUNTING (SEE PG 08-044)

-29шт.

3

25 234 R1

BOLT, LAMP MOUNTING

2шт.

4

1260 341 H1

HARNESS, BLADE FLOOD LIGHT

1шт.

5

1259 329 H1

CABLE

1шт.

6

1259 627 H1

CABLE

1шт.

7

714 248 C1

BREAKER, CIRCUIT - 10 AMP

1шт.

8

1106 459 C1

BAR, BUSS

1шт.

9

120 217

WASHER, SPRING LOCK

2шт.

10

120 614

NUT, HEX

2шт.

11

282 437 R91

SWITCH, BLADE FLOOD LIGHT

a

1шт.

|$12

149 160

SWITCH, BLADE FLOOD LIGHT

b

1шт.

12

FRAME (SEE PG 09-002)

-29шт.

13

BRACKET, CIRCUIT BREAKER (SEE PG 11-004)

-29шт.

14

PANEL, CONSOLE SWITCH (SEE PG 11-004)

-29шт.

|$$17

-1шт.

|$17

F1 - REPLACES MOUNTING BOLT INCLUDED WITH

-1шт.

|$18

LAMP ASSEMBLY

-1шт.
