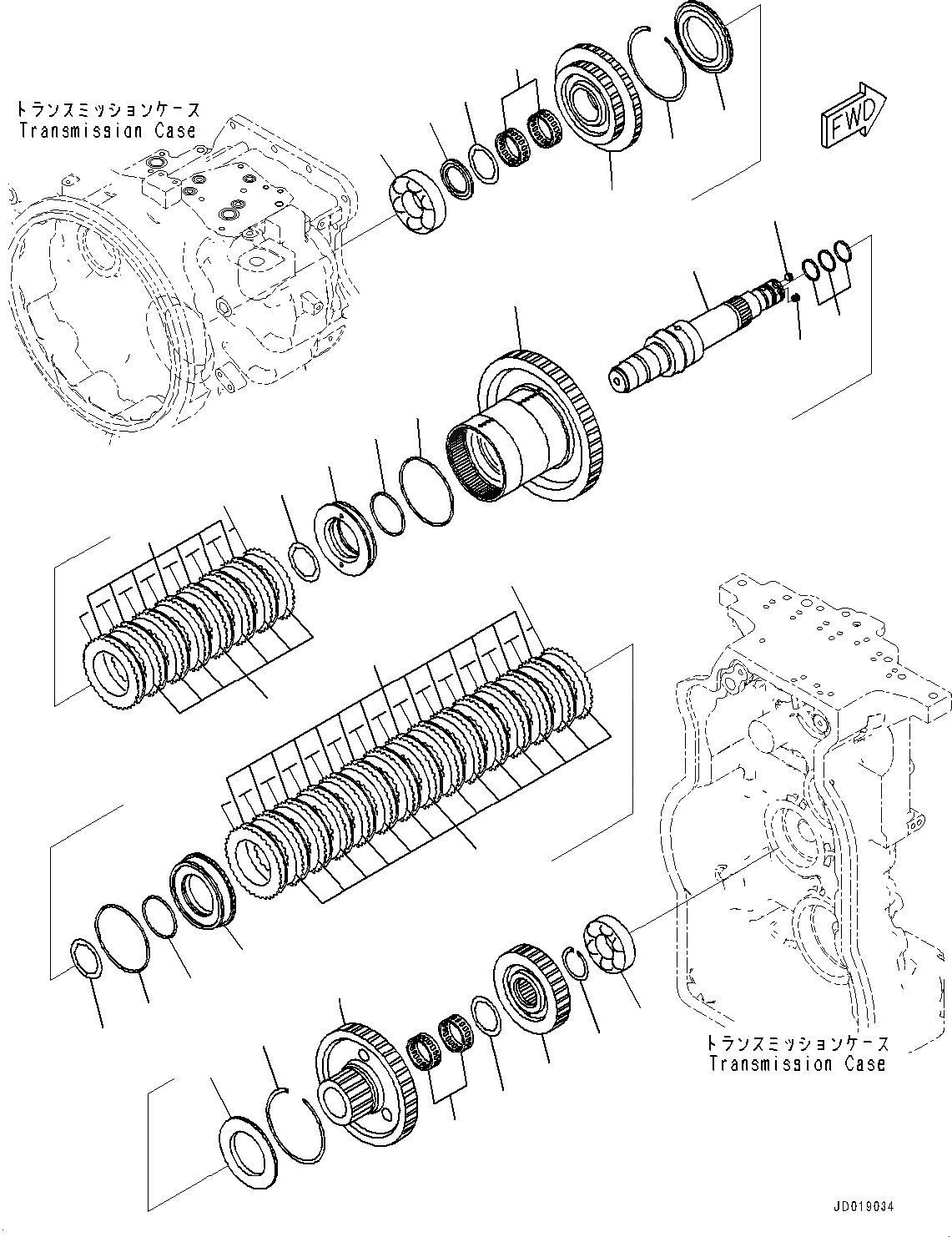

Запчасти Komatsu GD655-5 ТРАНСМИССИЯ, 2 И 3 КОЖУХ ТРАНСМИССИЯ

|1

23B-13-70000

Transmission Assembly

SN: B40001-UP

1шт.

|1

23B-15-72030

Clutch Assembly

SN: B40001-UP

1шт.

|1

23B-15-72132

Shaft and Cylinder Assembly

SN: B40001-UP

1шт.

1

Shaft,Lower

SN: B40001-UP

1шт.

2

56D-15-29790

Plug

SN: B40001-UP

2шт.

3

714-08-12950

Orifice

SN: B40001-UP

1шт.

4

Housing,2nd

SN: B40001-UP

1шт.

5

23B-15-72691

Piston, Range

SN: B40001-UP

1шт.

6

23B-15-72661

Piston, Range

SN: B40001-UP

1шт.

7

419-15-12140

Ring, Snap

SN: B40001-UP

2шт.

8

714-12-19711

Disc, T=2.2mm

SN: B40001-UP

21шт.

9

714-16-19730

Plate, T=1.7mm, Separate

SN: B40001-UP

23шт.

10

56D-15-12710

Spring, Wave

SN: B40001-UP

21шт.

11

714-12-12610

Plate, End

SN: B40001-UP

2шт.

12

714-16-19220

Seal Ring, (Kit : K01)

SN: B40001-UP

2шт.

13

714-07-19320

Seal Ring, (Kit : K01)

SN: B40001-UP

2шт.

14

714-08-19570

Washer, Thrust

SN: B40001-UP

4шт.

15

714-23-19430

Bearing, Needle

SN: B40001-UP

4шт.

16

714-23-12710

Spacer

SN: B40001-UP

1шт.

17

06040-06313

Bearing

SN: B40001-UP

1шт.

18

714-12-19340

Bearing, Roller

SN: B40001-UP

1шт.

19

23B-15-72450

Gear,2nd

SN: B40001-UP

1шт.

20

23B-15-72540

Gear,Lower

SN: B40001-UP

1шт.

21

714-12-19520

Ring

SN: B40001-UP

1шт.

22

714-23-12460

Gear,3rd

SN: B40001-UP

1шт.

23

419-15-12122

Ring, (Kit : K01)

SN: B40001-UP

3шт.
