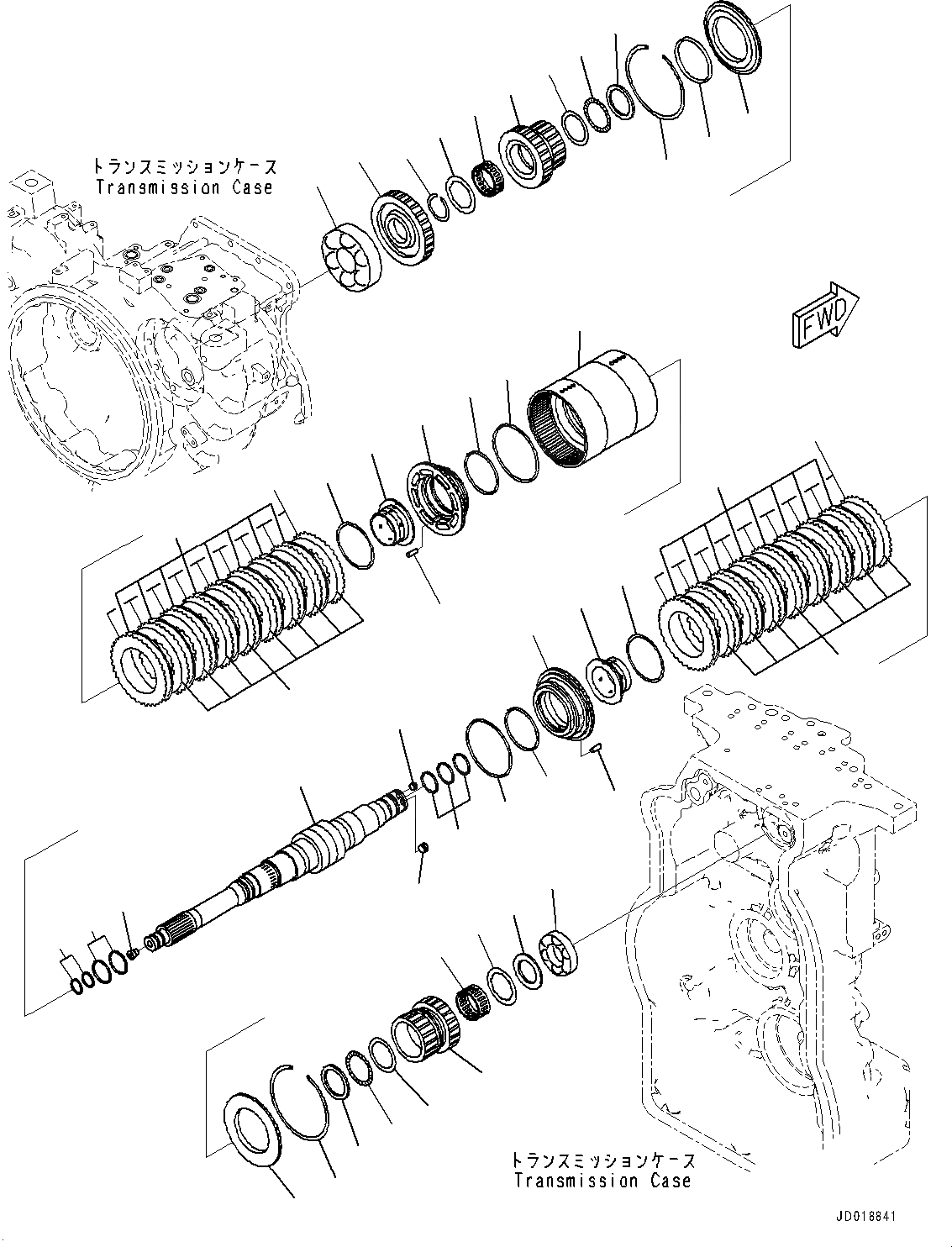

Запчасти Komatsu GD655-5 ТРАНСМИССИЯ, ПЕРЕД. НИЗ. SPEED И РЕВЕРС МУФТА ТРАНСМИССИЯ

|1

23B-13-70000

Transmission Assembly

SN: B40001-UP

1шт.

|1

23B-15-72010

Clutch Assembly

SN: B40001-UP

1шт.

|1

23B-15-72111

Shaft and Cylinder Assembly

SN: B40001-UP

1шт.

1

Shaft,Input

SN: B40001-UP

1шт.

2

Housing

SN: B40001-UP

1шт.

3

56D-15-29790

Plug

SN: B40001-UP

2шт.

4

07043-70211

Plug

SN: B40001-UP

1шт.

5

23B-15-72910

Orifice

SN: B40001-UP

1шт.

6

419-15-12140

Ring, Snap

SN: B40001-UP

2шт.

7

714-23-12640

Piston

SN: B40001-UP

2шт.

8

04020-00514

Pin, Dowel

SN: B40001-UP

4шт.

9

362-15-19520

Ring, Snap

SN: B40001-UP

2шт.

10

714-23-12680

Piston

SN: B40001-UP

2шт.

11

714-12-19711

Disc, T=2.2mm

SN: B40001-UP

16шт.

12

714-16-19730

Plate, T=1.7mm, Separate

SN: B40001-UP

18шт.

13

56D-15-12710

Spring, Wave

SN: B40001-UP

16шт.

14

714-12-12610

Plate, End

SN: B40001-UP

1шт.

15

23B-15-72610

Plate, End

SN: B40001-UP

1шт.

16

714-11-19230

Seal Ring, (Kit : K01)

SN: B40001-UP

2шт.

17

714-07-19320

Seal Ring, (Kit : K01)

SN: B40001-UP

2шт.

18

714-08-19560

Washer, Thrust

SN: B40001-UP

2шт.

19

419-15-12640

Bearing

SN: B40001-UP

2шт.

20

419-15-12650

Washer, Thrust

SN: B40001-UP

2шт.

21

714-12-12760

Washer

SN: B40001-UP

2шт.

22

714-23-19420

Bearing, Needle

SN: B40001-UP

1шт.

23

714-23-19410

Bearing, Needle

SN: B40001-UP

1шт.

24

714-12-12740

Spacer

SN: B40001-UP

1шт.

25

714-23-19320

Bearing

SN: B40001-UP

1шт.

26

714-23-19310

Bearing

SN: B40001-UP

1шт.

27

23B-15-72410

Gear, Forward Low

SN: B40001-UP

1шт.

28

427-15-19220

Ring

SN: B40001-UP

1шт.

29

23B-15-72530

Gear,Input

SN: B40001-UP

1шт.

30

04066-00062

Ring, Snap, for Shaft Side

SN: B40001-UP

1шт.

31

714-23-12420

Gear,Reverse

SN: B40001-UP

1шт.

32

714-12-39230

Seal Ring, (Kit : K01)

SN: B40001-UP

2шт.

33

714-12-39230

Seal Ring, (Kit : K01)

SN: B40001-UP

3шт.

34

714-21-19810

Seal Ring, (Kit : K01)

SN: B40001-UP

2шт.
