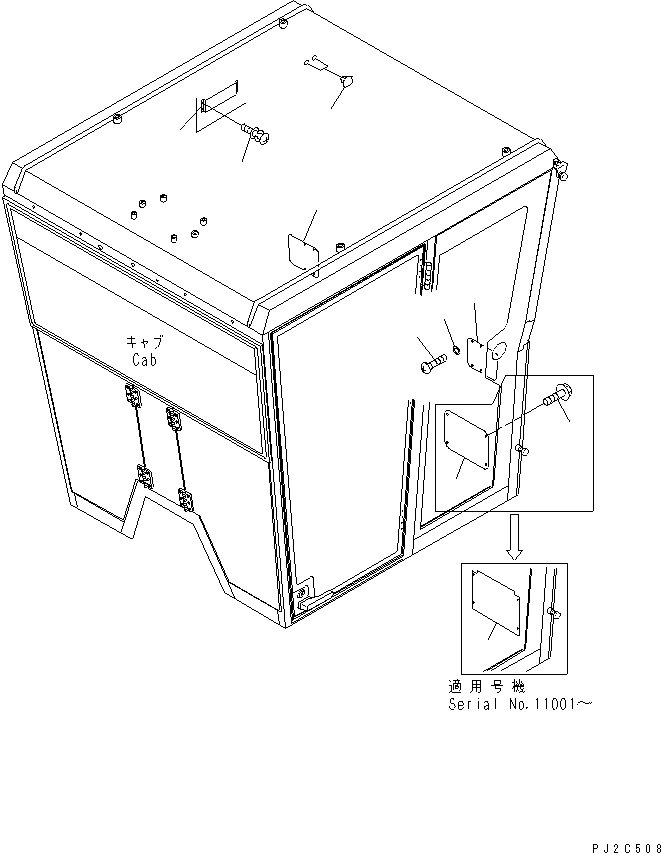

Запчасти Komatsu GD655-3A КАБИНА (ВОЗД.-CON LESS ЧАСТИ) (ВЫС. КАБИНА ROPS) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$10

23B-953-4090

CAB ASS'Y

SN: 11001-UP

1шт.

|$11

23B-953-1011

CAB ASS'Y

SN: 10001-11000

1шт.

|$12

23B-953-5010

CAB ASS'Y,(W/FRONT L. AND REAR WIPER)

SN: 11001-UP

1шт.

|$13

23B-953-1021

CAB ASS'Y,(W/FRONT L. AND REAR WIPER)

SN: 10001-11000

1шт.

|$14

23B-953-5020

CAB ASS'Y,(W/RADIO F/SOUTH AMERICA)

SN: 11001-UP

1шт.

|$15

23B-953-1031

CAB ASS'Y,(W/RADIO F/SOUTH AMERICA)

SN: 10001-11000

1шт.

|$16

23B-953-5030

CAB ASS'Y,(W/RADIO F/ASIA)

SN: 11001-UP

1шт.

|$17

23B-953-1041

CAB ASS'Y,(W/RADIO F/ASIA)

SN: 10001-11000

1шт.

|$18

23B-953-6030

CAB ASS'Y,(WITH HEATER)

SN: 11001-UP

1шт.

|$19

23B-953-3030

CAB ASS'Y,(WITH HEATER)

SN: 10001-11000

1шт.

|$$11

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01B0 TO K0210-17B4.

-1шт.

1

23B-952-1730

PLATE

SN: 10001-UP

2шт.

2

01225-70616

SCREW

SN: 10001-UP

4шт.

3

23S-55-51970

WASHER

SN: 10001-UP

4шт.

4

23B-952-1580

COVER,AIR CONDITIONER

SN: 10001-UP

1шт.

5

01023-70410

SCREW

SN: 10001-UP

4шт.

6

421-54-22990

PLUG

SN: 10001-UP

2шт.

7

23B-807-3510

PLATE

SN: 11001-UP

1шт.

7

23B-952-1220

PLATE

SN: 10001-11000

1шт.

8

01435-40612

BOLT

SN: 10001-11000

4шт.
