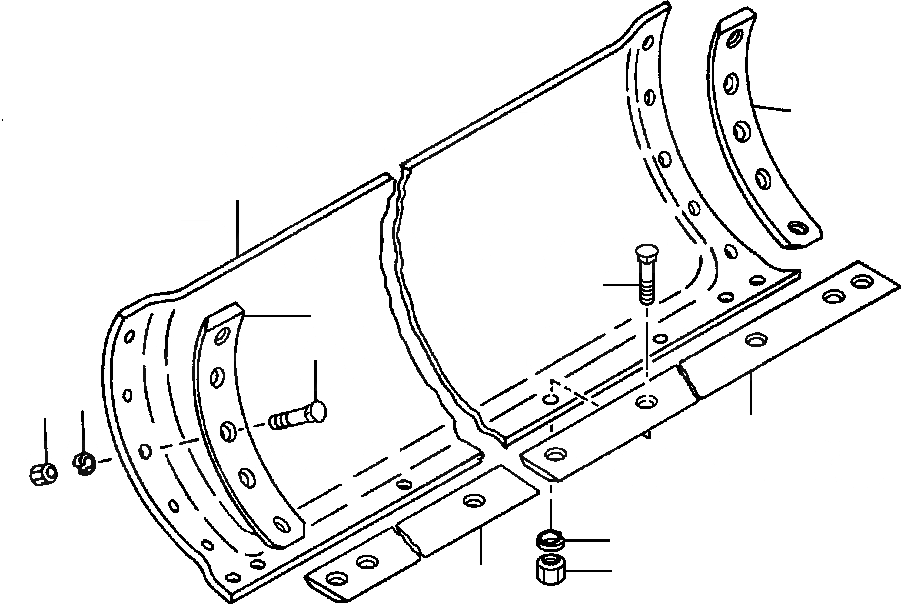

Запчасти Komatsu GD650A 7/8 INCH MOLDBOARD КРЕПЛЕНИЕED ОБОРУД-Е

|$0

1285 693 H91

MOLDBOARD ASSEMBLY - 7/8 IN. X 24 IN. X 12 FT

1шт.

|$1

1285 847 H91

MOLDBOARD ASSEMBLY - 7/8 IN. X 24 IN. X 13 FT

1шт.

|$2

1285 848 H91

MOLDBOARD ASSEMBLY - 7/8 IN. X 24 IN. X 14 FT

1шт.

1

1285 479 H91

MOLDBOARD WELDMENT - 12 FT

1шт.

|$4

1285 852 H91

MOLDBOARD WELDMENT - 13 FT

1шт.

|$5

1285 853 H91

MOLDBOARD WELDMENT - 14 FT

1шт.

2

45 483 A

BOLT, PLOW - DOME HEAD

10шт.

3

25 537 R1

WASHER, FLAT

10шт.

4

25 528 R1

NUT, HEX

10шт.

5

140 199

BIT, REVERSIBLE END - FOR 5/8 IN. CUTTING EDGE

2шт.

|$10

161 320

BIT, REVERSIBLE END - FOR 3/4 IN. CUTTING EDGE

2шт.

6

45 045

EDGE, CUTTING - 5/8 IN. X 6 IN. X 6 FT

-2шт.

|$12

86 333

EDGE, CUTTING - 5/8 IN. X 8 IN. X 6 FT

-2шт.

|$13

1232 966 H1

EDGE, CUTTING - 5/8 IN. X 6 IN. X 6 FT

-2шт.

|$14

161 318

EDGE, CUTTING - 3/4 IN. X 6 IN. X 6 FT

-2шт.

|$15

92 441

EDGE, CUTTING - 3/4 IN. X 8 IN. X 6 FT

-2шт.

|$16

45 046

EDGE, CUTTING - 5/8 IN. X 6 IN. X 7 FT

-2шт.

|$17

121 487

EDGE, CUTTING - 5/8 IN. X 8 IN. X 7 FT

-2шт.

|$18

1278 896 H1

EDGE, CUTTING - 5/8 IN. X 6 IN. X 7 FT

-2шт.

|$19

161 319

EDGE, CUTTING - 3/4 IN. X 6 IN. X 7 FT

-2шт.

7

45 483 A

BOLT, PLOW - DOME HEAD

-2шт.

8

25 537 R1

WASHER, FLAT

-2шт.

9

25 528 R1

NUT, HEX

-2шт.

|$28

-1шт.

|$24

F1 - NOT INCLUDED IN MOLDBOARD ASSEMBLIES; MUST BE ORDERED

-1шт.

|$25

SEPARATELY.

-1шт.

|$29

-1шт.

|$27

F2 - HEAT TREATED.

-1шт.

|$30

-1шт.
