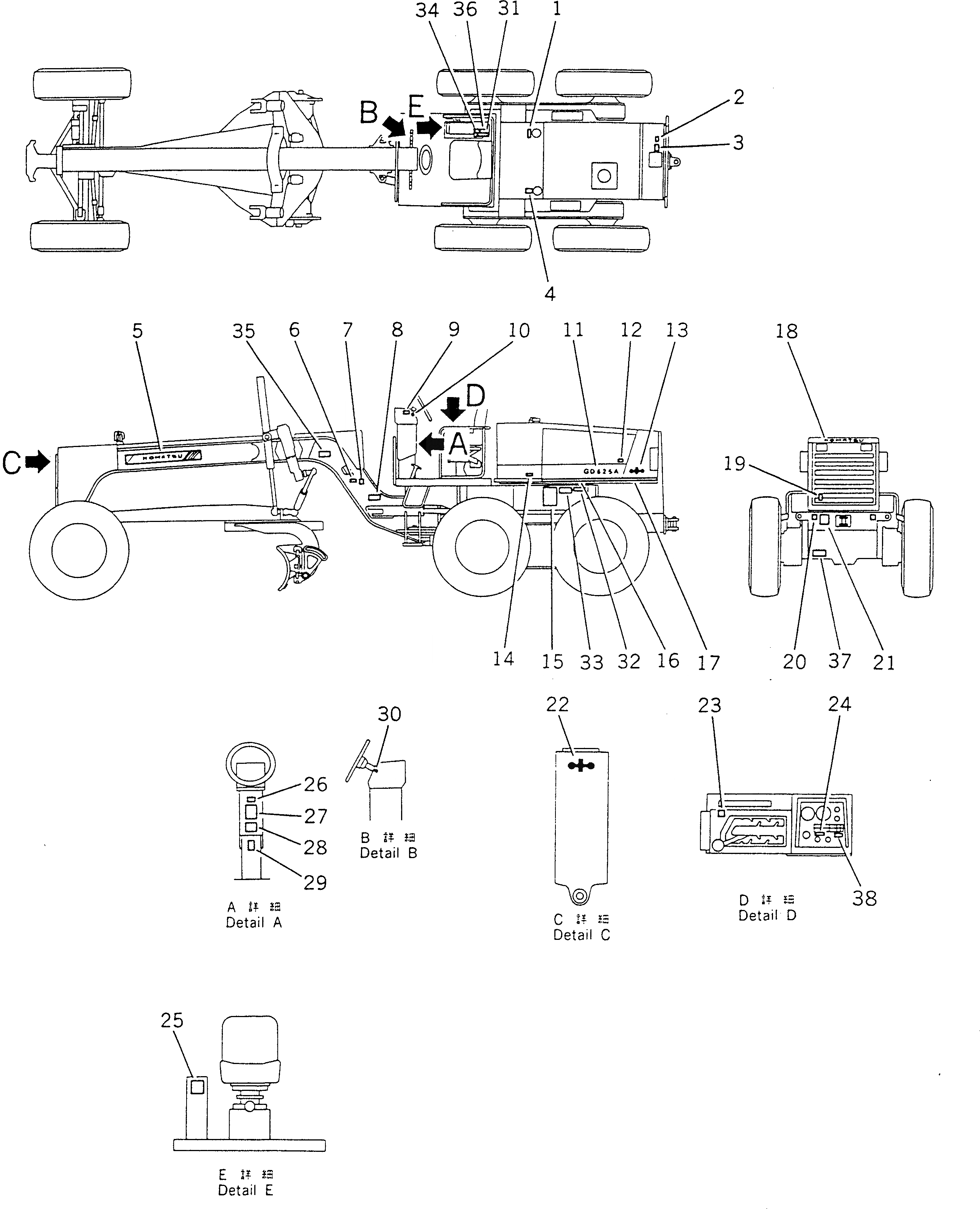

Запчасти Komatsu GD625A-1 МАРКИРОВКА (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09101-13000

PLATE, INSTRUCTION,FUEL

SN: 50001-UP

1шт.

2

09650-30111

PLATE, INSTRUCTION,WATER LEVEL

SN: 50001-UP

1шт.

3

09668-13000

PLATE, SAFETY,RADIATOR CAP

SN: 50001-UP

1шт.

4

09653-13000

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 50001-UP

1шт.

5

09690-10630

PLATE, MARK,KOMATSU

SN: 50001-UP

2шт.

6

09162-13000

PLATE, SAFETY,KEEP OUT

SN: 50001-UP

1шт.

7

09161-13000

PLATE, CAUTION,ARTICULATE LOCK

SN: 50001-UP

1шт.

8

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

SN: 50001-UP

1шт.

8

04418-13060

SCREW

SN: 50001-UP

4шт.

9

232-53-62780

PLATE, SAFETY,BANK PIN

SN: 50001-UP

1шт.

10

235-53-11610

PLATE, OPERATING,HEAD LAMP L/H

SN: 50001-UP

1шт.

11

23B-53-11430

PLATE, MARK,GD625A

SN: 50001-UP

2шт.

12

09667-13000

PLATE, SAFETY,ENGINE COVER

SN: 50001-UP

2шт.

13

09694-10250

PLATE, MARK,SYMBOL

SN: 50001-UP

2шт.

14

09652-30111

PLATE, CAUTION,WATER DRAIN

SN: 50001-UP

1шт.

15

23B-53-12110

CHART, OIL

SN: 50001-UP

1шт.

16

23B-53-11570

STRIPE

SN: 50001-UP

2шт.

17

23B-53-11580

STRIPE

SN: 50001-UP

2шт.

18

09690-10450

PLATE, MARK,KOMATSU

SN: 50001-UP

1шт.

19

234-53-32340

TAG

SN: 50001-UP

1шт.

20

09960-11084

PLATE, MARK HANDLING,HANDING

SN: 50001-UP

4шт.

21

232-98-55124

PLATE, MARK,LIFTING

SN: 50001-UP

1шт.

22

09694-00200

PLATE, MARK,SYMBOL

SN: 50001-UP

1шт.

23

236-54-24190

PLATE, OPERATING,ENGINE STOP

SN: 50001-UP

1шт.

24

23A-53-12121

PLATE, OPERATING,BANK PIN

SN: 50001-UP

1шт.

25

232-53-62720

PLATE, CAUTION,TRANSMISSION LEVER

SN: 50001-UP

1шт.

26

09651-13000

PLATE, SAFETY,BEFORE OPERATING

SN: 50001-UP

1шт.

27

09164-13000

PLATE, SAFETY,AFTER OPERATING

SN: 50001-UP

1шт.

28

23B-53-12140

PLATE, CAUTION,DRIVING

SN: 50001-UP

1шт.

29

234-53-32310

PLATE, SAFETY

SN: 50001-UP

1шт.

30

23A-53-11550

PLATE, OPERATING,TURN SIGNAL

SN: 50001-UP

1шт.

31

09649-13001

PLATE, INSTRUCTION,ENGINE STOP

SN: 50001-UP

1шт.

32

09664-30065

PLATE, INSTRUCTION,BATTERY

SN: 50001-UP

1шт.

33

09664-30081

PLATE, INSTRUCTION,BATTERY

SN: 50001-UP

1шт.

34

09683-30160

PLATE, OPERATING

SN: 50001-UP

1шт.

35

07843-30064

PLATE, CAUTION,START

SN: 50001-UP

1шт.

36

23E-53-11320

PLATE, OPERATING

SN: 50001-UP

1шт.

37

09152-13000

PLATE, SAFETY,AIR RESERVOIR

SN: 50001-UP

1шт.

38

234-53-19150

PLATE,OPERATING

SN: 50001-UP

1шт.
