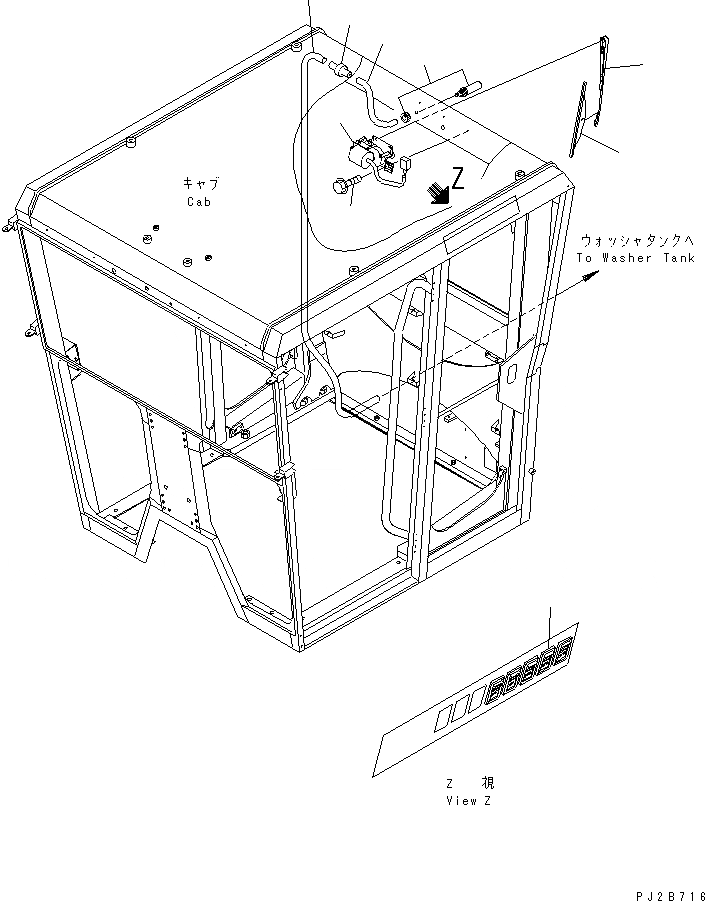

Запчасти Komatsu GD555-3A КАБИНА (С ЗАДН. ДВОРНИКИ) (ВЫС. КАБИНА ROPS) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$10

23B-953-5010

CAB ASS'Y,(W/FRONT L. AND REAR WIPER)

SN: 11001-UP

1шт.

|$11

23B-953-1021

CAB ASS'Y,(W/FRONT L. AND REAR WIPER)

SN: 10001-11000

1шт.

|$12

23B-953-5040

CAB ASS'Y

SN: 11001-UP

1шт.

|$13

23B-953-5050

CAB ASS'Y

SN: 11001-UP

1шт.

|$$5

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01B0 TO K0210-16B0.

-1шт.

|$15

23B-953-5070

CAB ASS'Y

SN: 11001-UP

1шт.

|$16

23B-953-6010

CAB ASS'Y

SN: 11001-UP

1шт.

|$17

23B-953-6020

CAB ASS'Y

SN: 11001-UP

1шт.

|$18

23B-953-6040

CAB ASS'Y

SN: 11001-UP

1шт.

|$19

23B-953-6070

CAB ASS'Y

SN: 11001-UP

1шт.

|$20

23B-953-6080

CAB ASS'Y

SN: 11001-UP

1шт.

|$$12

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01B0 TO K0210-17B4.

-1шт.

1

23B-953-1130

WIPER MOTOR ASS'Y

SN: 10001-UP

1шт.

2

01435-00616

BOLT

SN: 10001-UP

4шт.

3

418-923-1270

ARM,WIPER

SN: 10001-UP

1шт.

4

195-Z11-8550

BLADE,WIPER

SN: 10001-UP

1шт.

5

22T-55-11630

NOZZLE ASS'Y

SN: 10001-UP

1шт.

6

23A-953-1540

HOSE, 4300MM

SN: 10001-UP

1шт.

7

20T-06-71410

SWITCH,REAR WIPER

SN: 10001-UP

1шт.

8

23A-952-1550

HOSE, 2000MM

SN: 10001-UP

1шт.

9

120-Y79-5760

VALVE,CHECK

SN: 10001-UP

1шт.
