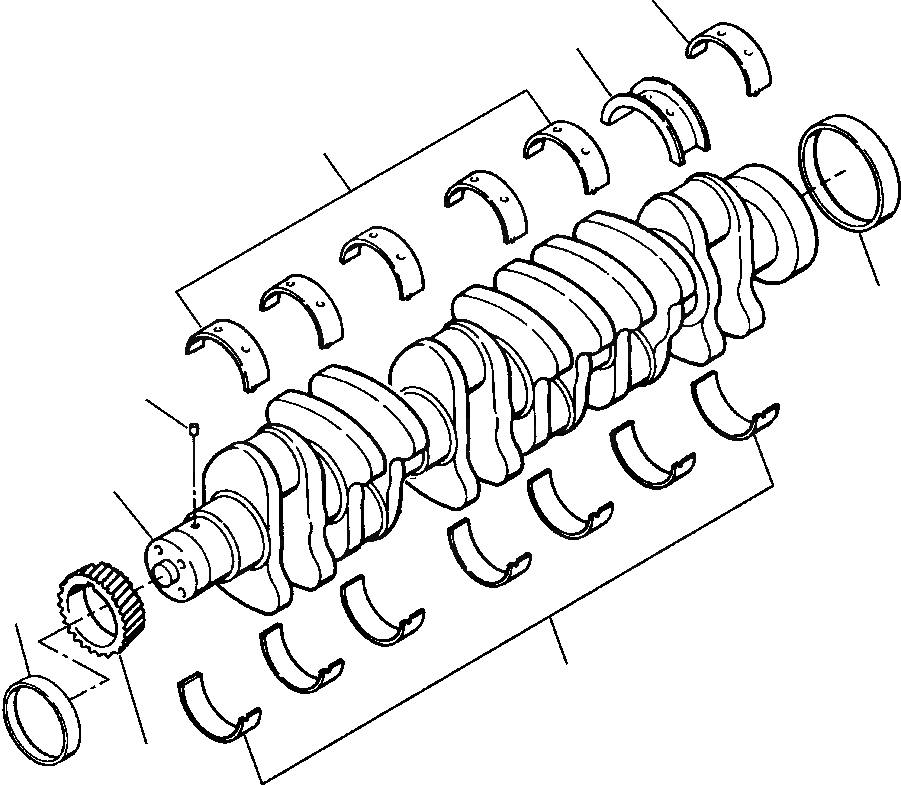

Запчасти Komatsu GD530A КОЛЕНВАЛ БЛОК ЦИЛИНДРОВ

|$0

1240 355 H91

CRANKSHAFT ASSEMBLY

1шт.

1

1294 364 H3

GEAR, CRANKSHAFT

1шт.

2

NSS

CRANKSHAFT

1шт.

3

6732-21-6150

PIN, DOWEL

1шт.

|$4

1240 114 H91

SET, MAIN BEARING - STANDARD

1шт.

4

NSS

BEARING, MAIN UPPER

6шт.

5

NSS

BEARING, THRUST

1шт.

6

NSS

BEARING, LOWER

7шт.

|$8

1240 115 H91

SET, MAIN BEARING - 0.25MM OVER

1шт.

4

NSS

BEARING, MAIN UPPER

6шт.

5

NSS

BEARING, THRUST

1шт.

6

NSS

BEARING, LOWER

7шт.

|$12

1240 116 H91

SET, MAIN BEARING - 0.50MM OVER

1шт.

4

NSS

BEARING, MAIN UPPER

6шт.

5

NSS

BEARING, THRUST

1шт.

6

NSS

BEARING, LOWER

7шт.

|$16

1240 117 H91

SET, MAIN BEARING - 0.75MM OVER

1шт.

4

NSS

BEARING, MAIN UPPER

6шт.

5

NSS

BEARING, THRUST

1шт.

6

NSS

BEARING, LOWER

7шт.

|$20

1240 118 H91

SET, MAIN BEARING - 1.00MM OVER

1шт.

4

NSS

BEARING, MAIN UPPER

6шт.

5

NSS

BEARING, THRUST

1шт.

6

NSS

BEARING, LOWER

7шт.

|$24

6736-29-8700

SET, CRANKSHAFT THRUST BRG - 0.50MM OVER

1шт.

5

NSS

BEARING, THRUST

1шт.

6

NSS

BEARING, LOWER

1шт.

|$27

6736-28-8700

SET, CRANKSHAFT THRUST BRG - 1.00MM OVER

1шт.

5

NSS

BEARING, THRUST

1шт.

6

NSS

BEARING, LOWER

1шт.

7

1240 761 H1

KIT, FRONT CRANK SLEEVE

1шт.

8

1305 044 H91

KIT, REAR CRANK SLEEVE (DRY FLYWHEEL)

1шт.

|$32

1305 042 H1

SLEEVE, WEAR DRY

1шт.

|$33

1305 045 H1

SEAL, OIL

a

1шт.

|$34

1305 041 H91

KIT, REAR CRANK SLEEVE (WET FLYWHEEL)

b

1шт.

|$35

1305 042 H1

SLEEVE, WEAR WET

1шт.

|$36

1305 043 H1

SEAL, OIL

1шт.

|$40

-1шт.

|$38

R1 - REMANUFACTURED ASSEMBLY AVAILABLE; REFER TO REMANUFACTURED

-1шт.

|$39

ASSEMBLIES CATALOG.

-1шт.
