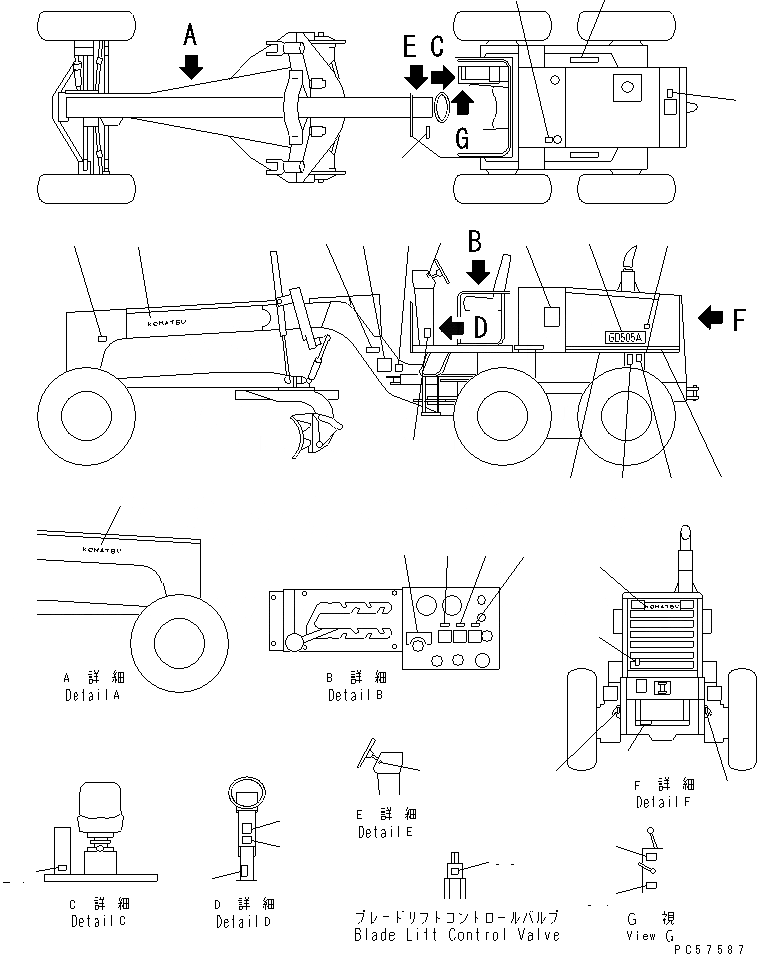

Запчасти Komatsu GD505A-3A МАРКИРОВКА МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

14X-98-11131

PLATE¤ SAFETY,HYDRAULIC TANK CAP

SN: 2001-UP

1шт.

2

273-53-11430

SHEET,NONSKID

SN: 2001-UP

2шт.

3

14X-98-11141

PLATE¤ SAFETY,RADIATOR CAP

SN: 2001-UP

1шт.

4

23D-53-11420

PLATE¤ OPERATING,BLADE LIFT SPEED

SN: 2001-UP

2шт.

5

235-53-31410

PLATE¤ CAUTION,STEERING HOSE

SN: 2001-UP

1шт.

6

09690-B0400

PLATE¤ MARK,KOMATSU¤ L.H.

SN: 2001-UP

1шт.

7

09602-01635

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 2001-UP

1шт.

|7

04418-13060

SCREW

SN: 2001-UP

4шт.

8

235-53-31330

PLATE¤ SAFETY,KEEP OUT

SN: 2001-UP

1шт.

9

235-53-31390

PLATE¤ CAUTION,ARTICULATE LOCK

SN: 2001-UP

2шт.

10

235-53-11610

PLATE¤ OPERATING,DIMMER SWITCH

SN: 2001-UP

1шт.

11

23A-53-12614

CHART¤ OIL

SN: 2001-UP

1шт.

12

23A-53-11411

PLATE¤ MARK,GD505A

SN: 2001-UP

2шт.

13

273-53-11460

PLATE¤ CAUTION,ENGINE COVER

SN: 2001-UP

2шт.

14

235-53-31370

PLATE¤ SAFETY,BANK CUTTING CONTROL

SN: 2001-UP

1шт.

15

23B-53-11570

STRIPE

SN: 2001-UP

2шт.

16

235-53-31360

PLATE¤ INSTRUCTION,DRIVING

SN: 2001-UP

2шт.

17

235-53-31350

PLATE¤ INSTRUCTION,BATTERY

SN: 2001-UP

2шт.

18

23B-53-11580

STRIPE

SN: 2001-UP

2шт.

19

09690-B0400

PLATE¤ MARK,KOMATSU¤ R.H.

SN: 2001-UP

1шт.

20

09683-0000A

PLATE¤ OPERATING,STARTING SWITCH

SN: 2001-UP

1шт.

21

23E-53-11321

PLATE¤ OPERATING,HEAD LAMP

SN: 2001-UP

1шт.

22

23E-53-11411

PLATE¤ OPERATING,WORK LAMP

SN: 2001-UP

1шт.

23

234-53-19151

PLATE¤ OPERATING,PARKING BRAKE LAMP

SN: 2001-UP

1шт.

24

23A-53-12623

PLATE

SN: 2001-UP

1шт.

25

14X-98-11280

PLATE¤ SAFETY,BEFORE OPERATING

SN: 2001-UP

1шт.

26

235-53-31320

PLATE¤ SAFETY,DRIVING

SN: 2001-UP

1шт.

27

233-54-14120

PLATE¤ OPERATING,BANK PIN

SN: 2001-UP

1шт.

28

23A-53-11550

PLATE¤ OPERATING,COMBINATION SWITCH

SN: 2001-UP

1шт.

29

09690-C0400

PLATE¤ MARK,KOMATSU

SN: 2001-UP

1шт.

30

235-53-31470

TAG

SN: 2001-UP

1шт.

31

09152-10000

PLATE¤ SAFETY,AIR RESERVOIR

SN: 2001-UP

1шт.

32

09960-01001

PLATE¤ MARK

SN: 2001-UP

2шт.

33

235-45-31260

PLATE¤ INSTRUCTION,LOCK

SN: 2001-UP

1шт.

34

235-45-31270

PLATE¤ INSTRUCTION,RELIESE

SN: 2001-UP

1шт.

35

23E-53-11530

PLATE,BLADE LIFT SPEED

SN: 2001-UP

1шт.
