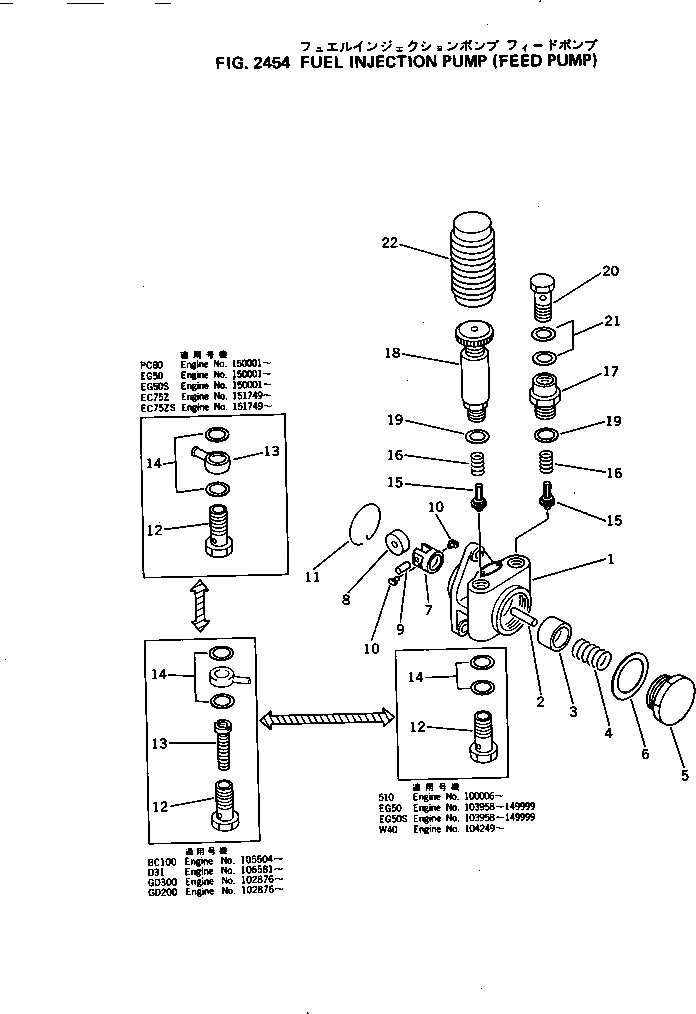

Запчасти Komatsu 4D105-5J ТОПЛ. НАСОС (ПОДКАЧИВАЮЩ. НАСОС) ТОПЛИВН. СИСТЕМА

|$0

6134-72-1800

INJECTION PUMP ASS'Y

SN: 150001-UP

1шт.

|$1

6134-71-1800

INJECTION PUMP ASS'Y

SN: 102876-149999

1шт.

|$2

ND092100-0561

FEED PUMP ASS'Y

SN: 102876-UP

1шт.

1

ND092120-0161

HOUSING

SN: 102876-UP

1шт.

2

ND092168-0010

ROD, 4.993MM,PUSH (BLUE) (MIN)

SN: 102876-UP

1шт.

2

ND092168-0030

ROD, 4.996MM,PUSH (RED)

SN: 102876-UP

1шт.

2

ND092168-0040

ROD, 4.998MM,PUSH (YELLOW)

SN: 102876-UP

1шт.

2

ND092168-0050

ROD, 5.000MM,PUSH (GREEN)

SN: 102876-UP

1шт.

2

ND092168-0060

ROD, 5.002MM,PUSH (WHITE)

SN: 102876-UP

1шт.

2

ND092168-0070

ROD, 5.004MM,PUSH (BROWN) (MAX)

SN: 102876-UP

1шт.

3

ND092171-0010

PISTON, 21.988MM,(BLUE) (MIN)

SN: 102876-UP

1шт.

3

ND092171-0020

PISTON, 21.990MM,(RED)

SN: 102876-UP

1шт.

3

ND092171-0030

PISTON, 21.992MM,(YELLOW)

SN: 102876-UP

1шт.

3

ND092171-0040

PISTON, 21.994MM,(GREEN)

SN: 102876-UP

1шт.

3

ND092171-0050

PISTON, 21.996MM,(WHITE) (MAX)

SN: 102876-UP

1шт.

4

ND092182-0020

SPRING

SN: 102876-UP

1шт.

5

ND092184-0021

PLUG

SN: 102876-UP

1шт.

6

ND949018-1240

WASHER, 1MM

SN: 102876-UP

1шт.

7

ND092174-0030

TAPPET

SN: 102876-UP

1шт.

8

ND092176-0010

ROLLER

SN: 102876-UP

1шт.

9

ND092178-0010

PIN,ROLLER

SN: 102876-UP

1шт.

10

ND092179-0050

BLOCK

SN: 102876-UP

2шт.

11

ND949072-0940

RING,SNAP

SN: 102876-UP

1шт.

12

ND092223-0070

SCREW

SN: 102876-UP

1шт.

13

ND092220-0040

FILTER

SN: 102876-UP

1шт.

14

ND090222-0070

WASHER,SEAL

SN: 102876-UP

2шт.

15

ND092121-0011

VALVE,CHECK

SN: 102876-UP

2шт.

16

ND092124-0010

SPRING

SN: 102876-UP

2шт.

17

ND092127-0010

SUPPORT

SN: 102876-UP

1шт.

18

ND092130-0050

PUMP ASS'Y

SN: 102876-UP

1шт.

19

ND092125-0010

GASKET

SN: 102876-UP

2шт.

20

ND949180-0310

SCREW

SN: 102876-UP

1шт.

21

ND090222-0070

WASHER,SEAL

SN: 102876-UP

2шт.

22

ND090061-0011

COVER

SN: 102876-UP

1шт.

|$0

6134-72-1800

INJECTION PUMP ASS'Y

SN: 150001-UP

1шт.

|$1

6134-71-1800

INJECTION PUMP ASS'Y

SN: 102876-149999

1шт.

|$2

ND092100-0561

FEED PUMP ASS'Y

SN: 102876-UP

1шт.

1

ND092120-0161

HOUSING

SN: 102876-UP

1шт.

2

ND092168-0010

ROD, 4.993MM,PUSH (BLUE) (MIN)

SN: 102876-UP

1шт.

2

ND092168-0030

ROD, 4.996MM,PUSH (RED)

SN: 102876-UP

1шт.

2

ND092168-0040

ROD, 4.998MM,PUSH (YELLOW)

SN: 102876-UP

1шт.

2

ND092168-0050

ROD, 5.000MM,PUSH (GREEN)

SN: 102876-UP

1шт.

2

ND092168-0060

ROD, 5.002MM,PUSH (WHITE)

SN: 102876-UP

1шт.

2

ND092168-0070

ROD, 5.004MM,PUSH (BROWN) (MAX)

SN: 102876-UP

1шт.

3

ND092171-0010

PISTON, 21.988MM,(BLUE) (MIN)

SN: 102876-UP

1шт.

3

ND092171-0020

PISTON, 21.990MM,(RED)

SN: 102876-UP

1шт.

3

ND092171-0030

PISTON, 21.992MM,(YELLOW)

SN: 102876-UP

1шт.

3

ND092171-0040

PISTON, 21.994MM,(GREEN)

SN: 102876-UP

1шт.

3

ND092171-0050

PISTON, 21.996MM,(WHITE) (MAX)

SN: 102876-UP

1шт.

4

ND092182-0020

SPRING

SN: 102876-UP

1шт.

5

ND092184-0021

PLUG

SN: 102876-UP

1шт.

6

ND949018-1240

WASHER, 1MM

SN: 102876-UP

1шт.

7

ND092174-0030

TAPPET

SN: 102876-UP

1шт.

8

ND092176-0010

ROLLER

SN: 102876-UP

1шт.

9

ND092178-0010

PIN,ROLLER

SN: 102876-UP

1шт.

10

ND092179-0050

BLOCK

SN: 102876-UP

2шт.

11

ND949072-0940

RING,SNAP

SN: 102876-UP

1шт.

12

ND092223-0070

SCREW

SN: 102876-UP

1шт.

13

ND092220-0040

FILTER

SN: 102876-UP

1шт.

14

ND090222-0070

WASHER,SEAL

SN: 102876-UP

2шт.

15

ND092121-0011

VALVE,CHECK

SN: 102876-UP

2шт.

16

ND092124-0010

SPRING

SN: 102876-UP

2шт.

17

ND092127-0010

SUPPORT

SN: 102876-UP

1шт.

18

ND092130-0050

PUMP ASS'Y

SN: 102876-UP

1шт.

19

ND092125-0010

GASKET

SN: 102876-UP

2шт.

20

ND949180-0310

SCREW

SN: 102876-UP

1шт.

21

ND090222-0070

WASHER,SEAL

SN: 102876-UP

2шт.

22

ND090061-0011

COVER

SN: 102876-UP

1шт.
