Запчасти Komatsu PW98MR-6 ГЕНЕРАТОР (A) (/) ДВИГАТЕЛЬ БЛОК

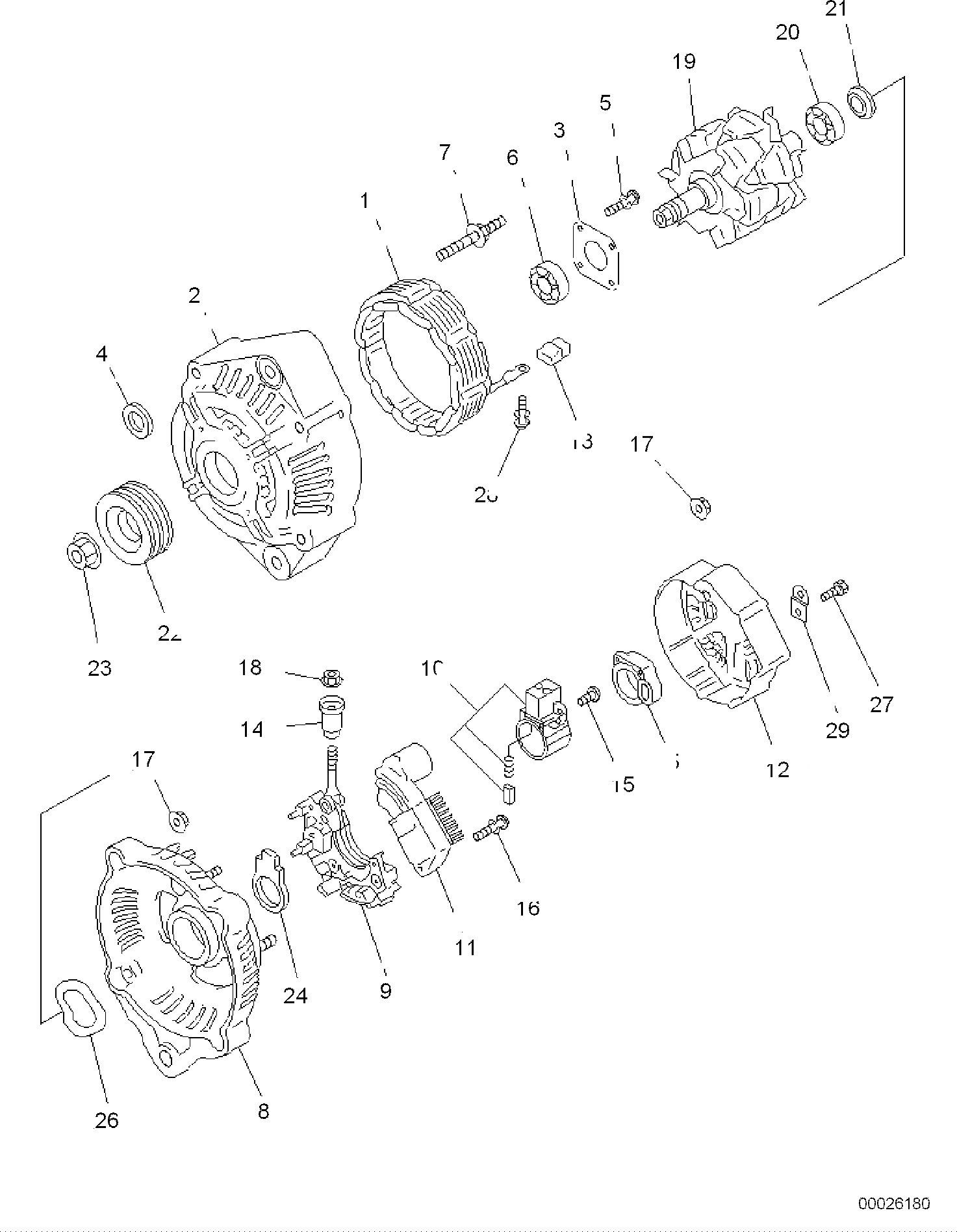

Схема запчастей Komatsu PW98MR-6 - ГЕНЕРАТОР (A) (/) ДВИГАТЕЛЬ БЛОК
21
20
19
5
3
7
6
1
2
4
13
17
28
22
23
27
10
18
29
14
12
25
17
15
16
11
9
24
26
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

\0

6205-G0-RA10

MOTOR, ASSEMBLY

\0

600-861-6510

ALTERNATOR, ASSEMBLY, 60A

\0

ND121400-5100

FRAME, ASSEMBLY

1

ND021100-4210

STATOR, ASSEMBLY

2

ND021401-4980

FRAME

3

ND021411-0570

PLATE

4

ND021045-0530

COLLAR

5

ND949006-5590

SCREW

6

ND949100-5010

BEARING

7

ND949043-2000

BOLT

8

ND021501-6690

FRAME, REAR

9

ND021580-4690

RECTIFIER, ASSEMBLY

10

ND021620-2720

BRUSH HOLDER, ASSEMBLY

11

ND126000-2320

REGULATOR, ASSEMBLY

12

ND021551-2390

COVER, REAR

13

ND021605-1970

BUSHING

14

ND021605-2150

BUSHING

15

ND949006-5460

SCREW

16

ND949007-5110

SCREW

16

ND91310-04251

SCREW

17

ND949056-2481

NUT

18

ND949056-3300

NUT

19

ND021200-8380

ROTOR, ASSEMBLY

20

ND949100-2790

BEARING, BALL

20

ND949100-3980

BEARING, BALL

21

ND021506-0070

COVER

22

ND121041-9920

PULLEY

23

ND949056-2520

NUT

24

ND021626-0190

SEAL

25

ND021626-0250

SEAL

26

ND021542-0160

WASHER

27

ND949006-6401

SCREW

28

ND949007-6280

SCREW

29

ND021602-5230

PLATE
