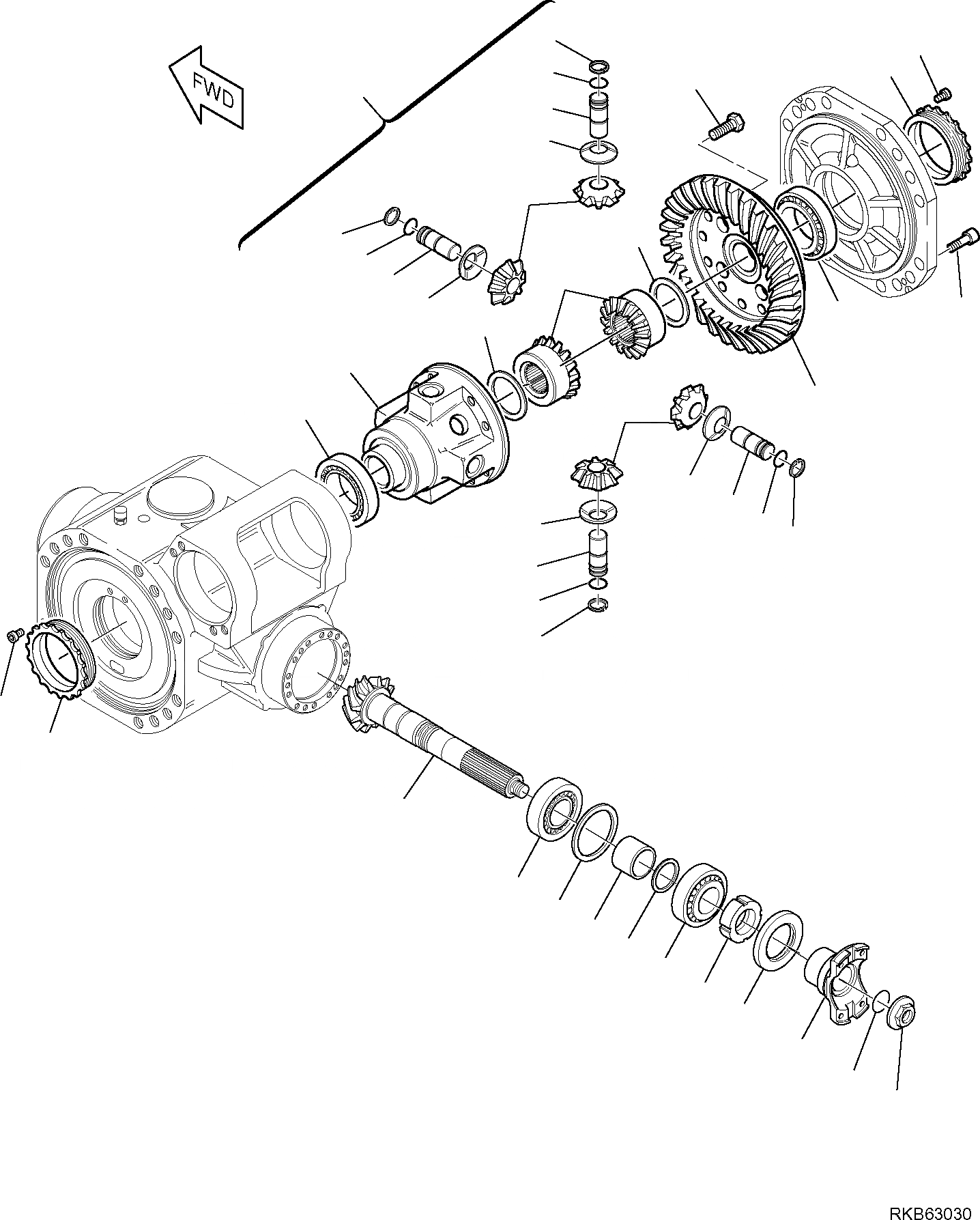

Запчасти Komatsu PW98MR-6 ПЕРЕДНИЙ МОСТ (/7) НИЖН.CARRIAGE

\0

21W-23-R1010

FRONT AXLE, ASSEMBLY

1

226-22-11310

RING, NUT

2

226-22-11330

BOLT

2

DG016304162

BOLT

3

21D-23-11280

BEARING

4

226-22-11550

DIFFERENTIAL

5

226-22-11360

PLANETARY

6

226-22-11340

CROWN WHEEL

7

DG1120400603

PIN

8

226-22-11370

RING, SNAP

9

226-22-11380

RING, SNAP

10

DG1120400404

GEAR

11

226-22-11410

WASHER, SPRING

12

226-22-11420

DIFFERENTIAL HOUSING

13

22E-23-12460

BEVEL GEAR

14

226-22-11351

SCREW

15

226-22-11280

BEARING

16

226-22-11440

SHIM, 0.100 MM

16

226-22-11430

SHIM, 0.150 MM

16

21D-23-11530

SHIM, 0.200 MM

16

21D-23-11550

SHIM, 0.300 MM

17

226-23-11130

SPACER

18

226-22-11460

SHIM, 0.100 MM

18

226-22-11470

SHIM, 0.150 MM

18

226-22-11480

SHIM, 0.200 MM

18

226-22-11490

SHIM, 0.400 MM

18

226-22-11510

SHIM, 0.500 MM

19

21D-23-11460

RING, NUT

20

21D-23-11450

SEAL

20

DG001034328

SEAL

21

DG1120473202

FLANGE

22

226-23-11120

O-RING

23

22E-23-12430

NUT

24

226-22-11320

SCREW
