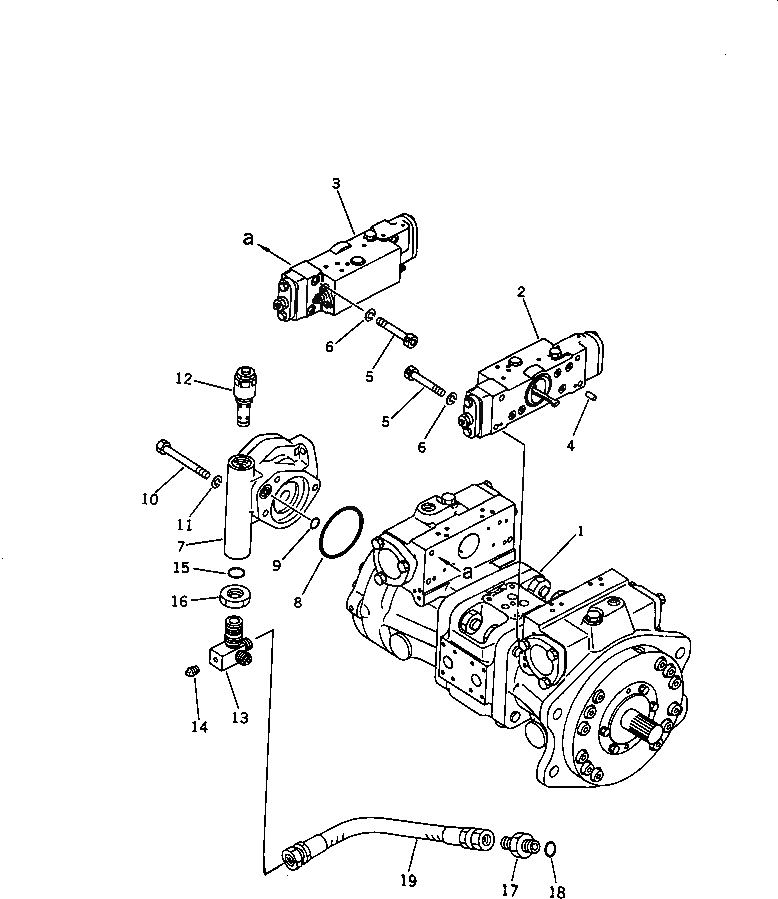

Запчасти Komatsu PW60S-3 ГИДР. НАСОС. БЛОК УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-21-01073
PUMP ASS'Y,(HPV 35+35)
|1
708-21-01072
PUMP ASS'Y,(HPV 35+35)
|1
708-21-01071
PUMP ASS'Y,(HPV 35+35)
|1
708-21-01070
PUMP ASS'Y,(HPV 35+35)
|1
708-21-10801
PUMP ASS'Y
1
708-21-01252
PUMP ASS'Y
|1
708-21-01251
PUMP ASS'Y
|1
708-21-01250
PUMP ASS'Y
|1
708-21-11500
PUMP ASS'Y
2
708-21-07820
SERVO VALVE ASS'Y,FRONT
|2
708-21-15901
SERVO VALVE ASS'Y,FRONT
3
708-21-07920
SERVO VALVE ASS'Y,REAR
|3
708-21-16901
SERVO VALVE ASS'Y,REAR
4
04020-00616
PIN,DOWEL
5
708-25-19130
BOLT
6
01602-20825
WASHER,SPRING
7
704-24-24401
GEAR PUMP ASS'Y
|7
704-24-24400
GEAR PUMP ASS'Y
8
07000-02085
O-RING
9
07000-02018
O-RING
10
01010-31080
BOLT
11
01602-21030
WASHER,SPRING
12
708-23-14801
VALVE ASS'Y
|12
708-23-14800
VALVE ASS'Y
13
708-23-19110
ELBOW
14
07042-30108
PLUG
15
07002-02434
O-RING
16
07239-12410
NUT
17
07230-20315
UNION
|17
07230-10315
UNION
18
07002-02034
O-RING
19
07102-20303
HOSE
Выбрано товаров: 32
