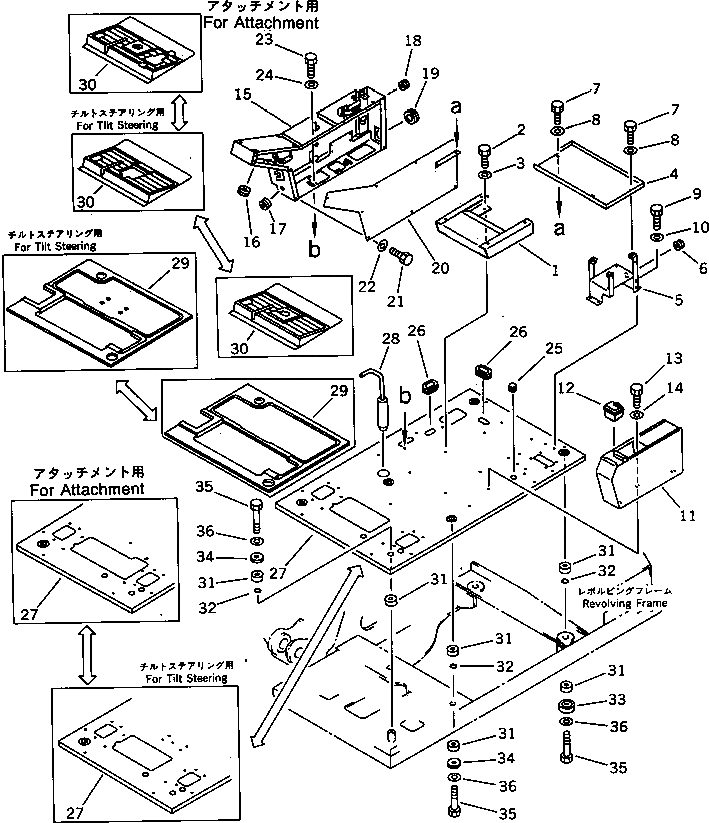

Запчасти Komatsu PW60S-3 ПОЛ КАБИНЫ И КОРПУС ШАССИ¤ ОСНОВНАЯ РАМА И КАБИНА

1

20D-54-43141

BRACKET

2

01010-51230

BOLT

3

01643-31232

WASHER

4

20D-54-43210

COVER

5

20D-54-43220

BRACKET

6

08037-02512

GROMMET

7

01010-50816

BOLT

8

01643-30823

WASHER

9

01010-51025

BOLT

10

01643-31032

WASHER

11

20D-54-43130

BOX,L.H.

|11

20B-54-33120

BOX,L.H. (FOR SEAT WITH SEAT BELT)

12

20G-54-13420

ASHTRAY

13

01010-51020

BOLT

14

01643-31032

WASHER

15

20B-54-33110

BOX,R.H.

16

08037-02512

GROMMET

17

08037-03614

GROMMET

18

08037-02512

GROMMET

19

08037-05016

GROMMET

20

20D-54-43120

COVER

21

01010-50816

BOLT

22

01643-30823

WASHER

23

01010-51025

BOLT

24

01643-31032

WASHER

25

09415-03614

CAP

26

176-911-4160

GROMMET

27

20B-54-34110

FRAME

|27

20B-40-32140

FRAME,(FOR TILT STEERING)

|27

20B-973-3430

FRAME,(FOR ATTACHMENT)

28

203-54-41412

PIN

29

20B-54-34130

MAT

|29

20B-40-32160

MAT,(FOR TILT STEERING)

30

20B-54-34120

MAT

|30

20B-40-32170

MAT,(FOR TILT STEERING)

|30

20B-973-3410

MAT,(FOR ATTACHMENT)

31

203-54-21110

CUSHION

32

07000-03025

O-RING

33

201-54-21860

COLLAR

34

205-54-51950

PLATE

35

01010-51675

BOLT

36

01643-31645

WASHER
