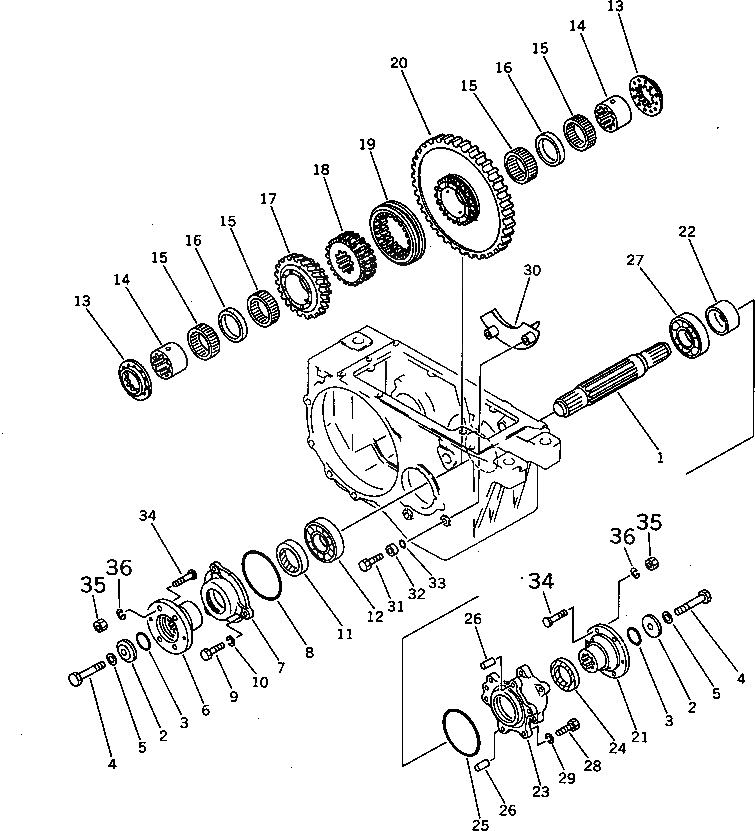

Запчасти Komatsu PW60S-3 ТРАНСМИССИЯ (/) ПОВОРОТН. И ТРАНСМИССИЯ

|1

20B-14-00021

TRANSMISSION ASS'Y

|1

20B-14-00020

TRANSMISSION ASS'Y

1

20D-14-41510

SHAFT

2

362-15-13270

PLATE

3

20B-09-17110

O-RING

4

01050-51295

BOLT

5

01643-31232

WASHER

6

20B-14-22340

COUPLING

7

20B-14-31130

CAGE

8

07000-02115

O-RING

9

01010-51030

BOLT

10

01602-21030

WASHER,SPRING

11

07012-10058

SEAL

12

06044-00309

BEARING

13

20B-14-31230

SLIDER

14

20G-14-12230

COLLAR

15

20B-09-11120

BEARING

16

20G-14-12270

COLLAR

17

20B-14-31380

GEAR

18

20B-14-31180

GEAR

19

141-14-35233

GEAR

20

20B-14-31150

GEAR

21

20B-14-11450

COUPLING

22

20B-14-22310

COLLAR

23

20G-14-12280

CAGE

|23

20D-14-41230

CAGE

24

07012-10058

SEAL

25

07000-02110

O-RING

|25

07000-02115

O-RING

26

04020-01024

PIN,DOWEL

27

06040-06211

BEARING

28

01010-51035

BOLT

29

01602-21030

WASHER,SPRING

30

20B-14-31330

COVER

31

01090-51035

BOLT

32

113-15-21260

WASHER

33

07002-01023

O-RING

34

20G-14-14110

BOLT

35

236-14-11140

NUT

36

01602-21236

WASHER,SPRING
