Запчасти Komatsu PW60S-3 ГИДР. НАСОС.¤ ЗАДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

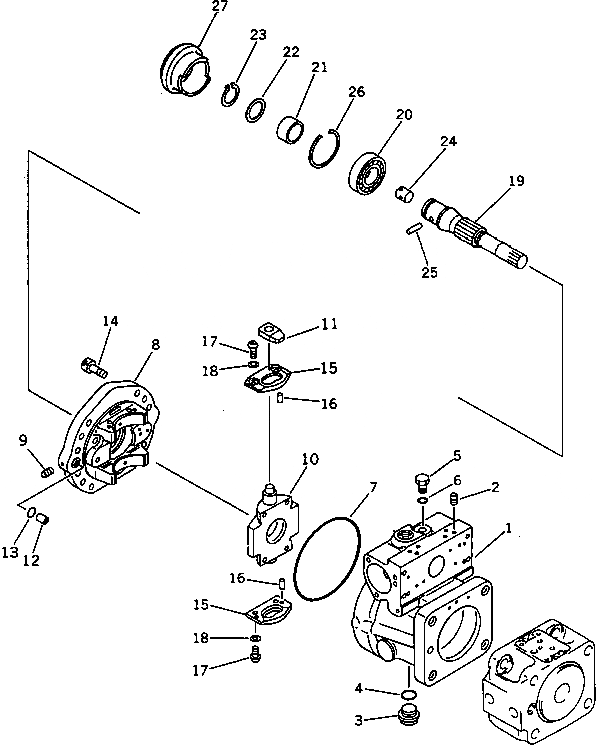

Схема запчастей Komatsu PW60S-3 - ГИДР. НАСОС.¤ ЗАДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

708-21-01073

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01072

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01071

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01070

PUMP ASS'Y,(HPV 35+35)

|1

708-21-10801

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01252

PUMP ASS'Y

|1

708-21-01251

PUMP ASS'Y

|1

708-21-01250

PUMP ASS'Y

|1

708-21-11500

PUMP ASS'Y

|1

708-21-00020

CASE ASS'Y,REAR

1

CASE,REAR

2

PLUG

3

07044-12412

PLUG

4

07002-02434

O-RING

5

720-68-19870

PLUG

6

07002-01223

O-RING

7

07000-02145

O-RING

|8

708-21-00040

CRADLE ASS'Y,REAR

|8

708-21-00110

CRADLE SUB ASS'Y,REAR

8

CRADLE,REAR

9

PLUG

10

708-21-13410

CAM

11

708-21-14220

SLIDER

12

708-21-12330

JOINT

13

07000-12012

O-RING

14

708-21-12380

BOLT

15

708-21-12340

PLATE

16

708-23-12370

PIN

17

708-21-12350

SCREW

18

708-21-12360

WASHER

19

708-21-12721

SHAFT,REAR

|19

708-21-12720

SHAFT,REAR

20

708-21-12751

BEARING

21

708-21-12671

COLLAR

|21

708-21-12670

COLLAR

22

708-21-05010

WASHER KIT

|22

WASHER

|22

WASHER

|22

WASHER

|22

WASHER

23

708-25-22830

RING,SNAP

24

708-23-12930

COUPLING

|24

708-21-12931

COUPLING

25

708-21-12940

PIN

26

708-21-12660

RING,SNAP

27

708-21-12650

RETAINER

Выбрано товаров: 46
