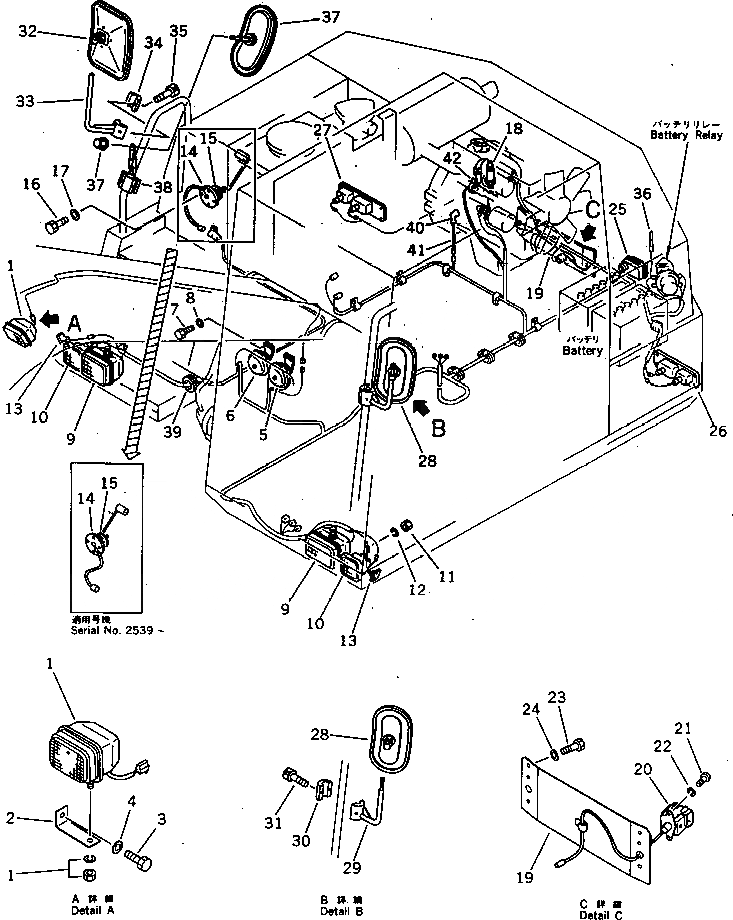

Запчасти Komatsu PW60-3 ЭЛЕКТРИКА (/) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

22W-06-12381

LAMP ASS'Y,WORK

1

22W-06-12170

BULB, 24V

2

203-06-41130

BRACKET

3

01010-51430

BOLT

4

01643-31445

WASHER

5

08160-52400

HORN

6

08160-52410

HORN

6

205-06-64430

HORN

7

01010-50810

BOLT

8

01641-20812

WASHER

9

20G-06-13350

LAMP,HEAD

9

20G-06-13360

BULB, 50/60W

10

20B-06-31110

LAMP ASS'Y,COMBINATION

10

IC961-4050

BULB, 25W

10

IC961-3210

BULB, 6W

10

IC13G370-0011

LENS

11

01580-10504

NUT

12

01601-20513

WASHER,SPRING

13

20D-06-12430

LAMP ASS'Y,SIDE WINKER

13

08102-02403

BULB, 3W

13

IC15F080-1001

LENS

14

7816-91-4880

SENSOR,FUEL

14

20X-06-21330

SENSOR,FUEL

15

07000-02085

O-RING

16

01010-51025

BOLT

17

01643-31032

WASHER

18

20B-06-11340

SWITCH,VACUUM

19

20B-06-31120

BRACKET

20

22W-06-12390

LAMP ASS'Y,LICENSE PLATE

20

08110-12410

BULB, 12W

20

IC161140-0011

LENS

21

01220-40512

SCREW

22

01601-20513

WASHER,SPRING

23

01010-51020

BOLT

24

01643-31032

WASHER

25

20B-06-11910

LAMP ASS'Y,BACK

25

08110-02410

BULB, 10W

26

20G-06-13210

LAMP ASS'Y,CONBINATION, L.H.

26

08105-12420

BULB, 25W

26

08104-12420

BULB, 25/10W

26

IC14G037-1001

LENS

27

20G-06-13220

LAMP ASS'Y,CONBINATION, R.H.

27

08105-12420

BULB, 25W

27

08104-12420

BULB, 25/10W

27

IC14G036-1001

LENS

28

08174-13117

MIRROR

29

20G-54-19250

SUPPORT

30

205-54-77550

CLAMP

31

01252-41025

BOLT

32

08174-33023

MIRROR

33

203-54-42910

SUPPORT

34

207-54-17840

CLAMP

35

01252-41025

BOLT

36

22W-06-14830

LINK,FUSIBLE

37

20B-06-31130

MIRROR

38

20B-06-31140

STAY

39

08037-03620

GROMMET

40

08038-00525

CAP

41

20X-06-21260

WIRE

42

08034-00519

BAND
