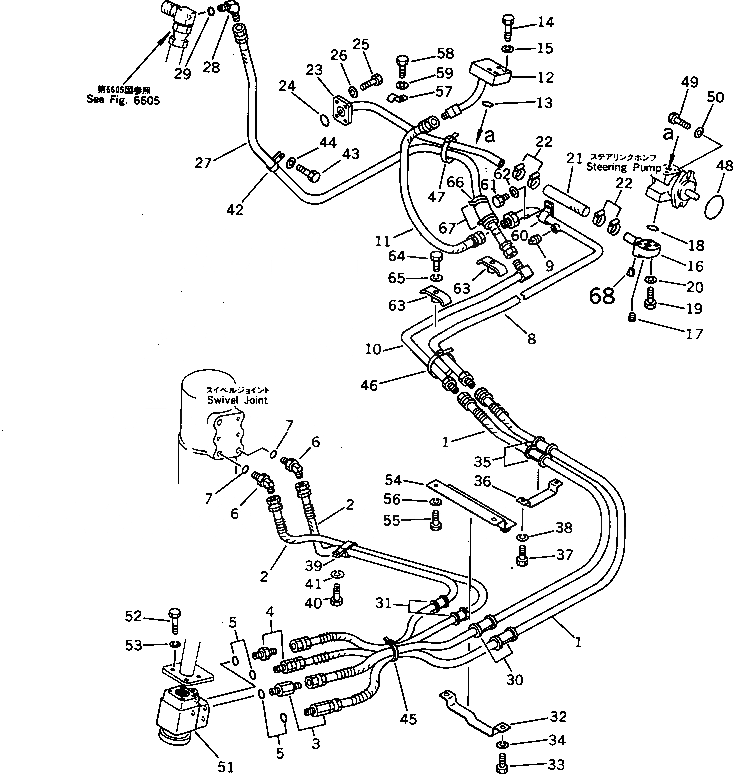

Запчасти Komatsu PW60-3 ГИДРАВЛИКА РУЛ. УПРАВЛЕНИЯ (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

07123-20413

HOSE

2

07123-20312

HOSE

3

20D-62-42550

NIPPLE

4

20B-62-14270

NIPPLE

5

20D-62-17150

O-RING

6

208-62-18180

ELBOW

7

07002-12034

O-RING

8

20B-62-32132

TUBE

9

07042-20108

PLUG

10

20B-62-32140

TUBE

11

07123-00406

HOSE

12

20B-62-32122

TUBE

13

07000-13025

O-RING

14

01010-50855

BOLT

15

01602-20825

WASHER,SPRING

16

20D-62-41270

TUBE

17

07042-20108

PLUG

18

07000-13032

O-RING

19

01010-51060

BOLT

20

01602-21030

WASHER,SPRING

21

07260-02613

HOSE

22

07281-00489

CLAMP

23

20B-62-32110

TUBE

24

07000-13032

O-RING

25

01010-51025

BOLT

26

01602-21030

WASHER,SPRING

27

07102-20410

HOSE

28

07236-10422

ELBOW

29

07002-02034

O-RING

30

203-62-32330

CUSHION

31

21K-62-12250

CUSHION

32

20G-62-11840

CLAMP

33

01010-51020

BOLT

34

01602-21030

WASHER,SPRING

35

203-62-32330

CUSHION

36

573-62-12320

PLATE

37

01010-51020

BOLT

38

01602-21030

WASHER,SPRING

39

176-911-4170

CLIP

40

01010-51020

BOLT

41

01602-21030

WASHER,SPRING

42

08036-03014

CLIP

43

01010-51020

BOLT

44

01602-21030

WASHER,SPRING

45

08034-00823

BAND

46

08034-00414

BAND

47

08034-00519

BAND

48

07000-02085

O-RING

49

01010-51030

BOLT

50

01643-31032

WASHER

51

20B-60-31121

STEERING VALVE ASS'Y

52

01010-51050

BOLT

53

01643-31032

WASHER

54

20B-62-32190

BRACKET

55

01010-51020

BOLT

56

01602-21030

WASHER,SPRING

57

112-62-32150

CLAMP

58

01010-51020

BOLT

59

01602-21030

WASHER,SPRING

60

130-902-1340

RETAINER

61

01010-51020

BOLT

62

01643-31032

WASHER

63

20T-62-52310

CLAMP

64

01010-51045

BOLT

65

01602-21030

WASHER,SPRING

66

203-04-31230

COVER

67

08034-00414

BAND

68

07049-01215

PLUG
