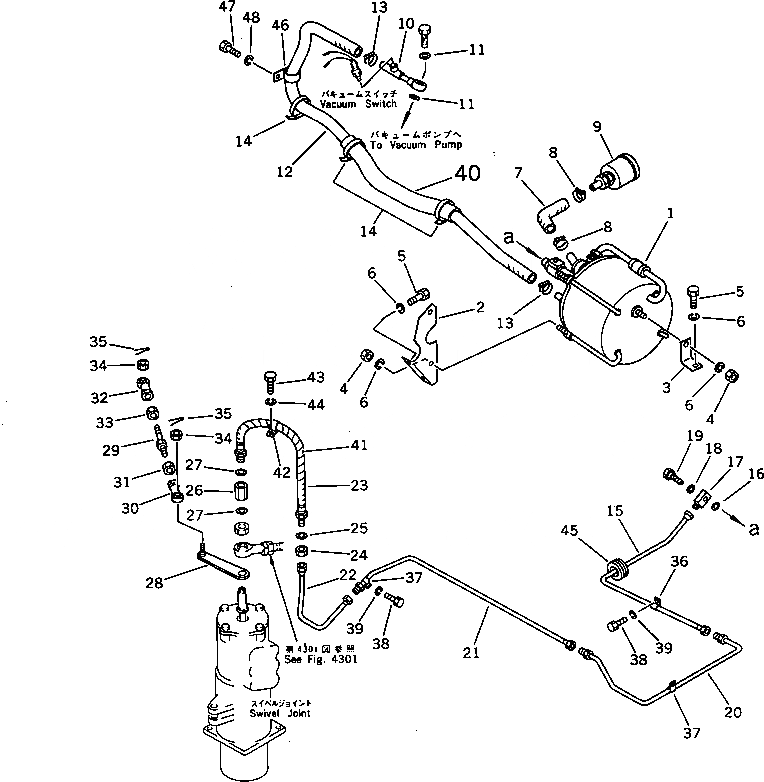

Запчасти Komatsu PW60-3 ПЕДАЛЬ ТОРМОЗА И ТРУБЫ (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20B-43-33111

MASTER CYLINDER A.

2

20B-43-33131

PLATE

3

20B-43-33160

PLATE

4

01582-11008

NUT

5

01010-51020

BOLT

6

01602-21030

WASHER,SPRING

7

20B-43-33190

HOSE

8

07280-03223

CLAMP

9

20B-43-16250

AIR CLEANER ASS'Y

10

20B-43-33171

TUBE

11

07005-01812

GASKET

12

20B-43-33181

HOSE

13

07280-03223

CLAMP

14

08034-00519

BAND

15

20B-43-33260

TUBE

16

20B-43-16190

PACKING

17

20B-43-15160

NIPPLE

18

20B-43-16180

PACKING

19

20B-43-15630

BOLT,JOINT

20

20B-43-33271

TUBE

21

20B-43-33281

TUBE

22

20B-43-33290

TUBE

23

20B-43-33310

HOSE

24

01582-11210

NUT

25

01602-21236

WASHER,SPRING

26

20B-43-32250

JOINT

27

20B-43-15510

PACKING

28

20B-43-25540

LEVER

29

04248-11011

ROD

30

04250-81056

END,ROD

31

01580-21008

NUT

32

04250-91056

END,ROD, L.H. THREAD

33

01508-41006

NUT,L.H. THREAD

34

01593-11008

NUT

35

04050-12018

PIN,COTTER

36

04434-00808

CLIP

37

04435-00808

CLIP

38

01010-50812

BOLT

39

01602-20825

WASHER,SPRING

40

20B-62-32180

COVER

41

208-62-18350

COVER

42

08035-02510

CLIP

43

01010-51020

BOLT

44

01602-21030

WASHER,SPRING

45

08037-03614

GROMMET

46

08035-03010

CLIP

47

01010-51020

BOLT

48

01602-21030

WASHER,SPRING
