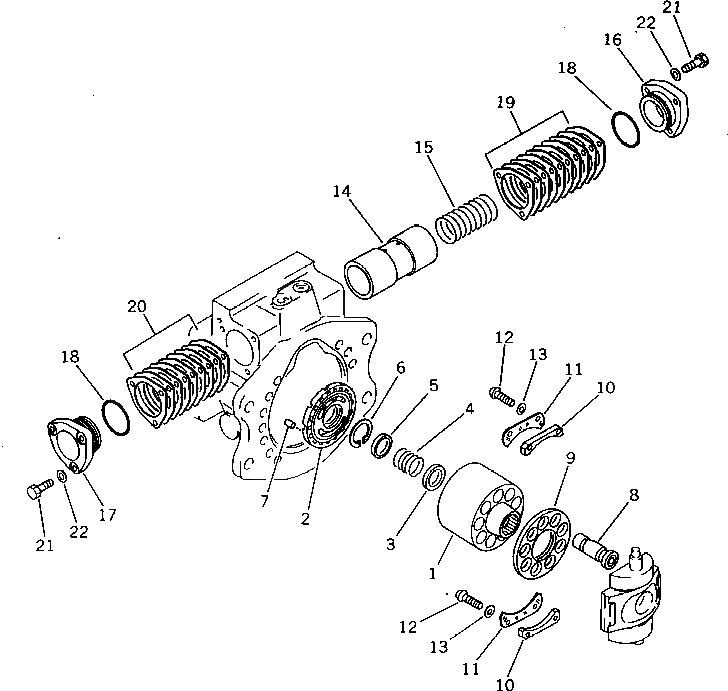

Запчасти Komatsu PW60-3 ГИДР. НАСОС.¤ ПЕРЕДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-21-01073

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01072

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01071

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01070

PUMP ASS'Y,(HPV 35+35)

|1

708-21-10801

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01252

PUMP ASS'Y

|1

708-21-01251

PUMP ASS'Y

|1

708-21-01250

PUMP ASS'Y

|1

708-21-11500

PUMP ASS'Y

|1

708-21-00081

BLOCK ASS'Y,FRONT

|1

708-21-00080

BLOCK ASS'Y,FRONT

|1

708-21-00060

BLOCK ASS'Y,FRONT

1

708-21-13160

BLOCK

2

708-21-13611

PLATE,VALVE

|2

708-21-13610

PLATE,VALVE

|2

708-21-13220

PLATE,VALVE

3

708-21-13130

WASHER

4

708-21-13140

SPRING

5

708-21-13120

WASHER

6

708-21-13150

RING,SNAP

7

720-68-19610

PIN,DOWEL

8

708-21-13352

PISTON SUB ASS'Y

|8

708-21-13390

PISTON SUB ASS'Y

9

708-21-13340

RETAINER

10

708-21-05020

SPACER KIT

|10

SPACER

|10

SPACER

|10

SPACER

11

708-21-13450

RETAINER

12

708-23-13460

SCREW

13

01643-30623

WASHER

14

708-21-14111

PISTON

|14

708-21-14110

PISTON

15

708-21-14130

SPRING

16

708-21-14240

CAP

17

708-21-14150

CAP

18

07000-03045

O-RING

19

708-21-05030

SHIM KIT

|19

SHIM

|19

SHIM

|19

SHIM

|19

SHIM

20

708-21-05040

SHIM KIT

|20

SHIM

|20

SHIM

|20

SHIM

|20

SHIM

21

01010-30835

BOLT

|21

01010-30830

BOLT

22

01643-30823

WASHER
