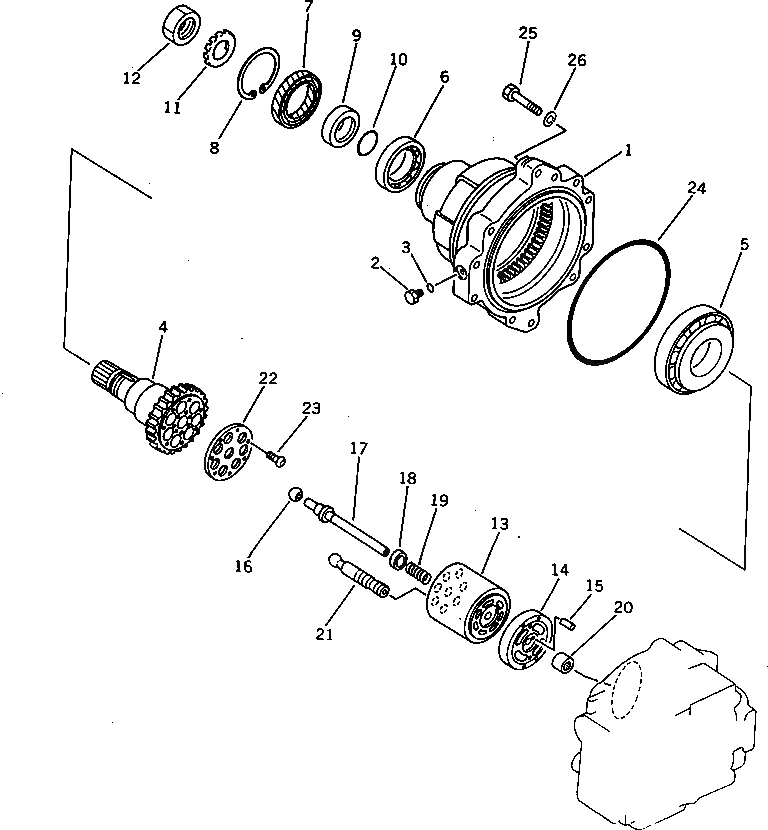

Запчасти Komatsu PW60-3 МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-75-10902

TRAVEL MOTOR ASS'Y

|1

706-75-10901

TRAVEL MOTOR ASS'Y

1

CASE

2

706-75-71420

PLUG

3

07002-10823

O-RING

4

706-75-42962

SHAFT,DRIVE

|4

706-75-42960

SHAFT,DRIVE

5

706-75-42880

BEARING

6

706-76-40890

BEARING

7

706-76-41931

SEAL

|7

706-76-40920

SEAL

8

04065-09030

RING,SNAP

9

706-75-42910

RING

10

07000-03040

O-RING

11

706-75-40940

WASHER

12

01530-03912

NUT

13

706-75-41091

BLOCK,CYLINDER

14

706-75-42840

PLATE

15

04020-00820

PIN,DOWEL

16

706-75-41220

BALL

17

706-75-42080

SHAFT

18

706-75-41130

RING

19

706-75-41110

SPRING

20

706-75-40010

BEARING

21

706-75-41163

PISTON SUB ASS'Y

22

706-75-42260

RETAINER

23

706-75-42270

SCREW

24

07000-05195

O-RING

25

01010-51455

BOLT

26

01602-21442

WASHER,SPRING
