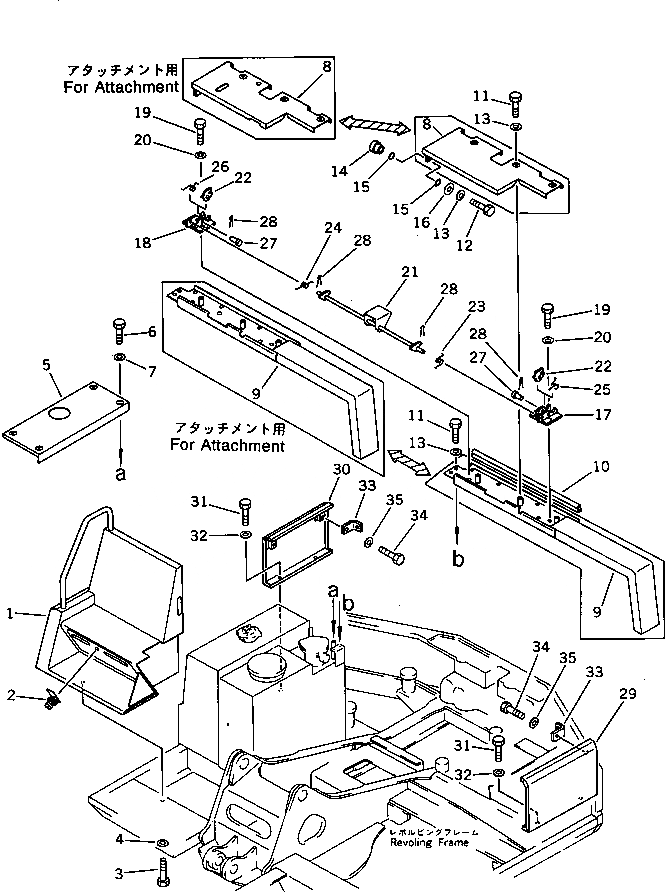

Запчасти Komatsu PW60-3 MACHINERY ОБСТАНОВКА (/)(№-) ШАССИ¤ ОСНОВНАЯ РАМА И КАБИНА

1

20B-54-31250

COVER

|1

201-54-51110

COVER

2

205-60-71220

LOCK ASS'Y

3

01010-51025

BOLT

4

01643-31032

WASHER

5

20X-54-21521

COVER

|5

20X-54-21520

COVER

6

01010-51020

BOLT

7

01643-31032

WASHER

8

20X-54-21381

COVER

|8

20B-973-3210

COVER,(FOR ATTACHMENT)

9

20X-54-21351

COVER

|9

20B-973-3220

COVER,(FOR ATTACHMENT)

10

20X-54-21360

TRIM

11

01010-51020

BOLT

12

01010-51035

BOLT

13

01643-31032

WASHER

14

10E-43-11180

RETAINER

15

07002-03034

O-RING

16

175-54-88110

WASHER

17

20X-54-21411

BRACKET,L.H.

18

20X-54-21420

BRACKET,R.H.

19

01010-51020

BOLT

20

01643-31032

WASHER

21

20X-54-21431

LEVER

22

21K-54-26340

LEVER

23

20X-54-21460

SPRING

24

20X-54-21440

SPRING

25

20X-54-21470

SPRING

26

21K-54-26360

SPRING

27

04205-11035

PIN

28

04050-13020

PIN,COTTER

29

20X-54-21310

COVER,L.H.

30

20X-54-21320

COVER,R.H.

31

01010-51020

BOLT

32

01643-31032

WASHER

33

20X-54-21330

PLATE

34

01010-51020

BOLT

35

01643-31032

WASHER
