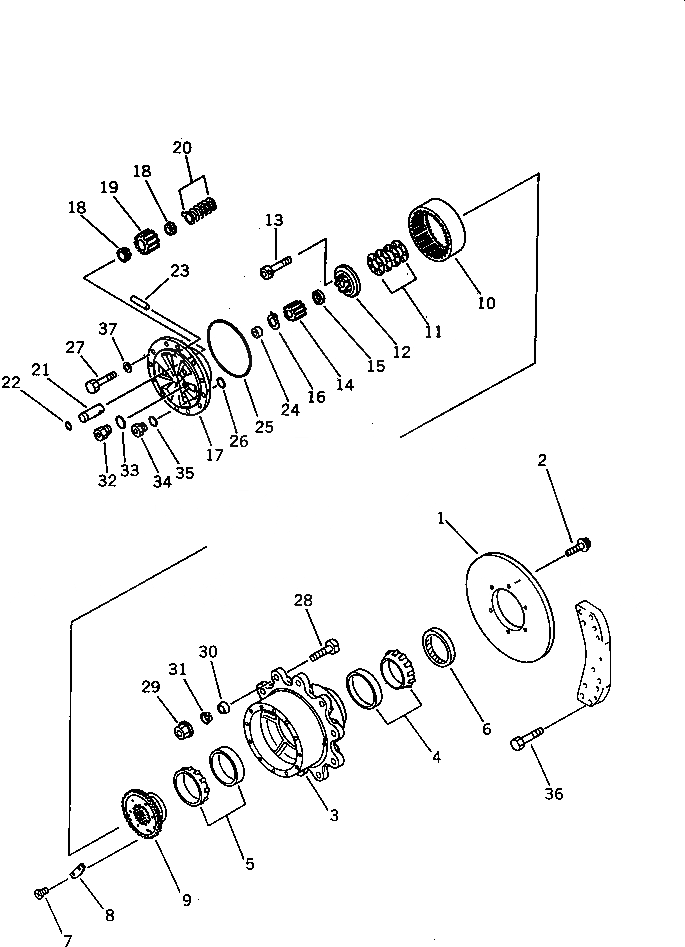

Запчасти Komatsu PW60-3 ПЕРЕДН. КОНЕЧНАЯ ПЕРЕДАЧА МОСТ И КОЛЕСА
№
Артикул
Название
Примечание
Количество
|1
20B-22-30003
FRONT AXLE ASS'Y
|1
20B-22-30002
FRONT AXLE ASS'Y
|1
20B-22-30001
FRONT AXLE ASS'Y
|1
20B-22-30000
FRONT AXLE ASS'Y
1
20B-32-31911
DISK
|1
20B-32-31910
DISK
2
20G-32-21950
BOLT
3
20B-22-32712
HUB
|3
20B-22-32711
HUB
4
418-22-12840
BEARING
5
419-22-12840
BEARING
6
20B-22-32750
SEAL
7
20G-22-22140
BOLT
8
20G-22-22130
PLATE
9
20B-22-32310
HUB
10
20B-22-32110
GEAR
11
20B-22-32440
SHIM¤ 0.10MM
|11
20B-22-32450
SHIM¤ 0.15MM
|11
20B-22-32460
SHIM¤ 0.20MM
|11
20B-22-32470
SHIM¤ 0.30MM
|11
20B-22-32470
SHIM¤ 0.30MM
12
20B-22-32430
RETAINER
13
01252-31040
BOLT
14
20B-22-32420
GEAR
15
20B-22-32490
RING
16
04064-03015
RING,SNAP
17
20B-22-32611
CARRIER
18
415-22-12810
BEARING
19
20B-22-32210
GEAR
20
415-22-12260
SHIM¤ 0.2MM
|20
415-22-12260
SHIM¤ 0.2MM
|20
415-22-12270
SHIM¤ 0.3MM
|20
415-22-12270
SHIM¤ 0.3MM
|20
415-22-12280
SHIM¤ 0.5MM
|20
415-22-12280
SHIM¤ 0.5MM
21
20B-22-32650
SHAFT
22
07000-02016
O-RING
23
04025-00616
PIN,SPRING
24
20B-22-32630
BUTTON,THRUST
25
20B-22-32680
O-RING
26
07000-02012
O-RING
27
01010-51235
BOLT
28
20B-22-32720
STUD
29
20G-22-12870
NUT
30
20G-22-12880
COLLAR
31
20G-22-12860
WASHER
32
07040-11409
PLUG
33
07002-01423
O-RING
34
07040-11007
PLUG
35
07002-01023
O-RING
36
20G-32-21930
BOLT
37
01643-51232
WASHER
Выбрано товаров: 52
