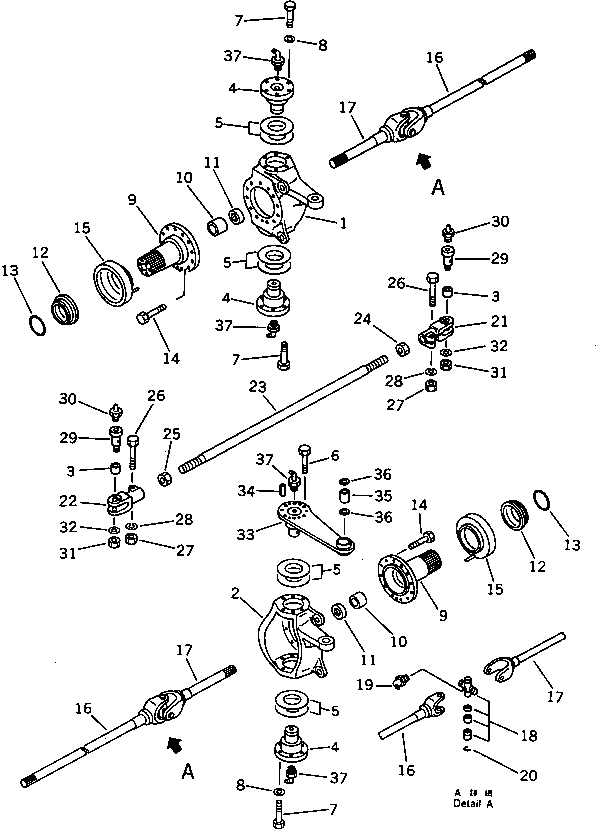

Запчасти Komatsu PW60-3 ПЕРЕДН. КУЛАК И ПОПЕРЕЧНАЯ РУЛЕВ. ТЯГА МОСТ И КОЛЕСА

|1

20B-22-30003

FRONT AXLE ASS'Y

|1

20B-22-30002

FRONT AXLE ASS'Y

|1

20B-22-30001

FRONT AXLE ASS'Y

|1

20B-22-30000

FRONT AXLE ASS'Y

1

20B-22-33522

KNUCKLE,L.H.

|1

20B-22-33521

KNUCKLE,L.H.

2

20B-22-33513

KNUCKLE,R.H.

|2

20B-22-33512

KNUCKLE,R.H.

|2

20B-22-33511

KNUCKLE,R.H.

3

20B-22-33530

BUSHING

4

20B-22-33811

PIN

5

20B-22-33850

SHIM¤ 0.10MM

|5

20B-22-33850

SHIM¤ 0.10MM

|5

20B-22-33860

SHIM¤ 0.15MM

|5

20B-22-33870

SHIM¤ 0.20MM

|5

20B-22-33880

SHIM¤ 0.50MM

6

01010-61445

BOLT

|6

01010-61445

BOLT

|6

01010-61435

BOLT

7

01010-61440

BOLT

|7

01010-61440

BOLT

|7

01010-61435

BOLT

8

01643-31445

WASHER

|8

01643-31445

WASHER

9

20B-22-33550

SPINDLE

10

20B-22-32570

BUSHING

11

20B-22-32590

SEAL

12

20B-22-32730

RETAINER

13

07000-02080

O-RING

14

01010-51230

BOLT

15

20B-22-32780

SCAVENGER

|16

20B-22-32512

UNIVERSAL JOINT A.

|16

20B-22-32511

UNIVERSAL JOINT A.

|16

20B-22-32510

UNIVERSAL JOINT A.

16

20B-22-32532

SHAFT

|16

20B-22-32531

SHAFT

|16

20B-22-32530

SHAFT

17

20B-22-32522

SHAFT

|17

20B-22-32521

SHAFT

|17

20B-22-32520

SHAFT

18

20B-22-32691

SPIDER ASS'Y

|18

20B-22-32690

SPIDER ASS'Y

19

20G-22-22561

FITTING,GREASE

|19

20B-22-32560

FITTING,GREASE

20

20B-22-32551

RING

|20

20B-22-32550

RING

21

20B-22-33320

CLEVIS

22

20B-22-33340

CLEVIS

23

20B-22-33310

ROD,TIE

24

01583-02716

NUT

25

20B-22-33350

NUT

26

01010-31255

BOLT

27

01580-01210

NUT

28

01602-01236

WASHER,SPRING

29

20B-22-33331

PIN

30

07020-00000

FITTING,GREASE

31

01598-01415

NUT

32

01643-31445

WASHER

33

20B-22-33823

ARM ASS'Y

|33

20B-22-33822

ARM ASS'Y

|33

20B-22-33821

ARM ASS'Y

34

04022-16035

PIN

|34

04022-16045

PIN

35

07143-10303

BUSHING

36

07145-00030

SEAL

37

07020-00675

FITTING,GREASE
