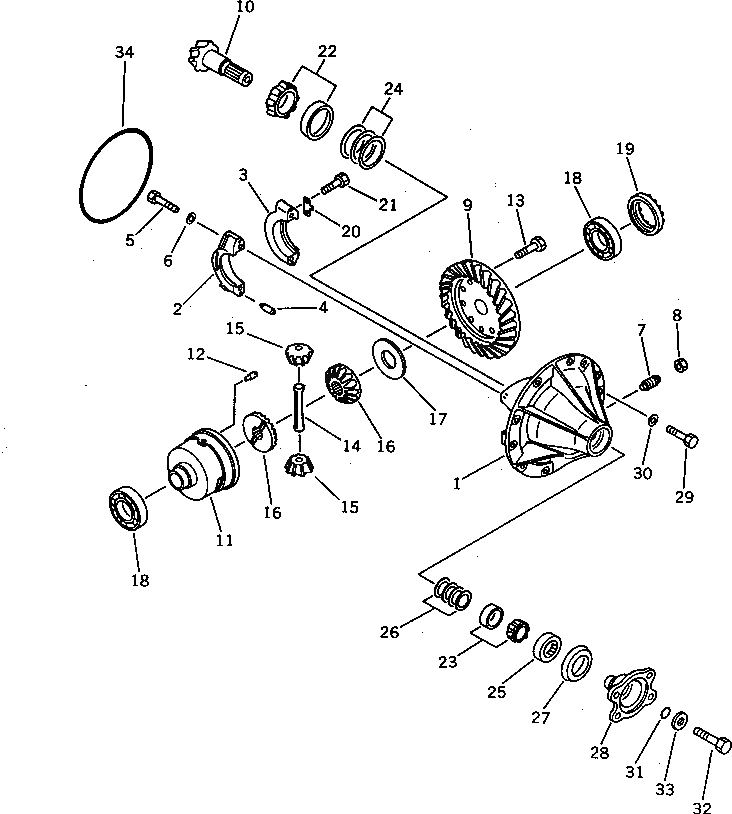

Запчасти Komatsu PW60-3 ПЕРЕДНИЙ ДИФФЕРЕНЦИАЛ МОСТ И КОЛЕСА

|1

20B-22-30003

FRONT AXLE ASS'Y

|1

20B-22-30002

FRONT AXLE ASS'Y

|1

20B-22-30001

FRONT AXLE ASS'Y

|1

20B-22-30000

FRONT AXLE ASS'Y

|1

20B-22-31100

CARRIER ASS'Y

1

CARRIER

2

CAP

3

CAP

4

PIN

5

01010-51265

BOLT

6

01643-31232

WASHER

7

20B-22-31710

SCREW,THRUST

8

01583-12012

NUT

|9

20B-22-31200

BEVEL GEAR ASS'Y

9

GEAR

10

PINION

11

20B-22-31151

CASE

12

20B-22-31460

SCREW

13

01010-51030

BOLT

14

20B-22-31420

SHAFT

15

20B-22-31410

PINION

16

20B-22-31430

GEAR,SIDE

17

415-22-11530

WASHER,THRUST

18

06030-06210

BEARING

19

20B-22-31160

RING

20

20B-22-31170

PLATE

21

01010-60610

BOLT

22

415-22-11811

BEARING

23

20B-22-31640

BEARING

24

20B-22-31310

SHIM¤ 0.10MM

|24

20B-22-31320

SHIM¤ 0.15MM

|24

20B-22-31330

SHIM¤ 0.20MM

25

07012-00042

SEAL,OIL

26

20B-22-31340

SHIM¤ 0.10MM

|26

20B-22-31370

SHIM¤ 0.13MM

|26

20B-22-31351

SHIM¤ 0.15MM

|26

20B-22-31350

SHIM¤ 0.15MM

|26

20B-22-31380

SHIM¤ 0.18MM

|26

20B-22-31361

SHIM¤ 0.20MM

|26

20B-22-31360

SHIM¤ 0.20MM

27

20B-22-31240

SLINGER

28

20B-22-31230

YOKE

29

01010-51230

BOLT

30

01643-31232

WASHER

31

07000-03025

O-RING

32

01010-61285

BOLT

33

415-22-11240

HOLDER

34

20B-22-31190

O-RING
