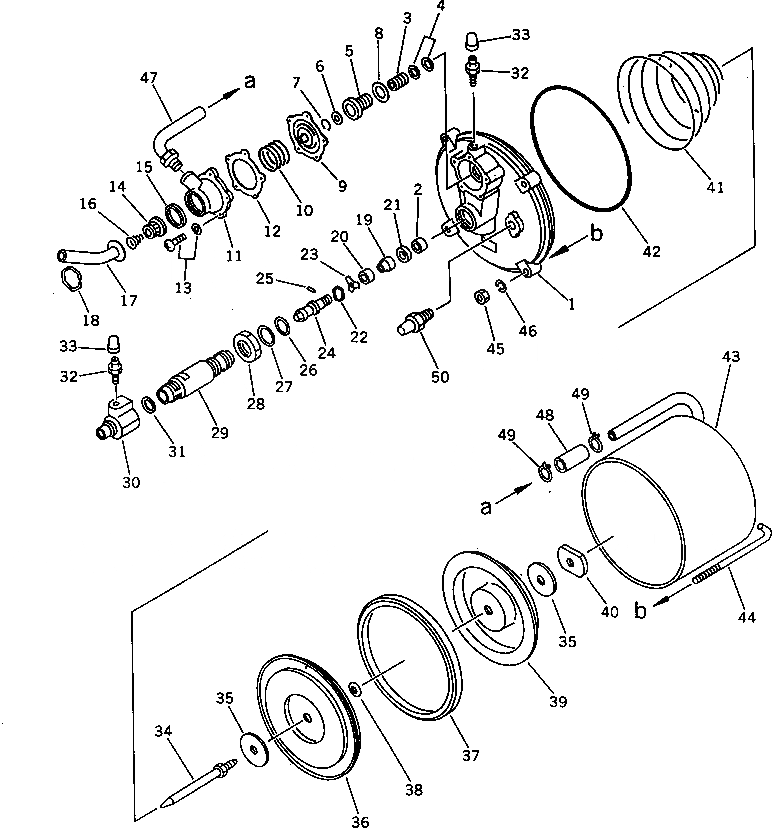

Запчасти Komatsu PW60-3 HYDRO-МАЧТАER УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

20B-43-33111

MASTER CYLINDER A.

1

JK204-10407

PLATE ASS'Y

2

JK1304-0037

SEAL (K1)

|3

JK203-10304

FITTING ASS'Y

|3

JK203-10201

PISTON ASS'Y

3

JK203-20100

PISTON

4

JK1310-0009

PACKING (K1)

5

JK203-20600

FITTING

6

JK201-20700

WASHER

7

JK1140-0002

RING

8

JK1184-0013

GASKET (K1)

9

JK203-12300

DIAPHRAGM (K1)

10

JK1412-0001

SPRING

11

JK202-22802

VALVE,BODY

12

JK201-31100

GASKET (K1)

13

JK0271-0416

SCREW

14

JK9320-4043

POPPET (K1)

15

JK1184-0007

GASKET (K1)

16

JK1411-0004

SPRING

17

JK202-11300

PIPE

18

JK1142-0003

RING

19

JK1310-0016

PACKING

20

JK201-21300

RETAINER

21

JK201-21600

WASHER

22

JK1142-0002

RING

23

JK204-21400

WASHER

24

JK203-12100

PISTON ASS'Y (K1)

25

JK1151-0003

PIN

26

JK1184-0006

GASKET (K1)

27

JK1184-0014

GASKET (K1)

28

JK1110-0026

NUT

29

JK203-25700

CYLINDER

30

JK203-25505

CAP

31

JK1180-0040

GASKET (K1)

32

JK1192-0001

PLUG

33

JK1271-0022

PROTECTOR

34

JK203-12700

ROD ASS'Y

35

JK203-29200

WASHER

36

JK204-29301

PLATE,PISTON

37

JK1313-0021

PACKING (K1)

38

JK1184-0003

GASKET (K1)

39

JK204-29601

PLATE,PISTON

40

JK201-30000

NUT

41

JK1414-0001

SPRING

42

JK1174-0116

O-RING (K1)

43

JK203-12512

SHELL ASS'Y

44

JK203-30700

BOLT

45

JK0141-1008

NUT

46

JK0303-1025

WASHER,SPRING

47

JK203-11403

ELBOW

48

JK1221-0001

HOSE (K1)

49

JK1224-0003

CLAMP

50

JK1207-0027

CONNECTOR
