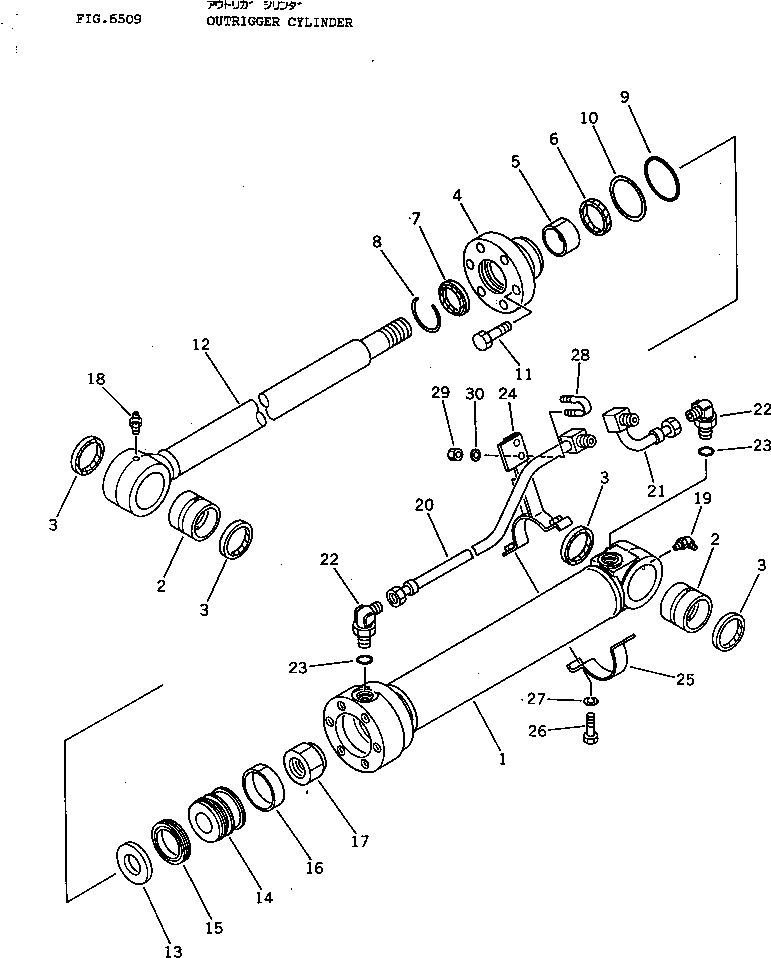

Запчасти Komatsu PW60-3 ЦИЛИНДР ОПОРЫ УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

20B-63-02020

CYLINDER ASS'Y

1

CYLINDER

2

07144-10505

BUSHING

3

07145-00050

SEAL,DUST

4

707-27-70010

HEAD,CYLINDER

5

07177-04530

BUSHING

6

707-51-45210

PACKING,ROD

7

112-63-15370

SEAL,DUST

8

07179-00064

RING,SNAP

9

07000-12070

O-RING

10

07001-02070

RING,BACK-UP

11

01010-51445

BOLT

12

20B-63-12720

ROD,PISTON

13

707-40-70310

WASHER

14

707-36-70381

PISTON

15

707-44-70080

RING,PISTON

16

07155-07020

RING,WEAR

17

07165-13336

NUT

18

07020-00000

FITTING,GREASE

19

07020-00000

FITTING,GREASE

20

20B-63-12770

TUBE,L.H.

|20

20B-63-12870

TUBE,R.H.

21

20B-63-12780

TUBE,L.H.

|21

20B-63-12880

TUBE,R.H.

22

07235-10315

ELBOW

23

07002-12034

O-RING

24

707-88-97890

BRACKET

25

707-88-97880

BAND

26

01010-51035

BOLT

27

01602-21030

WASHER,SPRING

28

07283-21529

CLIP

29

01598-00809

NUT

30

01643-30823

WASHER
