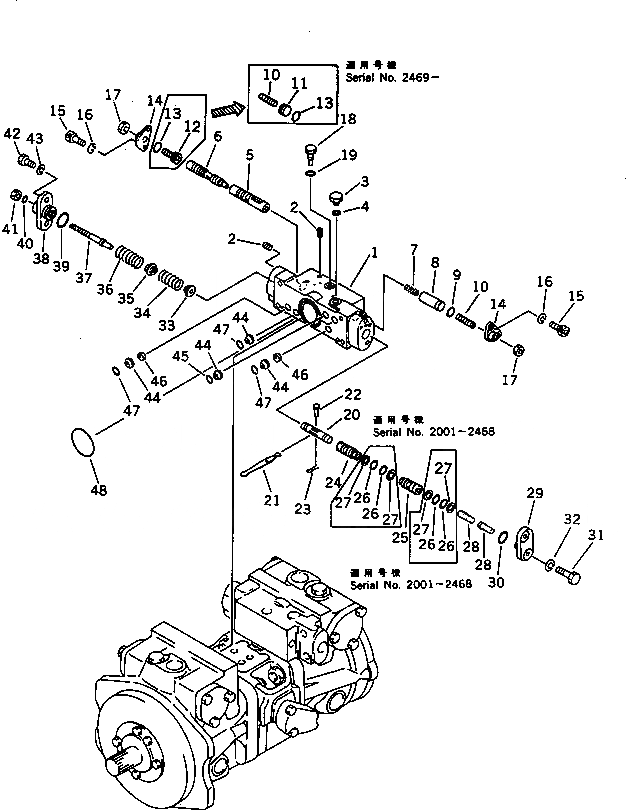

Запчасти Komatsu PW60-3 СЕРВОКЛАПАН¤ ПЕРЕДН. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-21-01073

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01072

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01071

PUMP ASS'Y,(HPV 35+35)

|1

708-21-01070

PUMP ASS'Y,(HPV 35+35)

|1

708-21-10801

PUMP ASS'Y,(HPV 35+35)

|1

708-21-07820

SERVO VALVE ASS'Y,FRONT

|1

708-21-15901

SERVO VALVE ASS'Y,FRONT

|1

708-23-07072

BODY ASS'Y

|1

708-23-07071

BODY ASS'Y

|1

708-23-07070

BODY ASS'Y

1

BODY

|1

708-23-15811

BODY

|1

BODY

2

PLUG

3

07040-10807

PLUG

4

07002-10823

O-RING

5

708-25-15180

SLEEVE

6

708-25-15280

SPOOL

7

708-25-15310

SPRING

8

708-25-15330

SPACER

9

07000-02012

O-RING

10

708-25-15340

SCREW

|10

708-25-15340

SCREW

11

708-25-15340

SCREW

12

708-25-15240

PLUG

13

07000-02012

O-RING

14

708-25-15250

COVER

15

708-25-15320

BOLT

16

01602-20619

WASHER,SPRING

17

01580-00806

NUT

18

708-25-15260

PLUG

19

07002-00823

O-RING

20

708-23-15820

PISTON

21

708-23-15910

ARM

22

04205-00514

PIN

23

04050-01210

PIN,COTTER

24

708-23-15921

SLEEVE

|24

708-23-15920

SLEEVE

25

708-23-15941

SLEEVE

|25

708-23-15940

SLEEVE

26

07000-12014

O-RING

27

07001-02014

RING,BACK-UP

28

708-23-15930

PISTON

29

708-21-19240

COVER

30

07000-02014

O-RING

31

01010-50825

BOLT

32

01602-20825

WASHER,SPRING

33

708-23-15830

SEAT

34

708-23-15840

SPRING

35

708-23-15850

SEAT

36

708-21-19221

SPRING

37

708-23-15870

ROD

38

708-21-19230

COVER

39

07000-02020

O-RING

40

07002-00823

O-RING

41

708-23-15890

NUT

42

01010-50820

BOLT

43

01602-20825

WASHER,SPRING

44

720-68-11920

FILTER

45

07000-12010

O-RING

46

708-21-19150

ORIFICE

47

07000-02010

O-RING

48

07000-03048

O-RING
