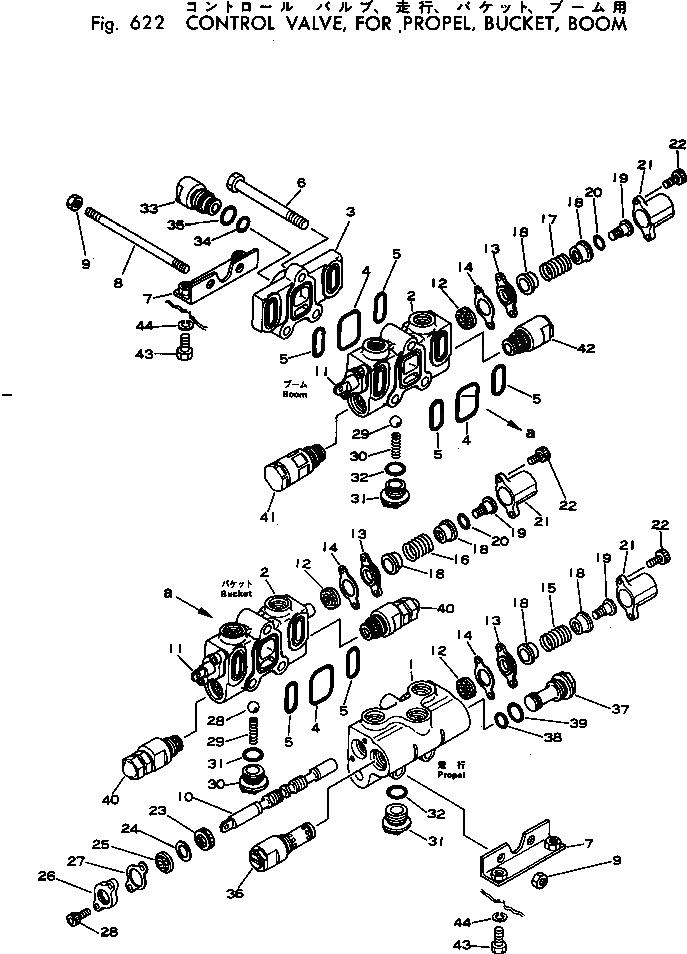

Запчасти Komatsu PW60-1 УПРАВЛЯЮЩ. КЛАПАН¤ ДЛЯ ХОД¤ КОВШ¤ СТРЕЛА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-23-16000

VALVE ASS'Y

1

BODY

2

BLOCK

3

COVER

4

07000-13040

O-RING

5

700-22-11450

O-RING

6

700-23-12120

BOLT

7

700-26-11170

ANGLE

8

700-23-12110

STUD

9

01580-00806

NUT

10

SPOOL

11

SPOOL

12

700-22-11251

U-PACKING

13

700-22-11281

PLATE

14

700-22-11420

GASKET

15

700-24-13210

SPRING

16

700-22-11311

SPRING

17

700-23-13130

SPRING

18

700-22-11290

RETAINER

19

700-22-11320

PLUG

20

07000-11006

O-RING

21

700-22-11331

COVER

22

01252-30616

BOLT

23

700-22-11251

U-PACKING

24

700-22-11430

COLLAR

25

700-22-11261

SEAL

26

700-22-11270

PLATE

27

700-22-11420

GASKET

28

01252-30616

BOLT

29

700-22-12340

BALL

30

700-22-12350

SPRING

31

700-22-11351

PLUG

32

07002-12434

O-RING

33

700-22-11390

NIPPLE

34

700-22-11410

O-RING

35

07002-02434

O-RING

36

700-20-55000

VALVE ASS'Y,MAIN RELIEF

37

700-22-11380

PLUG

38

07000-12014

O-RING

39

07002-02434

O-RING

40

700-20-67000

VALVE ASS'Y

41

700-20-66000

VALVE ASS'Y

42

700-20-68000

VALVE ASS'Y

43

01010-30820

BOLT

44

01602-00825

WASHER
