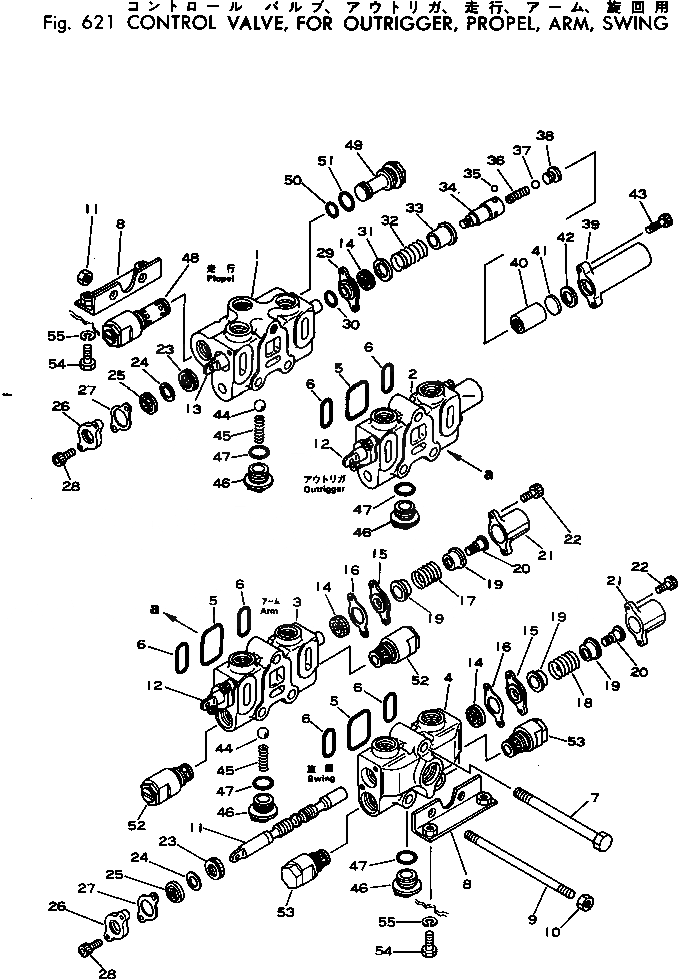

Запчасти Komatsu PW60-1 УПРАВЛЯЮЩ. КЛАПАН¤ ДЛЯ ОПОР¤ ХОД¤ РУКОЯТЬ¤ ПОВОРОТН. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-24-17000

VALVE ASS'Y

1

BODY

2

BLOCK

3

BLOCK

4

700-22-11150

COVER

5

07000-13040

O-RING

6

700-22-11450

O-RING

7

700-24-13140

BOLT

8

700-26-11170

ANGLE

9

700-24-13110

STUD

10

01580-00806

NUT

11

SPOOL

12

SPOOL

13

SPOOL

14

700-22-11251

U-PACKING

15

700-22-11281

PLATE

16

700-22-11420

GASKET

17

700-22-11831

SPRING

18

700-23-13130

SPRING

19

700-22-11290

RETAINER

20

700-22-11320

PLUG

21

700-22-11331

COVER

22

01252-30616

BOLT

23

700-22-11251

U-PACKING

24

700-22-11430

COLLAR

25

700-22-11261

SEAL

26

700-22-11270

PLATE

27

700-22-11420

GASKET

28

01252-30616

BOLT

29

700-21-11140

PLATE

30

07000-02018

O-RING

31

700-21-11150

PLATE

32

700-21-11160

SPRING

33

700-21-11170

RETAINER

34

700-21-11181

PLUG

35

700-84-11730

BALL

36

700-21-11190

SPRING

37

700-82-11340

BALL

38

700-21-11210

PLUG

39

700-21-11230

CASE

40

700-21-11221

DETENT

41

700-22-11590

PLATE

42

700-22-11610

RING

43

01252-30625

BOLT

44

700-22-12340

BALL

45

700-22-12350

SPRING

46

700-22-11351

PLUG

47

07002-12434

O-RING

48

700-20-55000

VALVE ASS'Y,MAIN RELIEF

49

700-26-11150

PLUG

50

07000-12014

O-RING

51

07002-02434

O-RING

52

700-20-68000

VALVE ASS'Y

53

700-20-61002

VALVE ASS'Y,SUCTION

54

01010-30820

BOLT

55

01602-00825

WASHER
