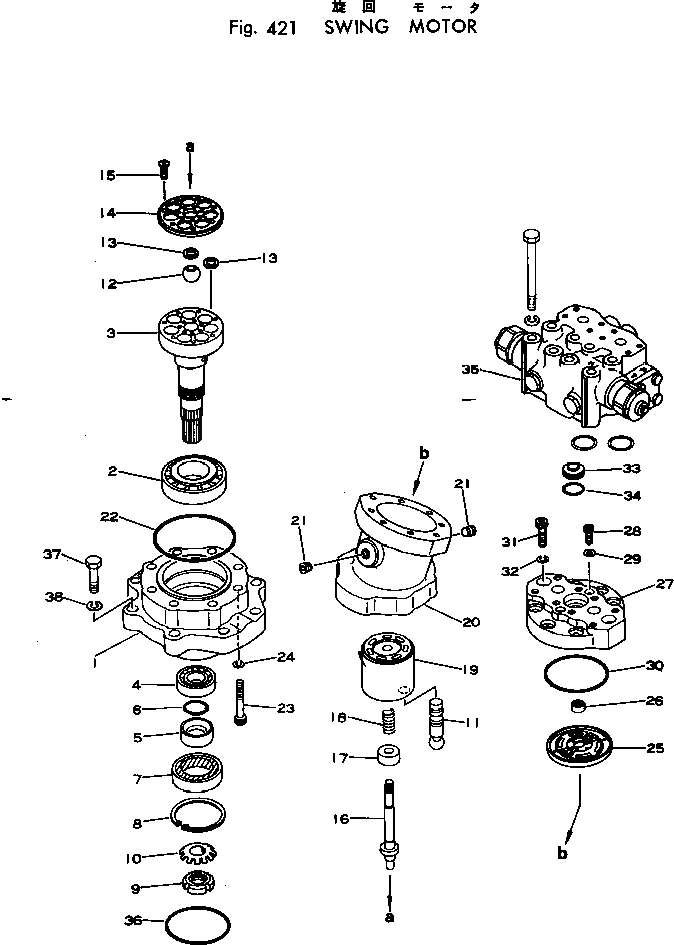

Запчасти Komatsu PW60-1 МОТОР ПОВОРОТА ШАССИ И ПОВОРОТН. СИСТЕМА

|$0

706-73-04700

SWING MOTOR ASS'Y

|$1

706-73-43002

MOTOR ASS'Y,(KMF040)

1

COVER

2

BEARING (KIT)

3

SHAFT (KIT)

4

BEARING

5

RING

6

O-RING (KIT)

7

SEAL (KIT)

8

RING

9

NUT

10

WASHER (KIT)

11

PISTON ASS'Y (KIT)

12

BALL (KIT)

13

HOLDER (KIT)

14

RETAINER (KIT)

15

SCREW (KIT)

16

SHAFT (KIT)

17

RING (KIT)

18

SPRING (KIT)

19

BLOCK (KIT)

20

CASE

21

706-73-40360

PLUG

22

O-RING (KIT)

23

BOLT

24

WASHER

25

PLATE

26

BEARING

27

COVER

28

BOLT (KIT)

29

GASKET (KIT)

30

O-RING (KIT)

31

BOLT

32

WASHER

33

706-73-40830

CAP

34

07000-03028

O-RING

35

706-73-71300

BRAKE VALVE ASS'Y

36

07000-02085

O-RING

37

01010-31245

BOLT

38

01602-01236

WASHER

2

706-98-00011

DRIVE SHAFT KIT

2

BEARING

3

SHAFT

6

07000-03030

O-RING

7

SEAL

10

01658-23018

WASHER

11

PISTON ASS'Y

12

BALL

13

HOLDER

14

RETAINER

15

SCREW

16

SHAFT

17

RING

18

SPRING

19

BLOCK

22

07000-02105

O-RING

28

BOLT

29

07005-00612

GASKET

30

07000-02085

O-RING
