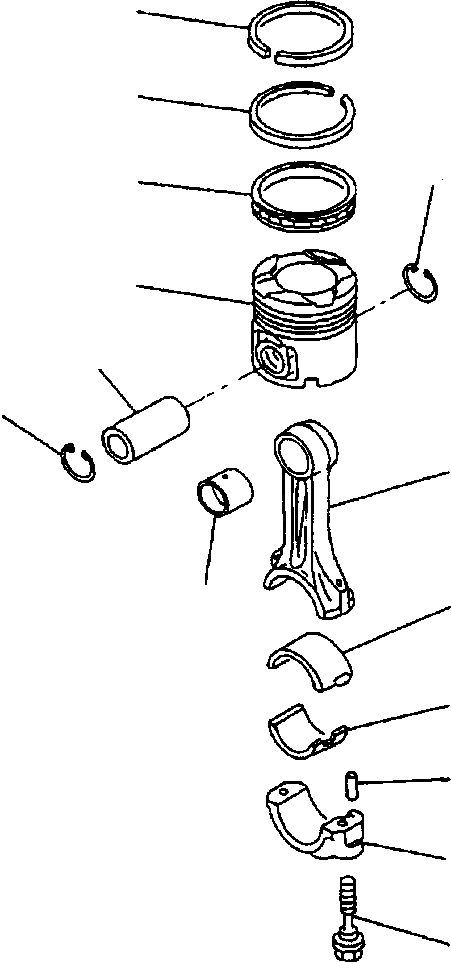

Запчасти Komatsu PW400MH-6 FIG. A-AC ПОРШЕНЬ И ШАТУН ДВИГАТЕЛЬ

1

6152-32-2510

PISTON

2

6151-31-2410

PIN

3

04065-04818

RING, SNAP

|$3

6150-32-2030

PISTON RING ASSEMBLY

4

NSS

RING, TOP

5

NSS

RING, SECOND

6

NSS

RING, OIL

|$7

6151-31-3101

CONNECTING ROD ASSEMBLY

7

NSS

ROD, CONNECTING

8

NSS

CAP

9

6150-31-3130

BUSHING

10

6150-31-3310

BOLT

11

02400-10413

PIN

|$13

6151-31-3040

BEARING, CONNECTING ROD (STANDARD)

12

NSS

BEARING HALF, UPPER

13

NSS

BEARING HALF, LOWER

|$16

6151-39-3040

BEARING, CONNECTING ROD (0.25MM UNDER)

12

NSS

BEARING HALF, UPPER

13

NSS

BEARING HALF, LOWER

|$19

6151-38-3040

BEARING, CONNECTING ROD (0.50MM UNDER)

12

NSS

BEARING HALF, UPPER

13

NSS

BEARING HALF, LOWER

|$22

6151-37-3040

BEARING, CONNECTING ROD (0.75MM UNDER)

12

NSS

BEARING HALF, UPPER

13

NSS

BEARING HALF, LOWER

|$25

6151-36-3040

BEARING, CONNECTING ROD (1.00MM UNDER)

12

NSS

BEARING HALF, (UPPER)

13

NSS

BEARING HALR, (LOWER)
