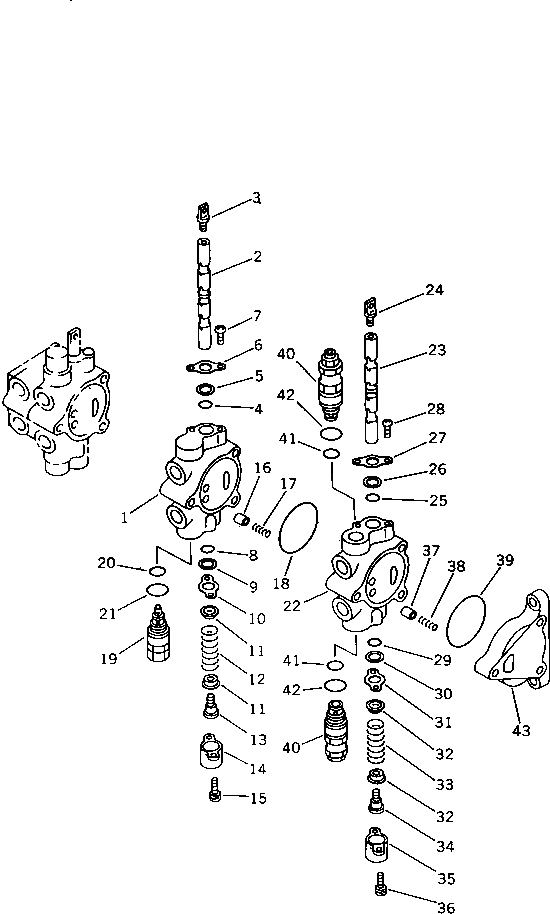

Запчасти Komatsu PW30T-1 УПРАВЛЯЮЩ. КЛАПАН¤ ПЕРЕДН. ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
21E-60-12210
VALVE ASS'Y,FRONT R.H.
|1
KB21013-21514
SPOOL SECTION ASS'Y
1
HOUSING
2
SPOOL
3
KB21011-22253
HEAD
4
KB95111-01200
O-RING (K3)
5
KB21011-22151
WIPER (K3)
6
KB21011-21152
SEAL
7
KB91311-50102
SCREW
8
KB95111-01200
O-RING (K3)
9
KB21011-22151
WIPER (K3)
10
KB21011-21152
SEAL
11
KB21011-21251
SEAT,SPRING
12
KB21011-22451
SPRING
13
KB21011-22351
SCREW
14
KB21011-21851
CAP
15
KB92702-05121
BOLT
16
KB21011-21052
VALVE,CHECK
17
KB21011-22452
SPRING
18
KB95121-05500
O-RING (K3)
19
KB21013-20901
RELIEF VALVE ASS'Y
20
KB95113-01400
O-RING (K4)
21
KB95113-01800
O-RING (K4)
|22
KB21013-21515
SPOOL SECTION ASS'Y
22
HOUSING
23
SPOOL
24
KB21011-22253
HEAD
25
KB95111-01200
O-RING (K3)
26
KB21011-22151
WIPER (K3)
27
KB21011-21152
SEAL
28
KB91311-50102
SCREW
29
KB95111-01200
O-RING (K3)
30
KB21011-22151
WIPER (K3)
31
KB21011-21152
SEAL
32
KB21011-21251
SEAT,SPRING
33
KB21011-22451
SPRING
34
KB21011-22351
SCREW
35
KB21011-21851
CAP
36
KB92702-05121
BOLT
37
KB21011-21052
VALVE,CHECK
38
KB21011-22452
SPRING
39
KB95121-05500
O-RING (K3)
40
KB21013-20905
RELIEF VALVE ASS'Y
41
KB95113-01400
O-RING (K4)
42
KB95113-01800
O-RING (K4)
43
KB21011-20351
OUTLET SECTION
Выбрано товаров: 46
