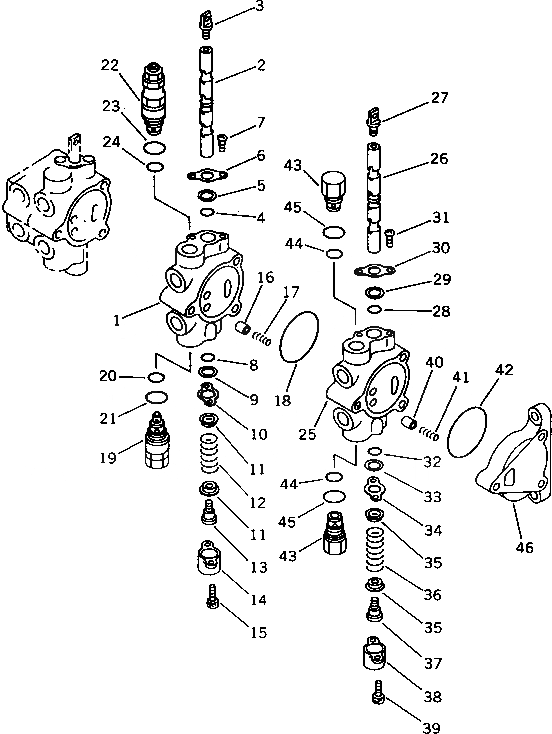

Запчасти Komatsu PW30T-1 УПРАВЛЯЮЩ. КЛАПАН¤ ПЕРЕДН. ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
21E-60-12220
VALVE ASS'Y,FRONT L.H.
|1
KB21013-21517
SPOOL SECTION ASS'Y
1
HOUSING
2
SPOOL
3
KB21011-22253
HEAD
4
KB95111-01200
O-RING (K3)
5
KB21011-22151
WIPER (K3)
6
KB21011-21152
SEAL
7
KB91311-50102
SCREW
8
KB95111-01200
O-RING (K3)
9
KB21011-22151
WIPER (K3)
10
KB21011-21152
SEAL
11
KB21011-21251
SEAT,SPRING
12
KB21011-22451
SPRING
13
KB21011-22351
SCREW
14
KB21011-21851
CAP
15
KB92702-05121
BOLT
16
KB21011-21052
VALVE,CHECK
17
KB21011-22452
SPRING
18
KB95121-05500
O-RING (K3)
19
KB21013-20901
RELIEF VALVE ASS'Y
20
KB95113-01400
O-RING (K4)
21
KB95113-01800
O-RING (K4)
22
KB21013-20905
RELIEF VALVE ASS'Y
23
KB95113-01800
O-RING (K4)
24
KB95113-01400
O-RING (K4)
|25
KB21013-21520
SPOOL SECTION ASS'Y
25
HOUSING
26
SPOOL
27
KB21011-22253
HEAD
28
KB95111-01200
O-RING (K3)
29
KB21011-22151
WIPER (K3)
30
KB21011-21152
SEAL
31
KB91311-50102
SCREW
32
KB95111-01200
O-RING (K3)
33
KB21011-22151
WIPER (K3)
34
KB21011-21152
SEAL
35
KB21011-21251
SEAT,SPRING
36
KB21011-22451
SPRING
37
KB21011-22351
SCREW
38
KB21011-21851
CAP
39
KB92702-05121
BOLT
40
KB21011-21052
VALVE,CHECK
41
KB21011-22452
SPRING
42
KB95121-05500
O-RING (K3)
43
KB21013-20903
SUCTION VALVE ASS'Y
44
KB95113-01400
O-RING (K4)
45
KB95113-01800
O-RING (K4)
46
KB21011-20351
OUTLET SECTION
Выбрано товаров: 49
