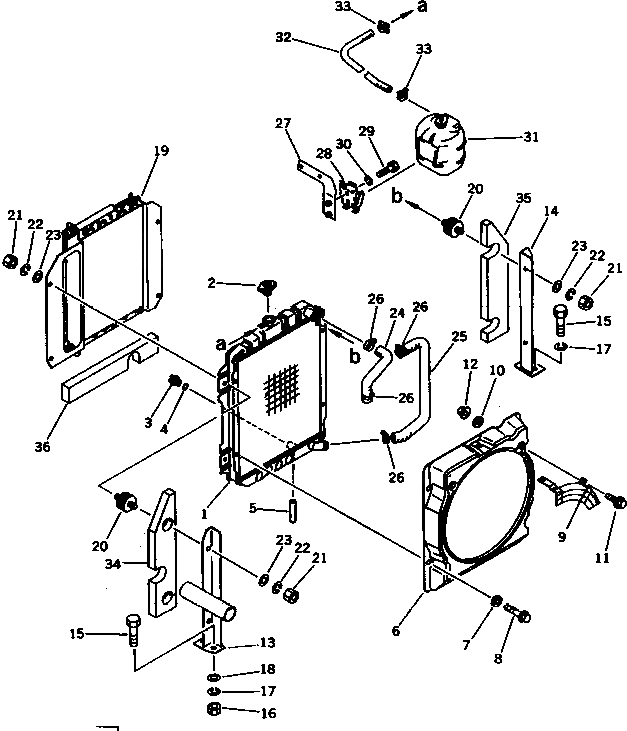

Запчасти Komatsu PW30T-1 РАДИАТОР И ТРУБЫ(№7-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-03-11212

CORE ASS'Y

2

20S-03-11250

CAP

3

20N-03-11181

PLUG

4

07000-01007

O-RING

5

07270-00820

TUBE

6

20S-03-71120

SHROUD

|6

20S-03-21110

SHROUD

7

20S-03-11270

COLLAR

8

01435-20814

BOLT

9

20S-03-21121

NET

10

20S-03-11270

COLLAR

11

01435-20814

BOLT

12

01584-00806

NUT

13

21E-03-11120

BRACKET,L.H.

14

20S-03-21150

BRACKET,R.H.

15

01010-51025

BOLT

16

01580-11008

NUT

17

01602-21030

WASHER,SPRING

18

01643-31032

WASHER

19

21E-03-11210

COOLER,OIL

20

20S-03-11331

CUSHION

21

01580-11008

NUT

22

01602-21030

WASHER,SPRING

23

01643-31032

WASHER

24

20S-03-12121

HOSE

25

20S-03-12111

HOSE

26

207-09-11110

CLAMP

|26

07281-00489

CLAMP

27

21E-03-11220

BRACKET

28

362-03-14120

BRACKET

29

01010-50616

BOLT

30

01602-20619

WASHER,SPRING

31

362-03-14110

TANK

|31

362-03-31160

CAP

32

21E-03-11250

HOSE

|32

21K-03-12660

HOSE

33

07281-00137

CLAMP

34

21E-03-11231

SEAT

|34

21E-03-11230

SEAT

35

21E-03-11260

SEAT

|35

20S-03-21160

SEAT

36

21E-03-11240

SEAT
