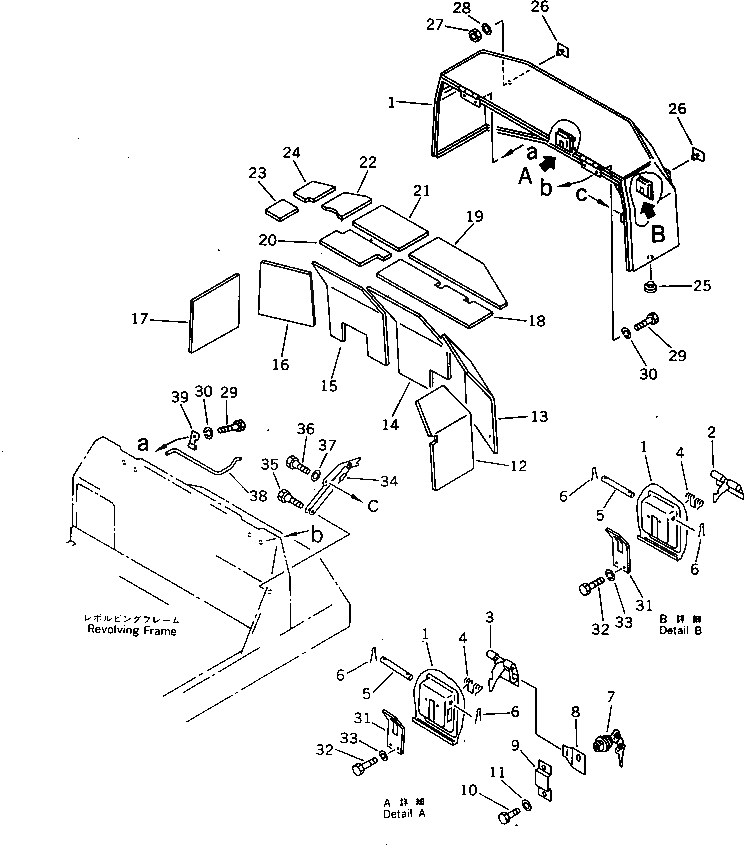

Запчасти Komatsu PW30T-1 КАБИНА (С ЗАЩИТА ОТ ВАНДАЛИЗМА) ЧАСТИ КОРПУСА

|1

21E-54-00050

HOOD ASS'Y

1

21E-54-11910

HOOD

2

20S-54-21450

LEVER

3

20S-54-25130

LEVER

4

20T-54-26430

SPRING

5

20S-54-21460

PIN

6

04050-13018

PIN,COTTER

7

20N-54-41830

LOCK ASS'Y

8

20R-54-23240

PLATE

9

20T-54-28130

COVER

10

01010-50812

BOLT

11

01643-30823

WASHER

12

20S-54-21210

SHEET

13

20S-54-21220

SHEET

14

20S-54-21430

SHEET

15

20S-54-25120

SHEET

16

20S-54-21250

SHEET

17

21E-54-11290

SHEET

18

21E-54-11440

SHEET

19

21E-54-11390

SHEET

20

21E-54-11380

SHEET

21

21E-54-11410

SHEET

22

21E-54-11370

SHEET

23

21E-54-11430

SHEET

24

21E-54-11420

SHEET

25

203-54-32260

STOPPER

26

362-54-15160

REFLECTOR

27

01580-10605

NUT

28

01643-30623

WASHER

29

01010-51020

BOLT

30

01602-21030

WASHER,SPRING

31

20R-54-21170

LOCK

32

01010-51025

BOLT

33

01602-21030

WASHER,SPRING

34

20R-54-21430

STAY

35

20R-54-21440

BOLT

36

20R-54-21450

BOLT

37

07005-01412

GASKET

38

20S-54-21142

BAR,TORSION

39

20S-54-21170

CLIP
