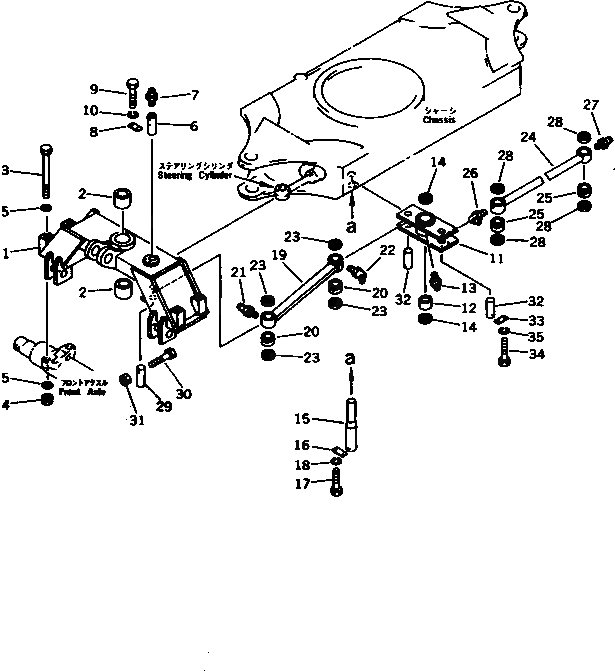

Запчасти Komatsu PW30T-1 ШАССИ (/) СИСТЕМА УПРАВЛЕНИЯ¤ ОСНОВНАЯ РАМА И ШАССИ

|1

21E-47-00010

FRAME ASS'Y,FRONT

1

FRAME

2

07143-10606

BUSHING

3

01011-52485

BOLT

4

01598-02425

NUT

5

01643-22460

WASHER

6

362-46-12210

PIN

7

07020-00000

FITTING,GREASE

8

113-70-21280

LOCK

9

01010-51020

BOLT

10

01602-21030

WASHER,SPRING

|11

21E-47-00020

LEVER ASS'Y

11

LEVER

12

416-70-11810

BUSHING

13

07020-00000

FITTING,GREASE

14

07145-00050

SEAL,DUST

15

21E-47-11210

SHAFT

16

113-70-21280

LOCK

17

01010-51020

BOLT

18

01602-21030

WASHER,SPRING

|19

21E-47-00030

ROD ASS'Y

19

ROD

20

07144-10304

BUSHING

21

07020-00000

FITTING,GREASE

22

07020-00675

FITTING,GREASE

23

07145-00035

SEAL,DUST

|24

21E-47-00040

ROD ASS'Y

24

ROD

25

07144-10304

BUSHING

26

07020-00900

FITTING,GREASE

27

07020-00000

FITTING,GREASE

28

07145-00035

SEAL,DUST

29

21E-47-11280

PIN

30

01010-51075

BOLT

31

01598-01011

NUT

32

21E-47-11270

PIN

33

113-70-21280

LOCK

34

01010-51020

BOLT

35

01602-21030

WASHER,SPRING
