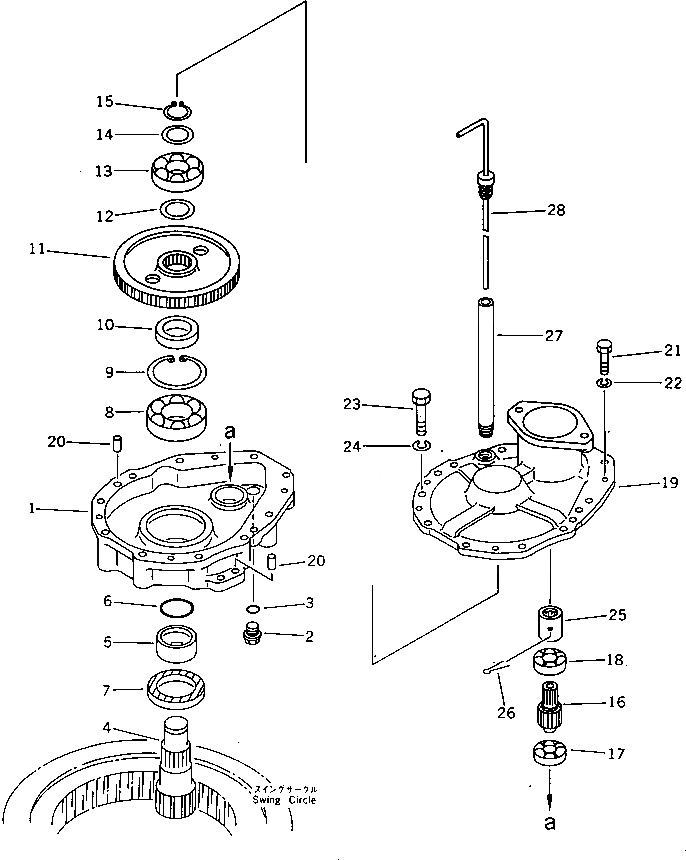

Запчасти Komatsu PW30T-1 МЕХАНИЗМ ПОВОРОТА ПЕРЕДАЧА¤ МОСТ И ПОВОРОТН.

1

20S-26-11150

CASE,LOWER

2

07044-12412

PLUG

3

07002-02434

O-RING

4

20S-26-11111

SHAFT

5

20R-26-11330

COLLAR

6

07000-02055

O-RING

7

07012-00070

SEAL,OIL

8

06030-22211

BEARING,ROLLER

9

04065-01030

RING,SNAP

10

20R-26-11340

COLLAR

11

20S-26-11120

GEAR

12

20S-26-11170

COLLAR

13

06044-00308

BEARING,ROLLER

14

20R-26-11360

COLLAR

15

04064-04018

RING,SNAP

16

20S-26-11130

SHAFT

17

06040-06304

BEARING,BALL

18

06044-00205

BEARING,ROLLER

19

21E-26-11110

CASE,UPPER

20

04020-01434

PIN,DOWEL

21

01010-51035

BOLT

22

01602-21030

WASHER,SPRING

23

01011-51200

BOLT

24

01602-21236

WASHER,SPRING

25

21E-26-11210

COUPLING

26

04050-15050

PIN,COTTER

27

20S-26-11180

FILLER

28

20S-26-11190

GAUGE,OIL LEVEL (FOR JAPAN)

|28

21F-26-11110

GAUGE,OIL LEVEL (EXCEPT JAPAN)
