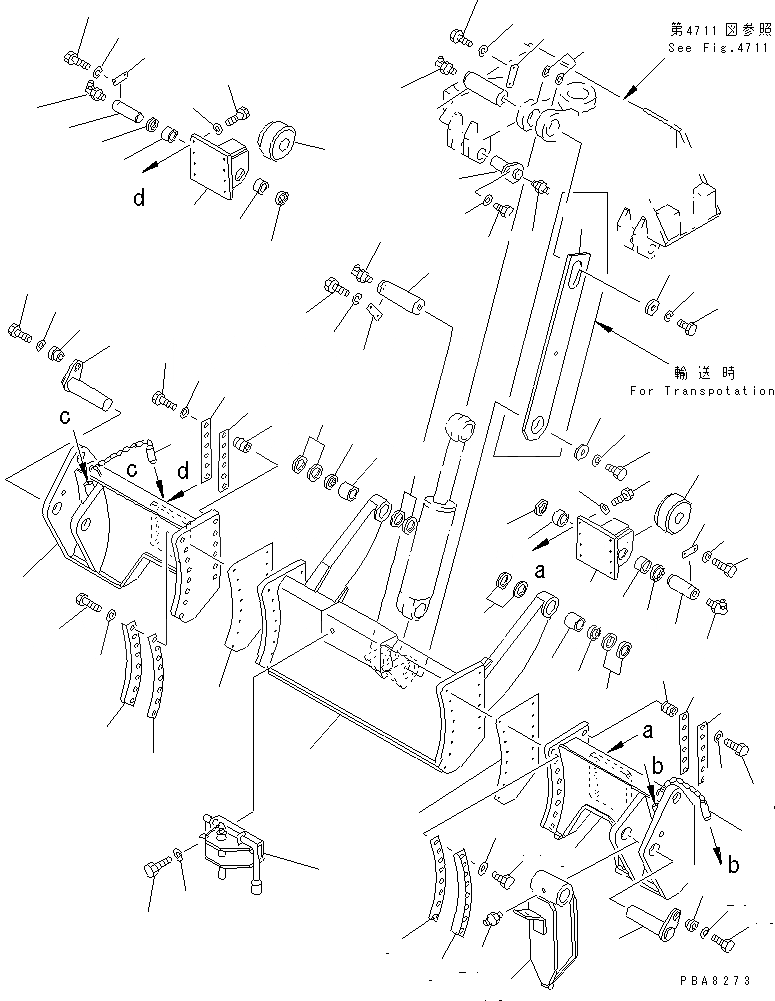

Запчасти Komatsu PW30T-1 ОТВАЛ(№8-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

21F-914-0021

BLADE ASS'Y

1

BLADE

2

07143-10304

BUSHING

3

21F-914-1740

BRACKET,L.H. (FOR BROAD GAUGE)

|3

21F-914-1721

BRACKET,L.H. (FOR NARROW GAUGE)

4

20T-914-4810

PIN (WELDED)

5

21F-914-1750

BRACKET,R.H. (FOR BROAD GAUGE)

|5

21F-914-1731

BRACKET,R.H. (FOR NARROW GAUGE)

6

20T-914-4810

PIN (WELDED)

7

21F-914-1862

PLATE

8

21F-914-1821

PLATE

9

21F-914-1840

PLATE,L.H.

10

21F-914-1850

PLATE,R.H.

11

21F-914-1871

BOSS

12

21F-914-1811

PLATE

13

21F-914-1830

PLATE

14

01010-51270

BOLT

14A

01010-51265

BOLT

15

01643-31232

WASHER

16

21F-914-1781

BRACKET

17

21X-70-11350

PIN

18

20T-70-41160

SPACER

19

01010-51640

BOLT

20

01643-31645

WASHER

21

07020-00000

FITTING,GREASE

22

21F-914-1760

BRACKET

23

01010-51230

BOLT,(FOR BROAD GAUGE)

|23

01010-51220

BOLT,(FOR NARROW GAUGE)

24

01643-31032

WASHER,(FOR BROAD GAUGE)

|24

01643-31032

WASHER,(FOR NARROW GAUGE)

25

21F-914-1770

ROLLER

26

07143-10302

BUSHING

27

07145-00030

SEAL

28

20D-27-11111

PIN

29

04082-00110

LOCK

30

01010-51020

BOLT

31

01643-31032

WASHER

32

07020-00900

FITTING,GREASE

33

07145-00035

SEAL

34

20S-71-11250

SPACER¤ 2.3MM

|34

20R-70-11270

SPACER¤ 1.0MM

35

21E-71-11240

PIN

36

01010-51225

BOLT

37

01643-31232

WASHER

38

07020-00900

FITTING,GREASE

39

201-70-23140

SPACER¤ 1.0MM

40

21E-71-11211

PIN

41

21E-71-11220

PLATE

42

01010-51020

BOLT

43

01602-21030

WASHER,SPRING

44

113-70-21280

LOCK

45

01010-51025

BOLT

46

01602-21030

WASHER,SPRING

47

07020-00900

FITTING,GREASE

48

21F-914-1630

PLATE,(FOR TRANSPOTATION)

49

20T-914-7910

DRAWBAR ASS'Y

50

01010-52055

BOLT

51

01643-32060

WASHER
